About Product
The KOLMB LMF-KC Series Linear Motion Ball Bearing is a high-performance bearing element designed for translating motion, providing precision and reliability in linear guidance systems. As an essential component in modern machinery, the LMF-KC series enables unlimited backward and forward linear movement with minimal frictional resistance.

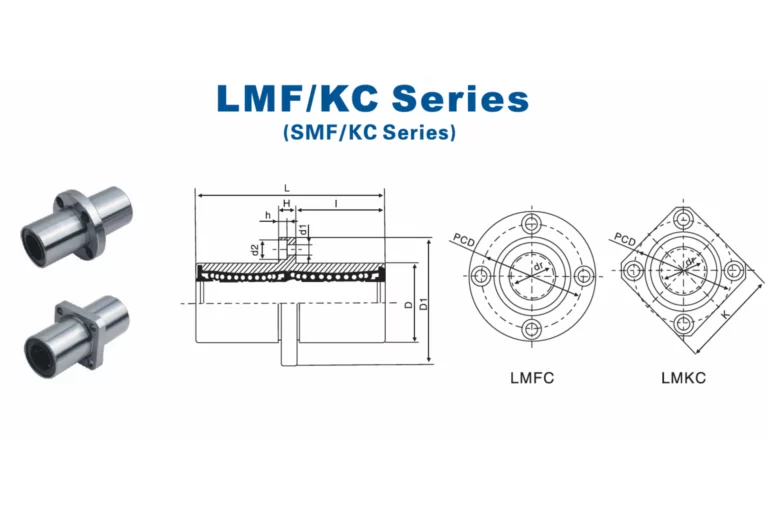

Description of the dimensions 1
| Part No. | Seal Type | Ball Circuit | dr (mm) | D (mm) | L (mm) | I (mm) | D1 (mm) | K (mm) | H (mm) | PCD (mm) | d_1 x d_2 x h (mm) | Eccentricity | Basic Load Rating C N | Basic Load Rating Co N | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LMFC6UU | LMKC6UU | 4 | 6 | 12 | 35 | 15 | 28 | 22 | 5 | 20 | 3.5x6x3.1 | 15 | 323 | 529 | 31 |
| LMFC8UU | LMKC8UU | 4 | 8 | 15 | 45 | 20 | 32 | 25 | 5 | 24 | 3.5x6x3.1 | 431 | 784 | 51 | |
| *LMFC10UU | *LMKC10UU | 4 | 10 | 19 | 55 | 24.5 | 40 | 30 | 6 | 29 | 4.5×7.5×4.1 | 588 | 1100 | 98 | |
| *LMFC12UU | *LMKC12UU | 4 | 12 | 21 | 57 | 25.5 | 42 | 32 | 6 | 32 | 4.5×7.5×4.1 | 813 | 1570 | 110 | |
| LMFC13UU | LMKC13UU | 4 | 13 | 23 | 61 | 27.5 | 43 | 34 | 6 | 33 | 4.5×7.5×4.1 | 813 | 1570 | 130 | |
| LMFC16UU | LMKC16UU | 5 | 16 | 28 | 70 | 32 | 48 | 37 | 6 | 38 | 4.5×7.5×4.1 | 1230 | 2350 | 190 | |
| *LMFC20UU | *LMKC20UU | 5 | 20 | 32 | 80 | 36 | 54 | 42 | 8 | 43 | 5.5x9x5.1 | 20 | 1400 | 2740 | 260 |
| *LMFC25UU | *LMKC25UU | 6 | 25 | 40 | 112 | 52 | 62 | 50 | 8 | 51 | 5.5x9x5.1 | 1560 | 3140 | 540 | |
| *LMFC30UU | *LMKC30UU | 6 | 30 | 45 | 123 | 56.5 | 74 | 58 | 10 | 60 | 6.6x11x6.1 | 2490 | 5490 | 680 | |
| LMFC35UU | LMKC35UU | 6 | 35 | 52 | 135 | 62.5 | 82 | 64 | 10 | 67 | 6.6x11x6.1 | 25 | 2650 | 6270 | 1020 |
| *LMFC40UU | *LMKC40UU | 6 | 40 | 60 | 151 | 69 | 96 | 75 | 13 | 78 | 9x14x8.1 | 3430 | 8040 | 1570 | |
| LMFC50UU | LMKC50UU | 6 | 50 | 80 | 192 | 89.5 | 116 | 92 | 13 | 98 | 9x14x8.1 | 6080 | 15900 | 3600 | |
| LMFC60UU | LMKC60UU | 6 | 60 | 90 | 209 | 95.5 | 134 | 106 | 18 | 112 | 11x17x11.1 | 30 | 7550 | 20000 | 4500 |
