Description

About Product

The NAX Series specifically uses a Caged Needle Roller Bearing for the radial component and a Thrust Ball Bearing for the axial component. This design allows the bearing to simultaneously withstand heavy radial loads and moderate axial loads.
Get a Quote

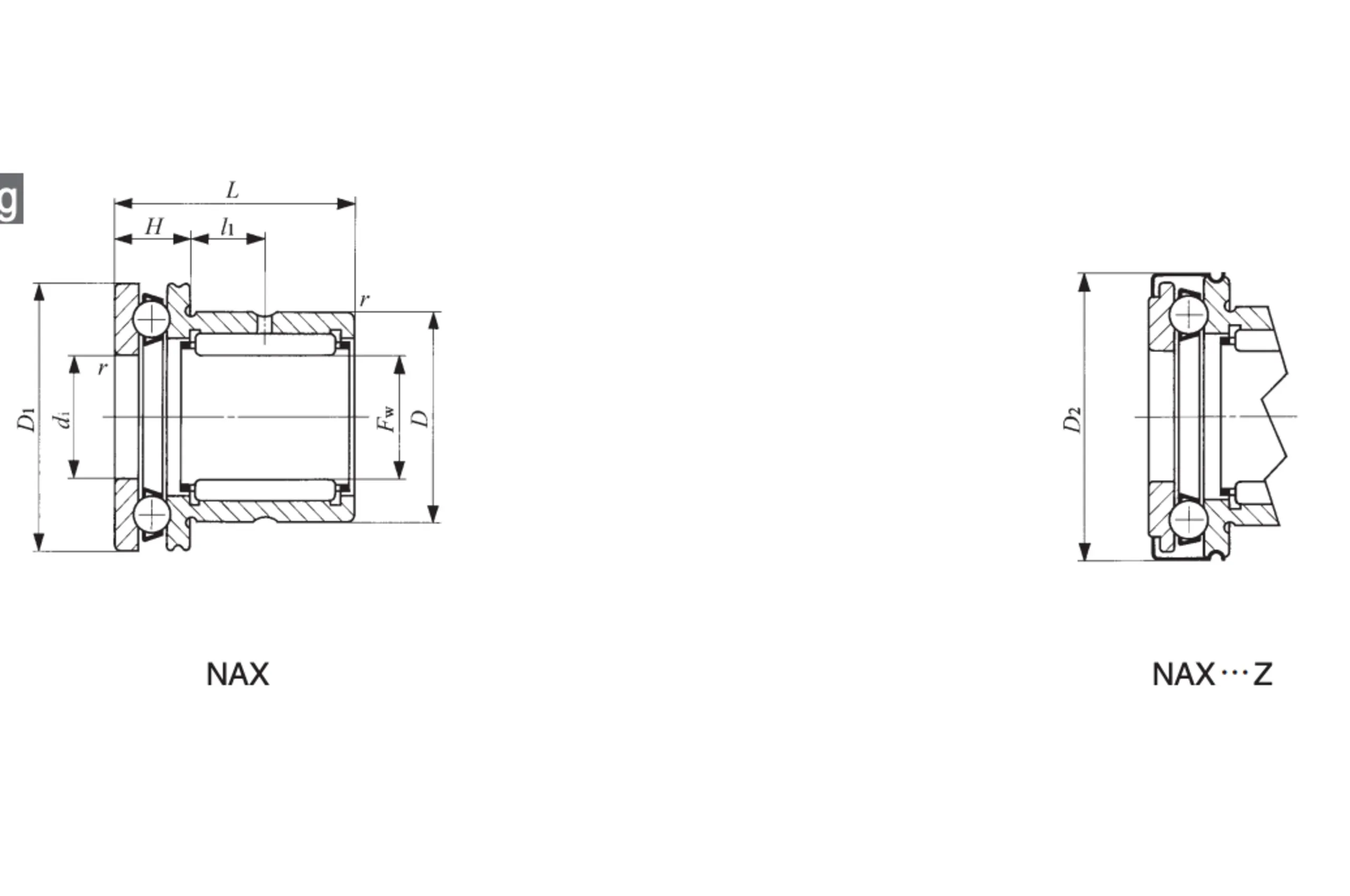

Shaft dia. (mm) NAX Model NAX Model with Dust Cover Mass (g) Fw D D1 D2 L H l1 rs min di da min C Radial C Axial C₀ Radial C₀ Axial Speed (min⁻¹)
10 NAX 1023 NAX 1023Z — 10 19 24 25 23 9 6.5 0.3 10 18 8230 10000 9190 11100 9500
12 NAX 1223 NAX 1223Z — 12 21 26 27 23 9 6.5 0.3 12 20 9250 9670 11200 11100 9000
15 NAX 1523 NAX 1523Z 55 15 24 28 29 23 9 6.5 0.3 15 23 12300 9930 14900 12000 8500
17 NAX 1725 NAX 1725Z 63 17 26 30 31 25 9 8 0.3 17 28 12900 11400 16300 28600 13000
20 NAX 2030 NAX 2030Z 97.5 20 30 35 36 30 10 10.5 0.3 20 29 17600 15000 25400 48700 11000
25 NAX 2530 NAX 2530Z 147 25 37 42 43 30 11 9.5 0.6 25 35 20000 22700 32100 60700 9000
30 NAX 3030 NAX 3030Z 166 30 42 47 48 30 11 9.5 0.6 30 40 25100 27400 33600 81000 8000
35 NAX 3530 NAX 3530Z 193 35 47 52 53 30 12 9 0.6 35 45 26900 29100 46200 91100 7000
40 NAX 4032 NAX 4032Z 248 40 52 60 61 32 13 10 0.6 40 52 29400 41700 54100 133000 6000
45 NAX 4532 NAX 4532Z 302 45 58 65 66.5 32 14 9 0.6 45 57 31000 40800 60200 133000 5500
50 NAX 5035 NAX 5035Z 325 50 62 70 71.5 35 14 10 0.6 50 62 42200 43300 83400 148000 5000
60 NAX 6040 NAX 6040Z 538 60 72 85 86.5 40 17 12 1 60 75 47500 41400 103000 224000 4000
70 NAX 7040 NAX 7040Z — 70 85 95 96.5 40 18 11 1 70 85 55500 43100 120000 — 3500
