Description

About Product

I: Lead Da: Ball Dia. n: Number of Circuits K: Stiffness (Kgf/pm)
Ca: Basic Dynamic Rating Load (Kgf) Coa: Basic Static Rating Load(Kgf)
Get a Quote

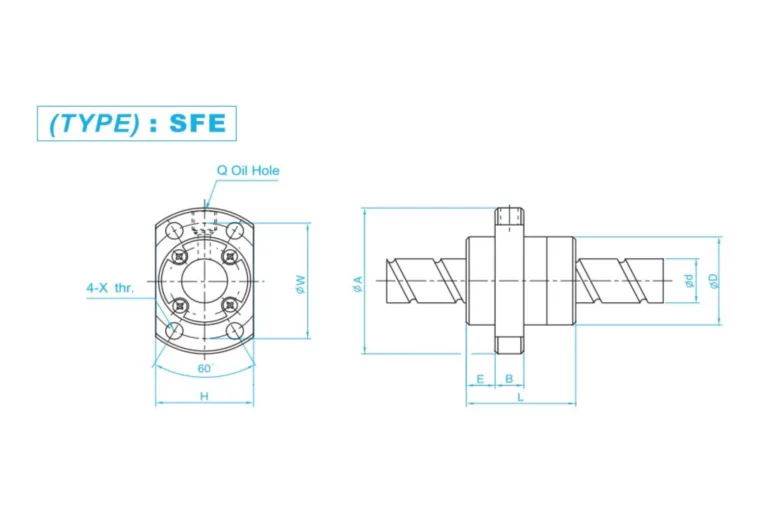

Model No. d I Da D A E B L X W H Q n Ca Coa K
SFE01616-3 1A 16 2.778 32 53 10.1 10 38 4.5 42 34 M6 1.7×2 1021 2409 29
SFE01616-6 16 2.778 32 53 10.1 10 38 4.5 42 34 M6 1.7×4 1853 4818 57
SFE01632-3 16 32 2.778 34 55 10.5 10 34 5.5 45 36 M6 0.7×2 439 976 11
SFE01632-6 32 2.778 34 55 10.5 10 34 5.5 45 36 M6 0.7×4 797 1953 21
SFE02020-3 20 20 3.175 39 62 12 10 47 5.5 50 41 M6 1.7×2 1321 3320 35
SFE02020-6 20 3.175 39 62 12 10 47 5.5 50 41 M6 1.7×4 2397 6640 67
SFE02040-3 20 40 3.175 38 58 11 10 41 5.5 48 40 M6 0.7×2 582 1397 13
SFE02040-6 40 3.175 38 58 11 10 41 5.5 48 40 M6 0.7×4 1056 2794 26
SFE02525-3 25 25 3.969 47 74 14 12 57 6.6 60 49 M6 1.7×2 1974 5188 43
SFE02525-6 25 3.969 47 74 14 12 57 6.6 60 49 M6 1.7×4 3583 10377 83
SFE02550-3 25 50 3.969 46 70 13 12 50 6.6 58 48 M6 0.7×2 870 2183 16
SFE02550-6 50 3.969 46 70 13 12 50 6.6 58 48 M6 0.7×4 1579 4366 32
SFE03232-3 32 32 4.762 58 92 17 12 71 9 74 60 M6 1.7×2 2876 8207 54
SFE03232-6 32 4.762 58 92 17 12 71 9 74 60 M6 1.7×4 5220 16414 106
SFE03264-3 32 64 4.762 58 92 15.5 12 62 9 74 60 M6 0.7×2 1225 3282 20
SFE03264-6 64 4.762 58 92 15.5 12 62 9 74 60 M6 0.7×4 2223 6565 39
SFE04040-3 40 40 6.35 73 114 19.5 15 89 11 93 75 M6 1.7×2 4600 13281 66
SFE04040-6 40 6.35 73 114 19.5 15 89 11 93 75 M6 1.7×4 8348 26561 128
SFE05050-3 50 50 7.938 90 135 21.5 20 107 14 112 92 M6 1.7×2 6512 19430 80
SFE05050-6 50 7.938 90 135 21.5 20 107 14 112 92 M6 1.7×4 11820 38859 155
