About Product

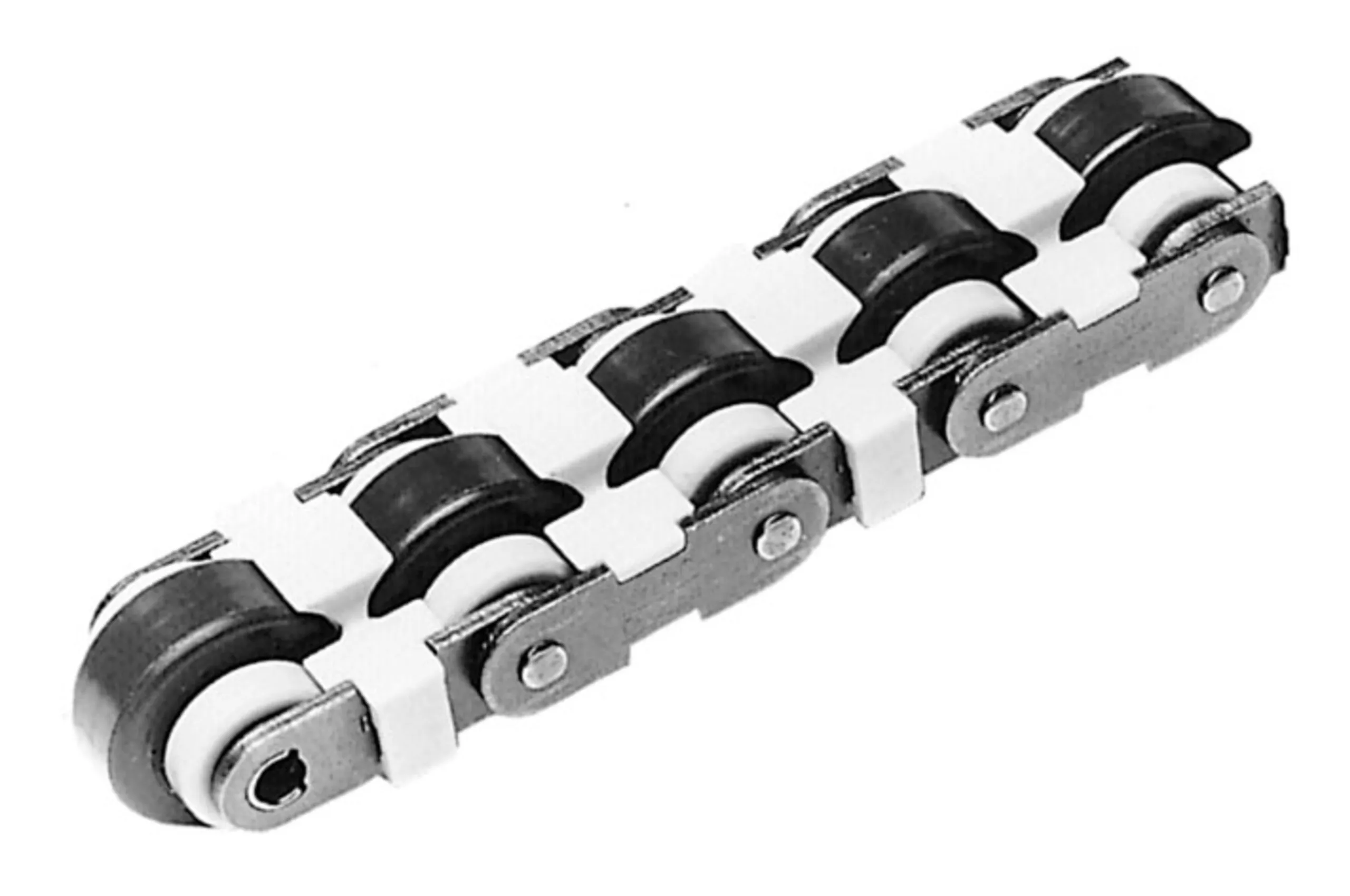

Tsubaki base chains are precision-engineered conveyor chains designed to provide smooth, reliable, and efficient material handling performance across a wide range of industrial applications. Manufactured using high-quality heat-treated steel components, these chains offer excellent durability, high resistance to elongation, and superior performance under continuous and shock-load operating conditions.
Get a Quote

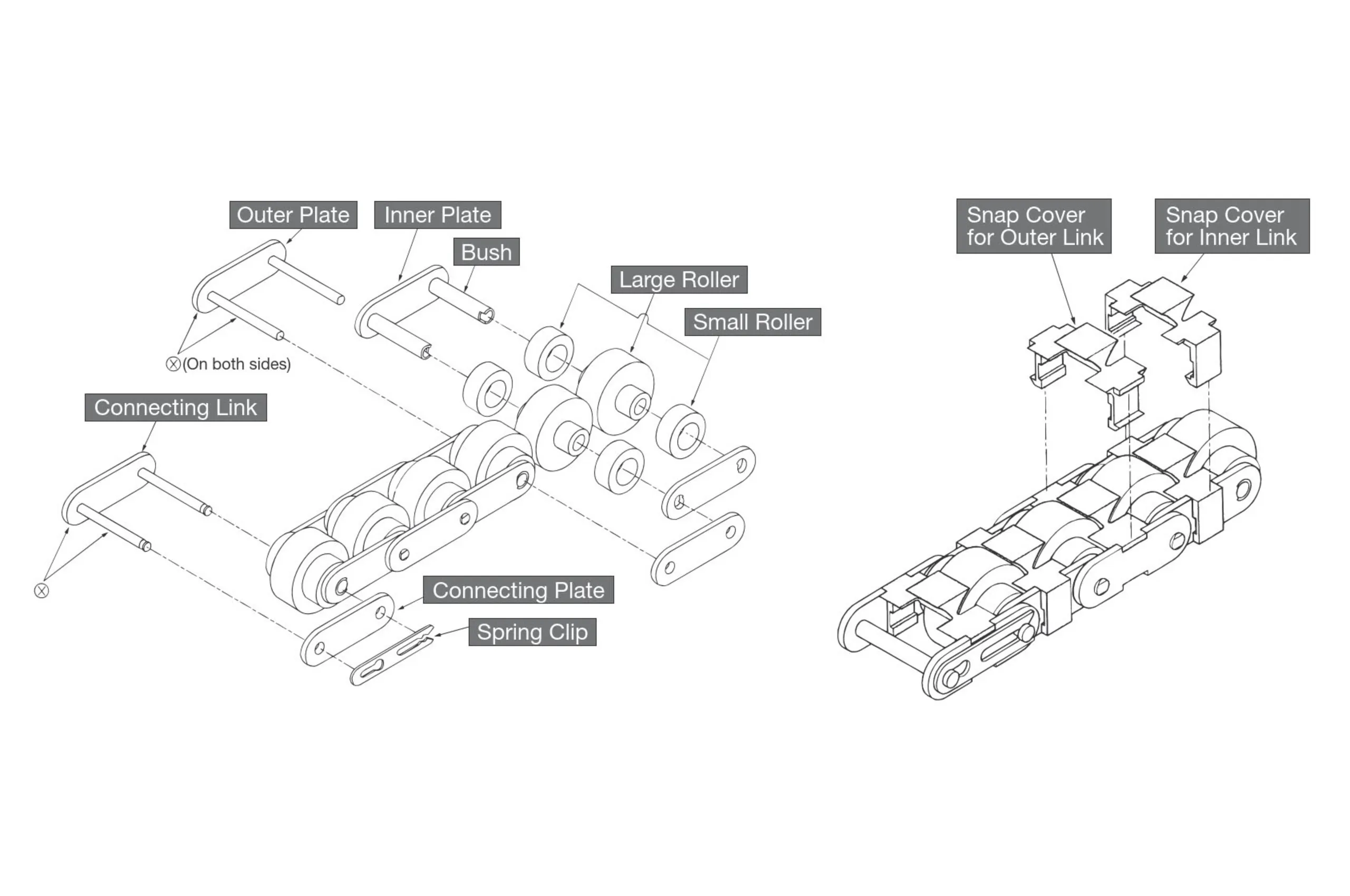

| Tsubaki Chain No. | Pitch P |
Roller | Width | Plate | Pin | Approx. Mass kg/m | No. of Links per Unit |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plastic Roller | Steel Roller | R | R1 | W1 | W2 | t | T | H | D | L1 | L2 | Plastic Roller | Steel Roller | ||
| RF2030VRP | RF2030VR | 19.05 | 11.91 | 18.3 | 8 | 4 | 1.5 | 1.5 | 9 | 3.59 (3.00) | 12.05 | 13.25 | 0.6 | 1.4 | 160 |
| RF2040VRP | RF2040VR | 25.4 | 15.88 | 24.6 | 10.3 | 5.7 | 2 | 1.5 | 12 | 3.97 | 15.8 | 17 | 1 | 2.5 | 120 |
| RF2050VRP | RF2050VR | 31.75 | 19.05 | 30.6 | 13 | 7.1 | 2.4 | 2 | 15 | 5.09 | 19.55 | 21.25 | 1.4 | 3.7 | 96 |
| RF2060VRP | RF2060VR | 38.1 | 22.23 | 36.6 | 15.5 | 8.5 | 3.2 | 3.2 | 17.2 | 5.96 | 24.5 | 26.4 | 2 | 5.6 | 80 |
| RF2080VRP | RF2080VR | 50.8 | 28.58 | 48 | 20 | 15 | 4 | 4 | 23 | 7.94 | 35.8 | 38 | 3.9 | — | 60 |
