About Product

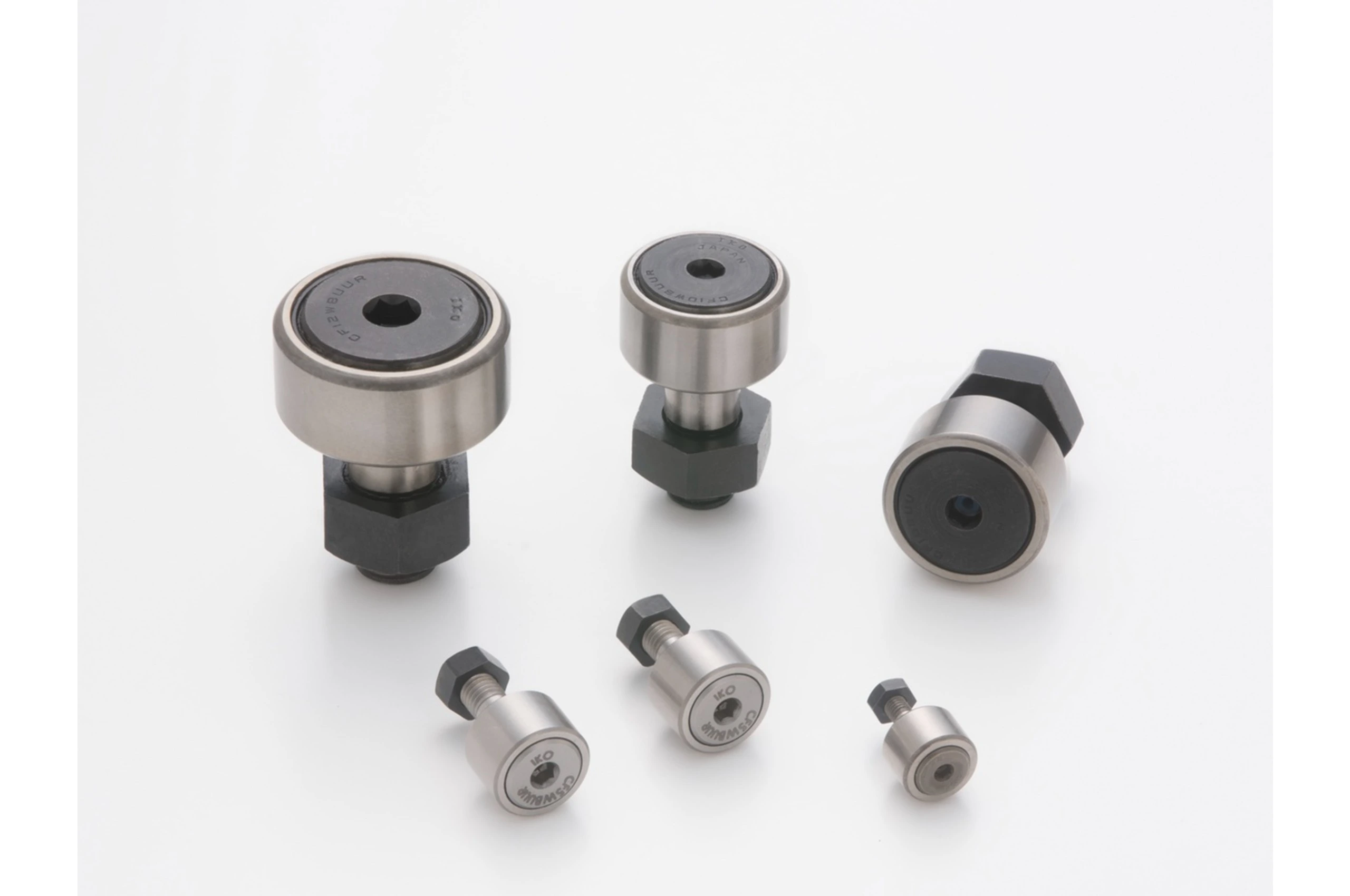

IKO Cam Followers are high-rigidity, high-accuracy bearings with a stud that incorporates needle rollers in a thick-walled outer ring. They are expertly designed for outer ring rotation and are widely used as follower bearings for cam mechanisms and various linear motion systems in demanding applications like machine tools, industrial robots, electronic devices, and OA equipment.
Get a Quote

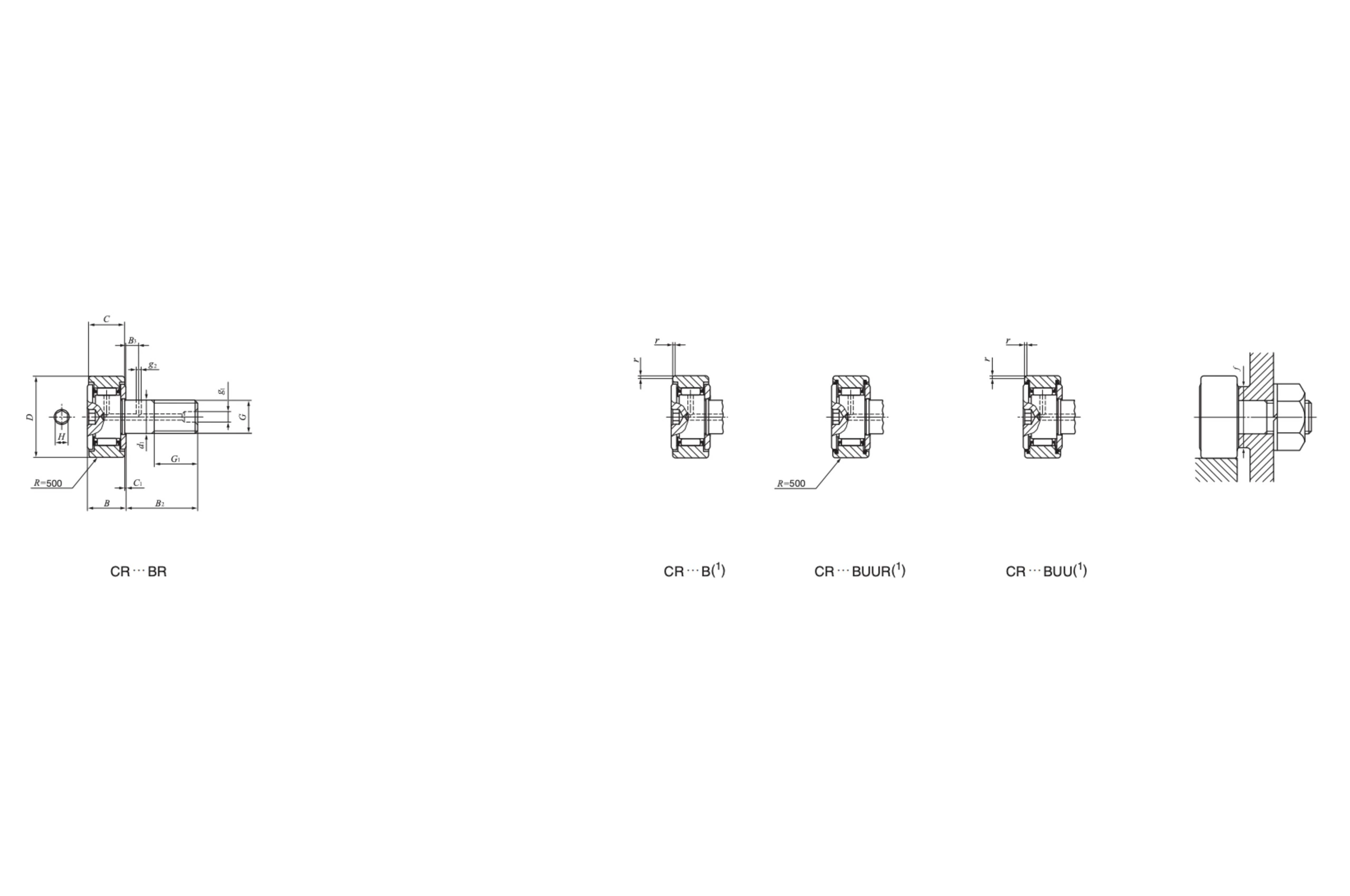

| Stud Dia (mm) | Identification No. | Shield Type (Crowned) | Shield Type (Cylindrical) | Sealed Type (Crowned) | Sealed Type (Cylindrical) | Mass (g) | D (mm) | C (mm) | d₁ (mm) | G (UNF) | G₁ (mm) | B Max (mm) | B₂ (mm) | B₃ (mm) | C₁ (mm) | g₁ (mm) | g₂ (mm) | H (mm) | r (mm) | f Min. (mm) | Torque (N·m) | Dyn Load (N) | Static Load (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4.826 | CR 8 | BR | B | BUUR | BUU | 9 | 12.7 | 8.731 | 4.826 | No.10-32 | 6.35 | 10.2 | 12.7 | — | 0.794 | — | — | 3.175 | 0.397 | 8.334 | 1.4 | 2520 | 2140 |
| 4.826 | CR 8-1 | BR | B | BUUR | BUU | 10 | 12.7 | 9.525 | 4.826 | No.10-32 | 6.35 | 10.9 | 15.875 | — | 0.794 | — | — | 3.175 | 0.397 | 8.334 | 1.4 | 2520 | 2140 |
| 6.35 | CR 10 | BR | B | BUUR | BUU | 19 | 15.875 | 10.319 | 6.35 | 1/4-28 | 7.938 | 11.8 | 15.875 | — | 0.794 | — | — | 3.175 | 0.397 | 11.509 | 3.4 | 3650 | 3670 |
| 6.35 | CR 10-1 | BR | B | BUUR | BUU | 21 | 15.875 | 11.112 | 6.35 | 1/4-28 | 7.938 | 12.5 | 19.05 | — | 0.794 | — | — | 3.175 | 0.397 | 11.509 | 3.4 | 3650 | 3670 |
| 9.525 | CR 12 | BR | B | BUUR | BUU | 35 | 19.05 | 12.7 | 9.525 | 3/8-24 | 9.525 | 14.2 | 22.225 | 6.35 | 0.794 | 4.762 | 1.588 | 4.762 | 0.794 | 13.494 | 10.8 | 4420 | 5110 |
| 9.525 | CR 14 | BR | B | BUUR | BUU | 46 | 22.225 | 12.7 | 9.525 | 3/8-24 | 9.525 | 14.2 | 22.225 | 6.35 | 0.794 | 4.762 | 1.588 | 4.762 | 0.794 | 15.081 | 10.8 | 4790 | 5810 |
| 11.112 | CR 16 | BR | B | BUUR | BUU | 73 | 25.4 | 15.875 | 11.112 | 7/16-20 | 12.7 | 17.3 | 25.4 | 6.35 | 0.794 | 4.762 | 1.588 | 6.35 | 1.191 | 17.859 | 17.4 | 8810 | 10800 |
| 11.112 | CR 18 | BR | B | BUUR | BUU | 99 | 28.575 | 15.875 | 11.112 | 7/16-20 | 12.7 | 17.3 | 25.4 | 6.35 | 0.794 | 4.762 | 1.588 | 6.35 | 1.191 | 17.859 | 17.4 | 11100 | 11600 |
| 12.7 | CR 20 | BR | B | BUUR | BUU | 132 | 31.75 | 19.05 | 12.7 | 1/2-20 | 15.875 | 20.4 | 31.75 | 7.938 | 0.794 | 4.762 | 1.588 | 7.938 | 1.588 | 21.828 | 27.7 | 14200 | 16000 |
| 12.7 | CR 22 | BR | B | BUUR | BUU | 157 | 34.925 | 19.05 | 12.7 | 1/2-20 | 15.875 | 20.4 | 31.75 | 7.938 | 0.794 | 4.762 | 1.588 | 7.938 | 1.588 | 21.828 | 27.7 | 14200 | 16000 |
| 15.875 | CR 24 | BR | B | BUUR | BUU | 225 | 38.1 | 22.225 | 15.875 | 5/8-18 | 19.05 | 23.6 | 38.1 | 9.525 | 0.794 | 4.762 | 1.588 | 9.525 | 1.588 | 26.196 | 55.7 | 18600 | 24300 |
| 15.875 | CR 26 | BR | B | BUUR | BUU | 260 | 41.275 | 22.225 | 15.875 | 5/8-18 | 19.05 | 23.6 | 38.1 | 9.525 | 0.794 | 4.762 | 1.588 | 9.525 | 1.588 | 26.196 | 55.7 | 18600 | 24300 |
| 19.05 | CR 28 | BR | B | BUUR | BUU | 365 | 44.45 | 25.4 | 19.05 | 3/4-16 | 22.225 | 26.8 | 44.45 | 11.112 | 0.794 | 4.762 | 1.588 | 11.112 | 1.588 | 32.543 | 100 | 25100 | 38200 |
| 19.05 | CR 30 | BR | B | BUUR | BUU | 410 | 47.625 | 25.4 | 19.05 | 3/4-16 | 22.225 | 26.8 | 44.45 | 11.112 | 0.794 | 4.762 | 1.588 | 11.112 | 1.588 | 32.543 | 100 | 25100 | 38200 |
| 22.225 | CR 32 | BR | B | BUUR | BUU | 615 | 50.8 | 31.75 | 22.225 | 7/8-14 | 25.4 | 33.5 | 50.8 | 12.7 | 0.794 | 4.762 | 1.588 | 12.7 | 1.588 | 37.306 | 162 | 32500 | 63900 |
| 22.225 | CR 36 | BR | B | BUUR | BUU | 750 | 57.15 | 31.75 | 22.225 | 7/8-14 | 25.4 | 33.5 | 50.8 | 12.7 | 0.794 | 4.762 | 1.588 | 12.7 | 1.588 | 37.306 | 162 | 32500 | 63900 |
