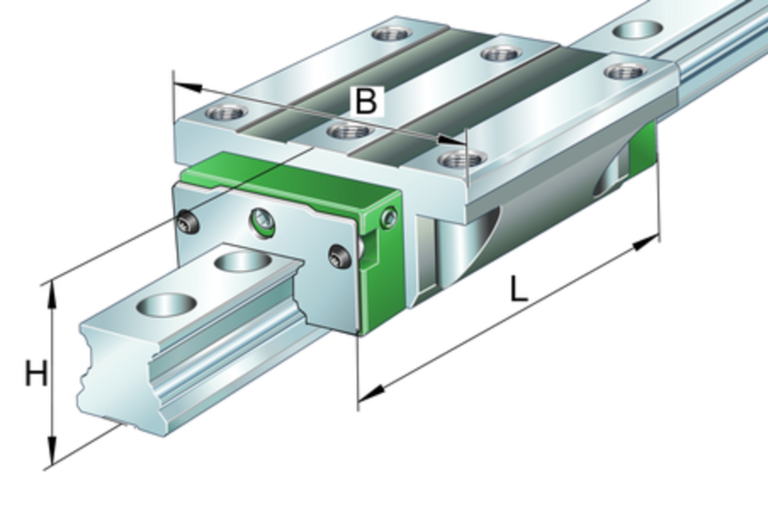

Product L (mm) B (mm) H (mm) C (N) C0 (N)
KWVE15-B-V0-G3 61.2 47 24 7200 14500
KWVE15-B-V0-G4 61.2 47 24 7200 14500
KWVE15-B-V1-G3 61.2 47 24 7200 14500
KWVE15-B-V1-G4 61.2 47 24 7200 14500
KWVE15-B-V2-G3 61.2 47 24 7200 14500
KWVE15-W-V0-G4 55.6 68 21 7200 14500
KWVE15-W-V1-G2 55.6 68 21 7200 14500
KWVE15-W-V1-G3 55.6 68 21 7200 14500
KWVE15-W-V1-G4 55.6 68 21 7200 14500
KWVE15-W-V2-G2 55.6 68 21 7200 14500
KWVE15-W-V2-G3 55.6 68 21 7200 14500
KWVE20-B-V0-G3 71.4 63 30 13100 27000
KWVE20-B-V0-G4 71.4 63 30 13100 27000
KWVE20-B-V1-G2 71.4 63 30 13100 27000
KWVE20-B-V1-G3 71.4 63 30 13100 27000
KWVE20-B-V1-G4 71.4 63 30 13100 27000
KWVE20-B-V2-G3 71.4 63 30 13100 27000
KWVE20-B-V2-G4 71.4 63 30 13100 27000
KWVE20-W-V1-G3 69.8 80 27 13100 27000
KWVE20-W-V1-G4 69.8 80 27 13100 27000
KWVE20-W-V2-G3 69.8 80 27 13100 27000
KWVE25-B-V0-G3 83.3 70 36 17900 37000
KWVE25-B-V0-G4 83.3 70 36 17900 37000
KWVE25-B-V1-G3 83.3 70 36 17900 37000
KWVE25-B-V1-G4 83.3 70 36 17900 37000
KWVE25-B-V2-G2 83.3 70 36 17900 37000
KWVE25-B-V2-G3 83.3 70 36 17900 37000
KWVE25-B-V2-G4 83.3 70 36 17900 37000
KWVE25-W-V1-G3 81.7 120 35 17900 37000
KWVE25-W-V2-G3 81.7 120 35 17900 37000
KWVE25-WL-V1-G3 107.5 120 35 23400 54000
KWVE25-WL-V1-G4 107.5 120 35 23400 54000
KWVE25-WL-V2-G3 107.5 120 35 23400 54000
KWVE25-WL-V2-G4 107.5 120 35 23400 54000
KWVE30-B-V0-G3 99 90 42 27500 55000
KWVE30-B-V0-G4 99 90 42 27500 55000
KWVE30-B-V1-G3 99 90 42 27500 55000
KWVE30-B-V1-G4 99 90 42 27500 55000
KWVE30-B-V2-G3 99 90 42 27500 55000
KWVE30-B-V2-G4 99 90 42 27500 55000
KWVE30-W-V2-G3 97.5 142 42 27500 55000
KWVE35-B-V0-G4 112 100 48 38000 72000
KWVE35-B-V1-G3 112 100 48 38000 72000
KWVE35-B-V1-G4 112 100 48 38000 72000
KWVE35-B-V2-G2 112 100 48 38000 72000
KWVE35-B-V2-G3 112 100 48 38000 72000
KWVE35-WL-V1-G3 140.2 162 50 47500 100000
KWVE35-WL-V2-G3 140.2 162 50 47500 100000
KWVE45-B-V0-G3 140.6 120 60 69000 141000
KWVE45-B-V1-G3 140.6 120 60 69000 141000
KWVE45-B-V2-G2 140.6 120 60 69000 141000
KWVE45-B-V2-G3 140.6 120 60 69000 141000
KWVE55-B-V1-G3 173.6 140 70 104000 213000
KWVE55-B-V2-G2 173.6 140 70 104000 213000
KWVE15-B-E-V0-G1 61.2 52 24 7200 14500
KWVE15-B-E-V0-G2 61.2 52 24 7200 14500
KWVE15-B-E-V0-G3 61.2 52 24 7200 14500
KWVE15-B-E-V0-G4 61.2 52 24 7200 14500
KWVE15-B-S-V2-G3 61.2 34 24 7200 14500
KWVE20-B-E-V0-G4 71.4 59 28 13100 27000
KWVE20-B-E-V1-G1 71.4 59 28 13100 27000
KWVE20-B-E-V1-G3 71.4 59 28 13100 27000
KWVE20-B-E-V2-G3 71.4 59 28 13100 27000
KWVE20-B-EC-V0-G4 50.4 59 28 8900 15400
KWVE20-B-EC-V1-G3 50.4 59 28 8900 15400
KWVE20-B-ES-V0-G4 71.4 42 28 13100 27000
KWVE20-B-ES-V1-G3 71.4 42 28 13100 27000
KWVE20-B-ES-V2-G3 71.4 42 28 13100 27000
KWVE20-B-ESC-V0-G3 50.4 42 28 8900 15400
KWVE20-B-ESC-V0-G4 50.4 42 28 8900 15400
KWVE20-B-ESC-V1-G1 50.4 42 28 8900 15400
KWVE20-B-ESC-V1-G3 50.4 42 28 8900 15400
KWVE20-B-ESC-V1-G4 50.4 42 28 8900 15400
KWVE20-B-ESC-V2-G3 50.4 42 28 8900 15400
KWVE20-B-L-V0-G4 88.9 63 30 16200 36500
KWVE20-B-L-V1-G3 88.9 63 30 16200 36500
KWVE20-B-L-V2-G3 88.9 63 30 16200 36500
KWVE20-B-L-V2-G4 88.9 63 30 16200 36500
KWVE20-B-N-V1-G2 71.4 63 27 13100 27000
KWVE20-B-N-V1-G3 71.4 63 27 13100 27000
KWVE20-B-NL-V1-G2 88.9 63 27 16200 36500
KWVE20-B-NL-V1-G3 88.9 63 27 16200 36500
KWVE20-B-S-V1-G3 71.4 44 30 13100 27000
KWVE20-B-S-V2-G3 71.4 44 30 13100 27000
KWVE20-B-SL-V0-G4 88.9 44 30 16200 36500
KWVE20-B-SL-V1-G2 88.9 44 30 16200 36500
KWVE20-B-SL-V1-G3 88.9 44 30 16200 36500
KWVE20-B-SL-V2-G3 88.9 44 30 16200 36500
KWVE20-B-SN-V1-G2 71.4 44 27 13100 27000
KWVE20-B-SN-V1-G3 71.4 44 27 13100 27000
KWVE20-B-SN-V2-G3 71.4 44 27 13100 27000
KWVE20-B-SNL-V1-G3 88.9 44 27 16200 36500
KWVE20-B-SNL-V2-G3 88.9 44 27 16200 36500
KWVE20-W-UG-V1-G3 69.8 80 27 13100 27000
KWVE25-B-E-V1-G3 83.3 73 33 17900 37000
KWVE25-B-EC-V1-G3 58.2 73 33 12500 22200
KWVE25-B-EC-V2-G3 58.2 73 33 12500 22200
KWVE25-B-ES-V1-G3 83.3 48 33 17900 37000
KWVE25-B-ES-V2-G3 83.3 48 33 17900 37000
KWVE25-B-ESC-V0-G3 58.2 48 33 12500 22200
KWVE25-B-ESC-V0-G4 58.2 48 33 12500 22200
KWVE25-B-ESC-V1-G3 58.2 48 33 12500 22200
KWVE25-B-ESC-V2-G3 58.2 48 33 12500 22200
KWVE25-B-H-V0-G3 83.3 48 40 17900 39000
KWVE25-B-H-V0-G4 83.3 48 40 17900 39000
KWVE25-B-H-V1-G3 83.3 48 40 17900 39000
KWVE25-B-H-V2-G3 83.3 48 40 17900 39000
KWVE25-B-HL-V1-G3 109.1 48 40 23400 54000
KWVE25-B-HL-V2-G3 109.1 48 40 23400 54000
KWVE25-B-L-V2-G3 109.1 70 36 23400 54000
KWVE25-B-L-V2-G4 109.1 70 36 23400 54000
KWVE25-B-N-V1-G3 83.3 70 31 17900 37000
KWVE25-B-N-V2-G3 83.3 70 31 17900 37000
KWVE25-B-NL-V1-G2 109.1 70 31 23400 54000
KWVE25-B-NL-V1-G3 109.1 70 31 23400 54000
KWVE25-B-NL-V2-G3 109.1 70 31 23400 54000
KWVE25-B-RROC-V1-G3 83.3 70 36 17900 37000
KWVE25-B-S-V0-G1 83.3 48 36 17900 37000
KWVE25-B-S-V0-G3 83.3 48 36 17900 37000
KWVE25-B-S-V1-G3 83.3 48 36 17900 37000
KWVE25-B-S-V2-G2 83.3 48 36 17900 37000
KWVE25-B-S-V2-G3 83.3 48 36 17900 37000
KWVE25-B-SL-V0-G4 109.1 48 36 23400 54000
KWVE25-B-SL-V1-G3 109.1 48 36 23400 54000
KWVE25-B-SL-V1-G4 109.1 48 36 23400 54000
KWVE25-B-SL-V2-G3 109.1 48 36 23400 54000
KWVE25-B-SN-V1-G3 83.3 48 31 17900 37000
KWVE25-B-SN-V1-G4 83.3 48 31 17900 37000
KWVE25-B-SN-V2-G3 83.3 48 31 17900 37000
KWVE25-B-SNL-V1-G3 109.1 48 31 23400 54000
KWVE30-B-EC-V0-G1 69 90 42 18700 31500
KWVE30-B-EC-V1-G3 69 90 42 18700 31500
KWVE30-B-ESC-V1-G1 69 60 42 18700 31500
KWVE30-B-ESC-V1-G3 69 60 42 18700 31500
KWVE30-B-H-V1-G2 99 60 45 27500 55000
KWVE30-B-H-V1-G3 99 60 45 27500 55000
KWVE30-B-H-V2-G2 99 60 45 27500 55000
KWVE30-B-H-V2-G3 99 60 45 27500 55000
KWVE30-B-HL-V1-G3 127 60 45 34500 74000
KWVE30-B-HL-V2-G3 127 60 45 34500 74000
KWVE30-B-L-V0-G4 127 90 42 34500 74000
KWVE30-B-L-V1-G3 127 90 42 34500 74000
KWVE30-B-L-V1-G4 127 90 42 34500 74000
KWVE30-B-L-V2-G3 127 90 42 34500 74000
KWVE30-B-N-V1-G1 99 90 38 27500 55000
KWVE30-B-N-V1-G3 99 90 38 27500 55000
KWVE30-B-N-V2-G2 99 90 38 27500 55000
KWVE30-B-N-V2-G3 99 90 38 27500 55000
KWVE30-B-NL-V1-G3 127 90 38 34500 74000
KWVE30-B-S-V1-G3 99 60 42 27500 55000
KWVE30-B-S-V2-G3 99 60 42 27500 55000
KWVE30-B-S-V2-G4 99 60 42 27500 55000
KWVE30-B-SL-V1-G1 127 60 42 34500 74000
KWVE30-B-SL-V1-G3 127 60 42 34500 74000
KWVE30-B-SL-V2-G3 127 60 42 34500 74000
KWVE30-B-SN-V1-G3 99 60 38 27500 55000
KWVE30-B-SN-V2-G2 99 60 38 27500 55000
KWVE30-B-SNL-V1-G3 127 60 38 34500 74000
KWVE30-B-SNL-V2-G2 127 60 38 34500 74000
KWVE35-B-E-V1-G2 112 100 48 38000 72000
KWVE35-B-E-V1-G3 112 100 48 38000 72000
KWVE35-B-E-V1-G4 112 100 48 38000 72000
KWVE35-B-EC-V1-G3 76.2 100 48 24600 39000
KWVE35-B-ESC-V1-G3 76.2 70 48 24600 39000
KWVE35-B-H-V1-G3 112 70 55 38000 72000
KWVE35-B-H-V2-G2 112 70 55 38000 72000
KWVE35-B-H-V2-G3 112 70 55 38000 72000
KWVE35-B-HL-V1-G3 145 70 55 47500 100000
KWVE35-B-HL-V2-G2 145 70 55 47500 100000
KWVE35-B-HL-V2-G3 145 70 55 47500 100000
KWVE35-B-L-V0-G4 145 100 48 47500 100000
KWVE35-B-L-V1-G3 145 100 48 47500 100000
KWVE35-B-L-V2-G2 145 100 48 47500 100000
KWVE35-B-L-V2-G3 145 100 48 47500 100000
KWVE35-B-L-V2-G4 145 100 48 47500 100000
KWVE35-B-N-V1-G3 112 100 44 38000 72000
KWVE35-B-N-V2-G2 112 100 44 38000 72000
KWVE35-B-NL-V1-G3 145 100 44 47500 100000
KWVE35-B-NL-V2-G3 145 100 44 47500 100000
KWVE35-B-S-V0-G3 112 70 48 38000 72000
KWVE35-B-S-V0-G4 112 70 48 38000 72000
KWVE35-B-S-V1-G3 112 70 48 38000 72000
KWVE35-B-S-V1-G4 112 70 48 38000 72000
KWVE35-B-S-V2-G2 112 70 48 38000 72000
KWVE35-B-S-V2-G3 112 70 48 38000 72000
KWVE35-B-S-V2-G4 112 70 48 38000 72000
KWVE35-B-SL-V1-G1 145 70 48 47500 100000
KWVE35-B-SL-V1-G2 145 70 48 47500 100000
KWVE35-B-SL-V1-G3 145 70 48 47500 100000
KWVE35-B-SL-V1-G4 145 70 48 47500 100000
KWVE35-B-SL-V2-G2 145 70 48 47500 100000
KWVE35-B-SL-V2-G3 145 70 48 47500 100000
KWVE35-B-SL-V2-G4 145 70 48 47500 100000
KWVE35-B-SN-V1-G3 112 70 44 38000 72000
KWVE35-B-SN-V2-G2 112 70 44 38000 72000
KWVE35-B-SNL-V1-G3 145 70 44 47500 100000
KWVE35-B-SNL-V2-G2 145 70 44 47500 100000
KWVE35-B-SNL-V2-G3 145 70 44 47500 100000
KWVE45-B-EC-V1-G3 97.8 120 60 46500 80000
KWVE45-B-ESC-V1-G3 97.8 86 60 46500 80000
KWVE45-B-H-V1-G1 140.6 86 70 69000 141000
KWVE45-B-H-V1-G2 140.6 86 70 69000 141000
KWVE45-B-H-V1-G3 140.6 86 70 69000 141000
KWVE45-B-H-V2-G2 140.6 86 70 69000 141000
KWVE45-B-H-V2-G3 140.6 86 70 69000 141000
KWVE45-B-HL-V1-G3 172.7 86 70 82000 181000
KWVE45-B-HL-V1-G4 172.7 86 70 82000 181000
KWVE45-B-HL-V2-G2 172.7 86 70 82000 181000
KWVE45-B-L-V0-G3 172.7 120 60 82000 181000
KWVE45-B-L-V1-G2 172.7 120 60 82000 181000
KWVE45-B-L-V1-G3 172.7 120 60 82000 181000
KWVE45-B-L-V1-G4 172.7 120 60 82000 181000
KWVE45-B-L-V2-G1 172.7 120 60 82000 181000
KWVE45-B-L-V2-G2 172.7 120 60 82000 181000
KWVE45-B-L-V2-G3 172.7 120 60 82000 181000
KWVE45-B-N-V1-G1 140.6 120 52 69000 141000
KWVE45-B-N-V1-G3 140.6 120 52 69000 141000
KWVE45-B-N-V2-G2 140.6 120 52 69000 141000
KWVE45-B-NL-V1-G1 172.7 120 52 82000 181000
KWVE45-B-NL-V1-G3 172.7 120 52 82000 181000
KWVE45-B-NL-V1-G4 172.7 120 52 82000 181000
KWVE45-B-NL-V2-G3 172.7 120 52 82000 181000
KWVE45-B-NL-V2-G4 172.7 120 52 82000 181000
KWVE45-B-S-V1-G1 140.6 86 60 69000 141000
KWVE45-B-S-V1-G3 140.6 86 60 69000 141000
KWVE45-B-S-V1-G4 140.6 86 60 69000 141000
KWVE45-B-S-V2-G2 140.6 86 60 69000 141000
KWVE45-B-S-V2-G3 140.6 86 60 69000 141000
KWVE45-B-SL-V1-G3 172.7 86 60 82000 181000
KWVE45-B-SL-V1-G4 172.7 86 60 82000 181000
KWVE45-B-SL-V2-G2 172.7 86 60 82000 181000
KWVE45-B-SL-V2-G4 172.7 86 60 82000 181000
KWVE45-B-SN-V1-G1 140.6 86 52 69000 141000
KWVE45-B-SN-V1-G3 140.6 86 52 69000 141000
KWVE45-B-SN-V2-G2 140.6 86 52 69000 141000
KWVE45-B-SNL-V1-G2 172.7 86 52 82000 181000
KWVE45-B-SNL-V1-G3 172.7 86 52 82000 181000
KWVE45-B-SNL-V2-G2 172.7 86 52 82000 181000
KWVE45-B-SNL-V2-G3 172.7 86 52 82000 181000
KWVE55-B-L-V1-G3 211.6 140 70 127000 285000
KWVE55-B-L-V2-G2 211.6 140 70 127000 285000
KWVE55-B-L-V2-G4 211.6 140 70 127000 285000
KWVE55-B-S-V2-G2 173.6 100 70 104000 213000
KWVE55-B-SL-V2-G2 211.6 100 70 127000 285000
KWVE20-B-L-RROC-V1-G3 88.9 63 30 16200 36500
KWVE35-B-H-RROC-V2-G3 112 70 55 38000 72000
KWVE15-B 61.2 47 24 7200 14500
KWVE15-W 55.6 68 21 7200 14500
KWVE20-B 71.4 63 30 13100 27000
KWVE35-B-H-RROC-V2-G3 112 70 55 38000 72000
KWVE15-B 61.2 47 24 7200 14500
KWVE15-W 55.6 68 21 7200 14500
KWVE20-B 71.4 63 30 13100 27000
KWVE20-W 69.8 80 27 13100 27000
KWVE20-WL 87.3 80 27 16200 36500
KWVE25-B 83.3 70 36 17900 37000
KWVE25-W 81.7 120 35 17900 37000
KWVE25-WL 107.5 120 35 23400 54000
KWVE30-B 99 90 42 27500 55000
KWVE30-W 97.5 142 42 27500 55000
KWVE35-B 112 100 48 38000 72000
KWVE35-WL 140.2 162 50 47500 100000
KWVE45-B 140.6 120 60 69000 141000
KWVE55-B 173.6 140 70 104000 213000
KWVE15-B-E 61.2 52 24 7200 14500
KWVE15-B-EC 44.5 52 24 4900 8300
KWVE15-B-ESC 44.5 34 24 4900 8300
KWVE15-B-H 61.2 34 28 7200 14500
KWVE15-B-S 61.2 34 24 7200 14500
KWVE20-B-E 71.4 59 28 13100 27000
KWVE20-B-EC 50.4 59 28 8900 15400
KWVE20-B-ES 71.4 42 28 13100 27000
KWVE20-B-ESC 50.4 42 28 8900 15400
KWVE20-B-L 88.9 63 30 16200 36500
KWVE20-B-N 71.4 63 27 13100 27000
KWVE20-B-NL 88.9 63 27 16200 36500
KWVE20-B-S 71.4 44 30 13100 27000
KWVE20-B-SL 88.9 44 30 16200 36500
KWVE20-B-SN 71.4 44 27 13100 27000
KWVE20-B-SNL 88.9 44 27 16200 36500
KWVE25-B-E 83.3 73 33 17900 37000
KWVE25-B-EC 58.2 73 33 12500 22200
KWVE25-B-ES 83.3 48 33 17900 37000
KWVE25-B-ESC 58.2 48 33 12500 22200
KWVE25-B-H 83.3 48 40 17900 39000
KWVE25-B-HL 109.1 48 40 23400 54000
KWVE25-B-L 109.1 70 36 23400 54000
KWVE25-B-N 83.3 70 31 17900 37000
KWVE25-B-NL 109.1 70 31 23400 54000
KWVE25-B-S 83.3 48 36 17900 37000
KWVE25-B-SL 109.1 48 36 23400 54000
KWVE25-B-SN 83.3 48 31 17900 37000
KWVE25-B-SNL 109.1 48 31 23400 54000
KWVE30-B-E 99 90 42 27500 55000
KWVE30-B-EC 69 90 42 18700 31500
KWVE30-B-ESC 69 60 42 18700 31500
KWVE30-B-H 99 60 45 27500 55000
KWVE30-B-HL 127 60 45 34500 74000
KWVE30-B-L 127 90 42 34500 74000
KWVE30-B-N 99 90 38 27500 55000
KWVE30-B-NL 127 90 38 34500 74000
KWVE30-B-S 99 60 42 27500 55000
KWVE30-B-SL 127 60 42 34500 74000
KWVE30-B-SN 99 60 38 27500 55000
KWVE30-B-SNL 127 60 38 34500 74000
KWVE35-B-E 112 100 48 38000 72000
KWVE35-B-EC 76.2 100 48 24600 39000
KWVE35-B-ESC 76.2 70 48 24600 39000
KWVE35-B-H 112 70 55 38000 72000
KWVE35-B-HL 145 70 55 47500 100000
KWVE35-B-L 145 100 48 47500 100000
KWVE35-B-S 112 70 48 38000 72000
KWVE35-B-SL 145 70 48 47500 100000
KWVE35-B-SN 112 70 44 38000 72000
KWVE35-B-SNL 145 70 44 47500 100000
KWVE45-B-EC 97.8 120 60 46500 80000
KWVE45-B-ESC 97.8 86 60 46500 80000
KWVE45-B-H 140.6 86 70 69000 141000
KWVE45-B-HL 172.7 86 70 82000 181000
KWVE45-B-L 172.7 120 60 82000 181000
KWVE45-B-N 140.6 120 52 69000 141000
KWVE45-B-NL 172.7 120 52 82000 181000
KWVE45-B-S 140.6 86 60 69000 141000
KWVE45-B-SL 172.7 86 60 82000 181000
KWVE45-B-SN 140.6 86 52 69000 141000
KWVE45-B-SNL 172.7 86 52 82000 181000
KWVE55-B-L 211.6 140 70 127000 285000
KWVE55-B-S 173.6 100 70 104000 213000
KWVE55-B-SL 211.6 100 70 127000 285000
KWVE15-B-H-V0-G4 – – – – –
KWVE20-B-RROC-V2-G3 – – – – –
KWVE30-B-RROC-V1-G3 – – – – –
KWVE30-B-RROC-V2-G3 – – – – –
KWVE45-B-HL-V2-G3 – – – – –
KWVE30-B-H-RROC-V2-G3 – – – – –
KWVE25-B-220/910/220-V0-G4 – – – – –
KWVE15-B-S-220/910/220-V1-G1 – – – – –
KWVE20-B-400/900/220-ETO-V1-G3 – – – – –
KWVE20-B-SL-200/900/200-V1-G3 – – – – –
KWVE30-B-400/900/220-ETO-V1-G3 – – – – –
KWVE30-B-H-310/900/310-S31-V2-G2 – – – – –

Related products
