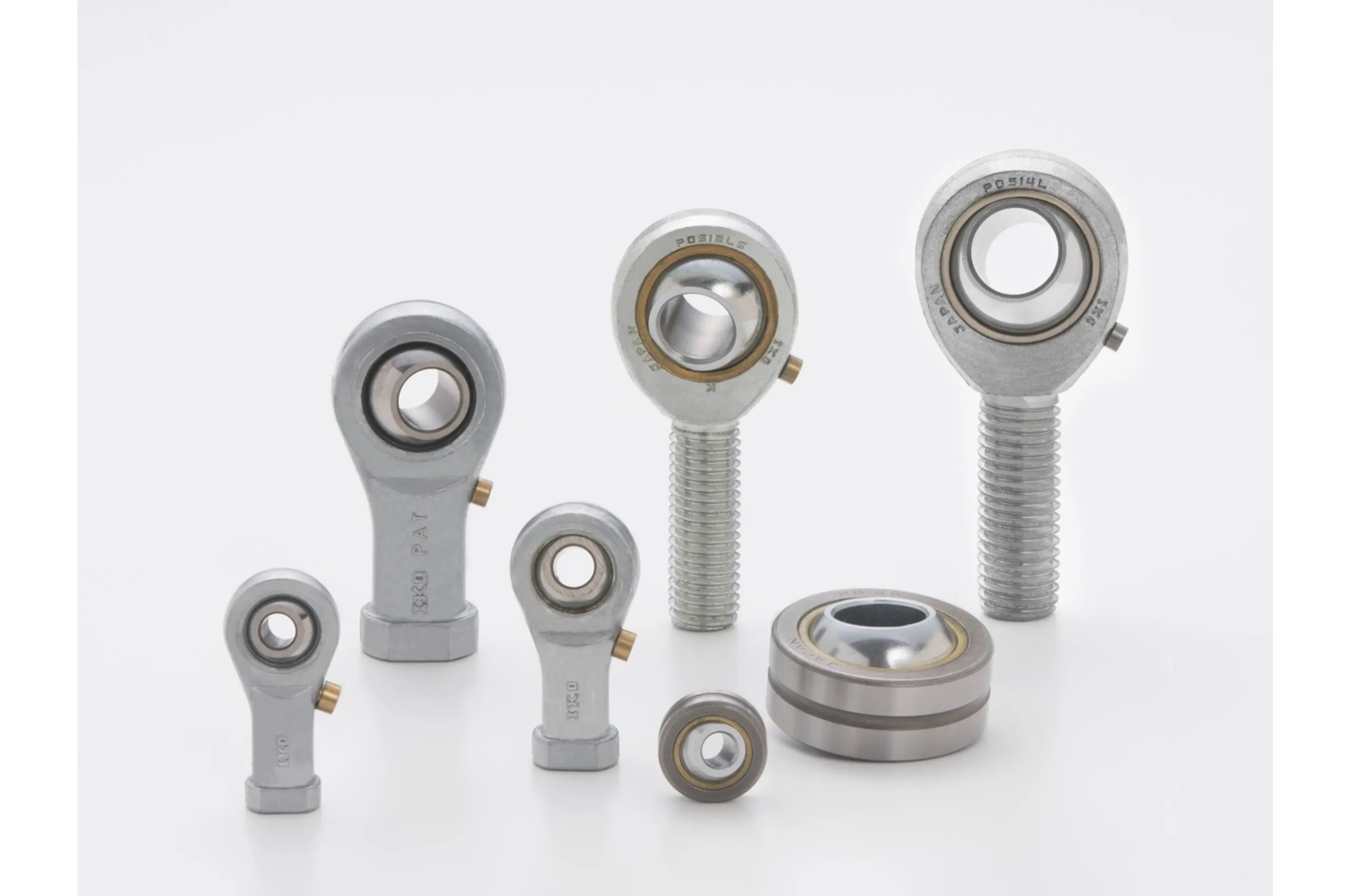

The IKO PILLOBALL Rod End POS-EC Series is a maintenance-free type with a male (external) thread, making it ideal for applications where relubrication is difficult or oil must be avoided, such as in food processing or automated machinery.
Get a Quote

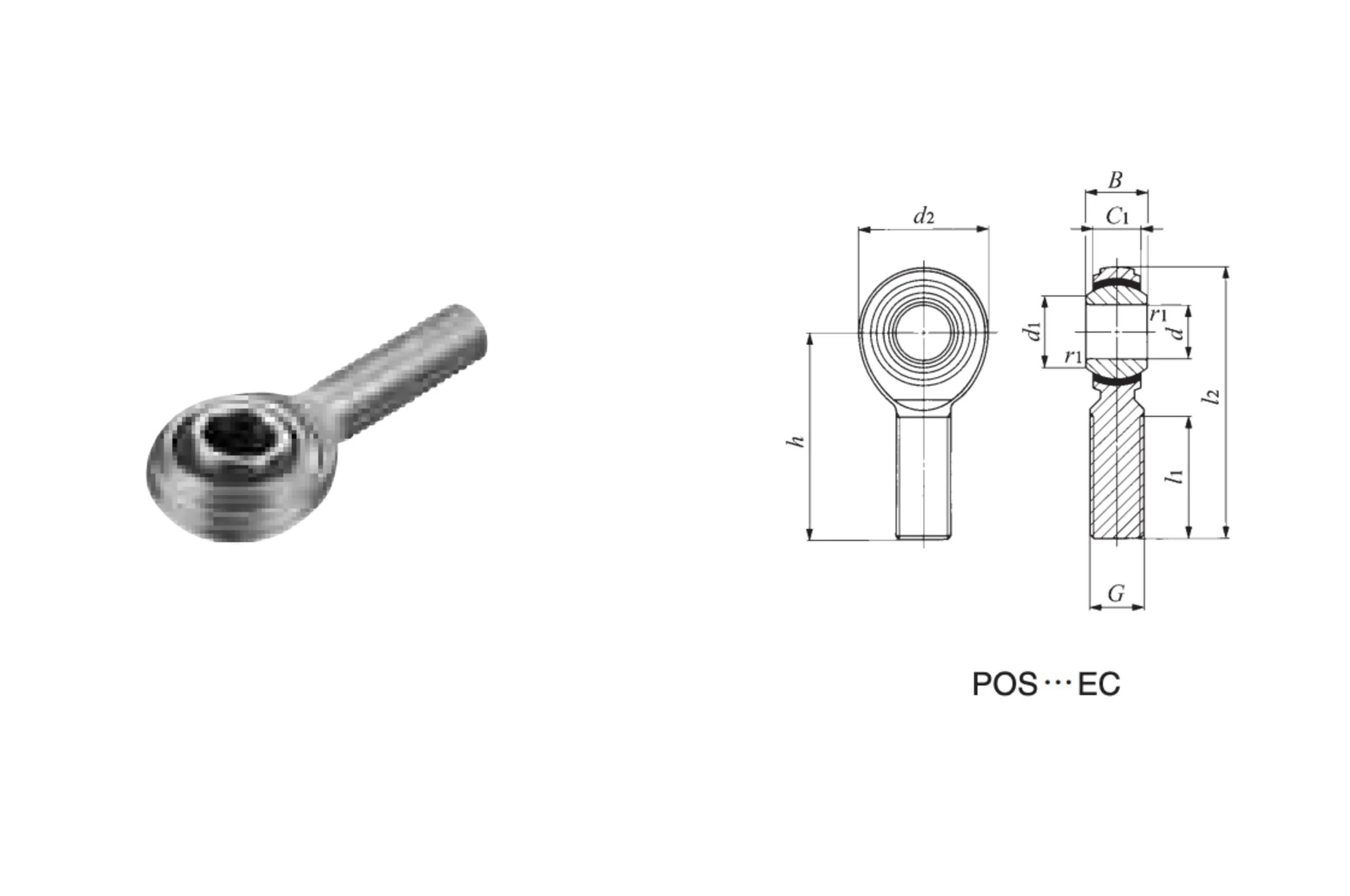

| Identification No. | Mass (g) | d (mm) | Thread G | d₂ (mm) | C₁ (mm) | B (mm) | d₁ (mm) | l₂ (mm) | h (mm) | l₁ (mm) | r₁s min (mm) | Ball Dia. (mm) | Dynamic Load Cᵈ (N) | Static Load Cₛ (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| POS 3EC | 5 | 3 | M3 × 0.5 | 12 | 4.5 | 6 | 5.2 | 33 | 27 | 15 | 0.2 | 7.938 (5/16) | 3500 | 1220 |
| POS 4EC | 8.1 | 4 | M4 × 0.7 | 14 | 5.3 | 7 | 6.5 | 37 | 30 | 17 | 0.2 | 9.525 (3/8) | 4950 | 2060 |
| POS 5EC | 12.5 | 5 | M5 × 0.8 | 16 | 6 | 8 | 7.7 | 41 | 33 | 20 | 0.2 | 11.112 (7/16) | 6540 | 3340 |
| POS 6EC | 19 | 6 | M6 × 1 | 18 | 6.75 | 9 | 9 | 45 | 36 | 22 | 0.2 | 12.700 (1/2) | 8410 | 4730 |
| POS 8EC | 32 | 8 | M8 × 1.25 | 22 | 9 | 12 | 10.4 | 53 | 42 | 25 | 0.2 | 15.875 (5/8) | 14000 | 7760 |
| POS 10EC | 54 | 10 | M10 × 1.5 | 26 | 10.5 | 14 | 12.9 | 61 | 48 | 29 | 0.2 | 19.050 (3/4) | 19600 | 10500 |
| POS 12EC | 85 | 12 | M12 × 1.75 | 30 | 12 | 16 | 15.4 | 69 | 54 | 33 | 0.2 | 22.225 (7/8) | 26200 | 13700 |
| POS 14EC | 126 | 14 | M14 × 2 | 34 | 13.5 | 19 | 16.9 | 77 | 60 | 36 | 0.2 | 25.400 (1) | 33600 | 17200 |
| POS 16EC | 185 | 16 | M16 × 2 | 38 | 15 | 21 | 19.4 | 85 | 66 | 40 | 0.2 | 28.575 (1 1/8) | 42000 | 21100 |
| POS 18EC | 260 | 18 | M18 × 1.5 | 42 | 16.5 | 23 | 21.9 | 93 | 72 | 44 | 0.2 | 31.750 (1 1/4) | 51400 | 25100 |
| POS 20EC | 340 | 20 | M20 × 1.5 | 46 | 18 | 25 | 24.4 | 101 | 78 | 47 | 0.2 | 34.925 (1 3/8) | 61600 | 30000 |
| POS 22EC | 435 | 22 | M22 × 1.5 | 50 | 20 | 28 | 25.8 | 109 | 84 | 51 | 0.2 | 38.100 (1 1/2) | 74700 | 36400 |
