About Product

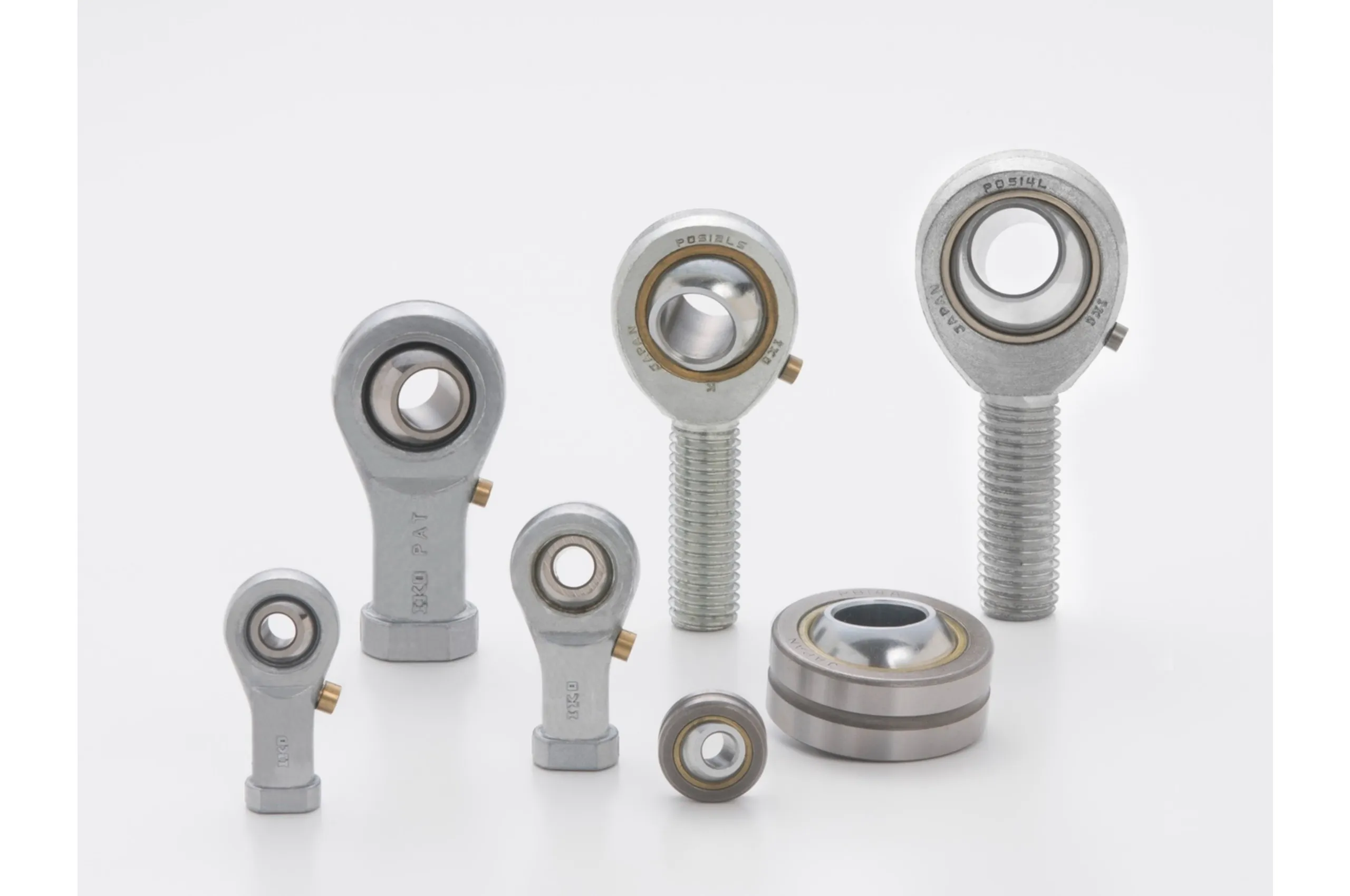

IKO’s PILLOBALL Rod Ends (also known as spherical rod ends or spherical plain bearings) are compact, self-aligning spherical bushings designed to act as link mechanisms in various machines. They are engineered to provide smooth rotational and oscillatory motion while offering excellent wear resistance and high loading capabilities.
Get a Quote

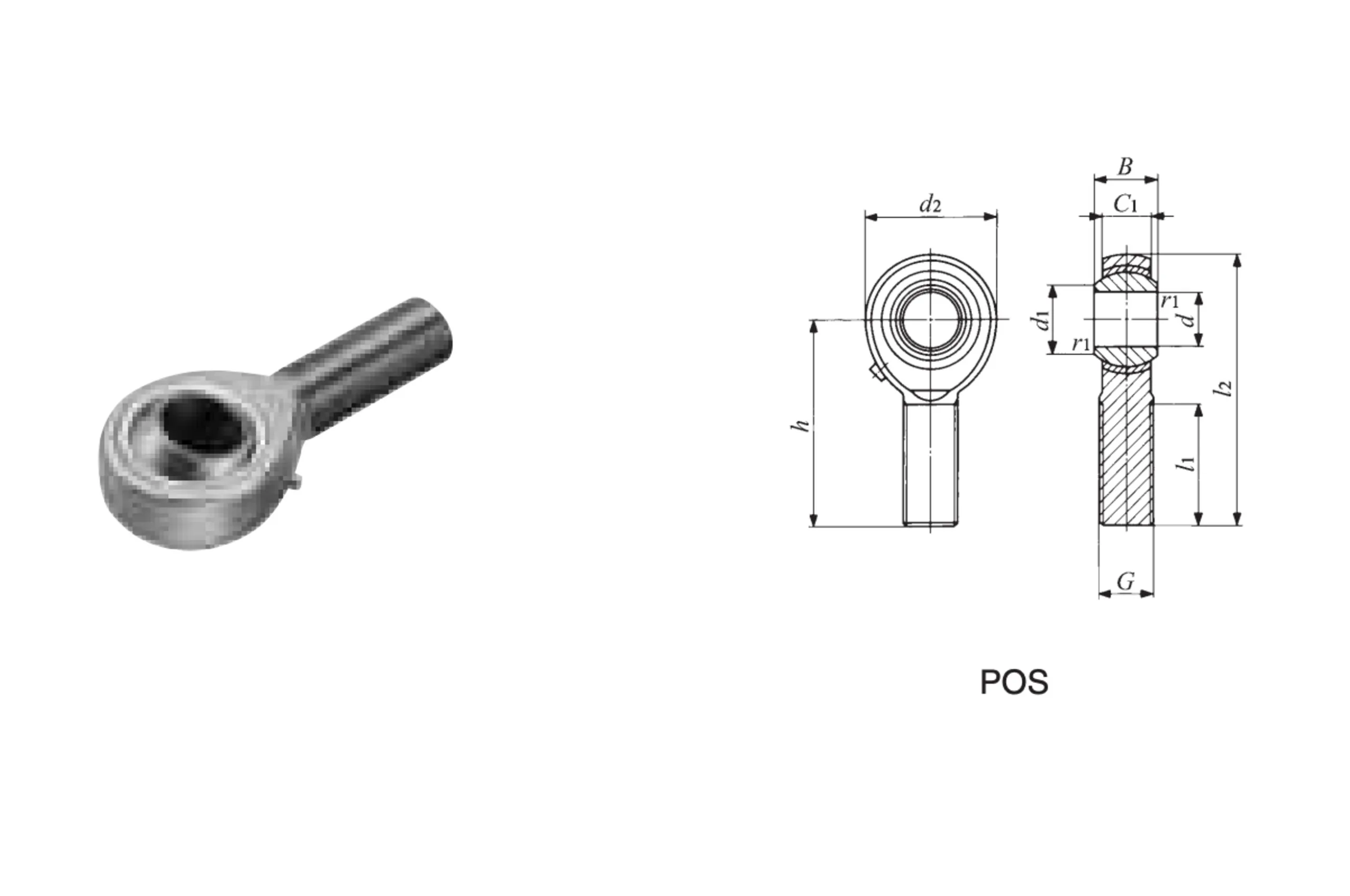

| Identification No. | Mass (g) | Thread G | d | d2 | C1 | B | d1 | l2 | h | l1 | r1s min | Ball Dia. mm (inch) | Cd (N) | Cs (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| POS 3 | 5 | M3×0.5 | 3 | 12 | 4.5 | 6 | 5.2 | 33 | 27 | 15 | 0.2 | 7.938 (5/16) | 1750 | 1220 |
| POS 4 | 8.1 | M4×0.7 | 4 | 14 | 5.3 | 7 | 6.5 | 37 | 30 | 17 | 0.2 | 9.525 (3/8) | 2480 | 2060 |
| POS 5A | 12.5 | M5×0.8 | 5 | 16 | 6 | 8 | 7.7 | 41 | 33 | 20 | 0.2 | 11.112 (7/16) | 3270 | 3340 |
| POS 6A | 19 | M6×1 | 6 | 18 | 6.75 | 9 | 9 | 45 | 36 | 22 | 0.2 | 12.700 (1/2) | 4200 | 4730 |
| POS 8A | 32 | M8×1.25 | 8 | 22 | 9 | 12 | 10.4 | 53 | 42 | 25 | 0.2 | 15.875 (5/8) | 7010 | 8640 |
| POS 10A | 54 | M10×1.5 | 10 | 26 | 10.5 | 14 | 12.9 | 61 | 48 | 29 | 0.2 | 19.050 (3/4) | 9810 | 13300 |
| POS 12A | 85 | M12×1.75 | 12 | 30 | 12 | 16 | 15.4 | 69 | 54 | 33 | 0.2 | 22.225 (7/8) | 13100 | 16900 |
| POS 14A | 126 | M14×2 | 14 | 34 | 13.5 | 19 | 16.9 | 77 | 60 | 36 | 0.2 | 25.400 (1) | 16800 | 20900 |
| POS 16A | 185 | M16×2 | 16 | 38 | 15 | 21 | 19.4 | 85 | 66 | 40 | 0.2 | 28.575 (1 1/8) | 21000 | 25400 |
| POS 18A | 260 | M18×1.5 | 18 | 42 | 16.5 | 23 | 21.9 | 93 | 72 | 44 | 0.2 | 31.750 (1 1/4) | 25700 | 30200 |
| POS 20 | 340 | M20×1.5 | 20 | 46 | 18 | 25 | 24.4 | 101 | 78 | 47 | 0.2 | 34.925 (1 3/8) | 30800 | 35500 |
| POS 22 | 435 | M22×1.5 | 22 | 50 | 20 | 28 | 25.8 | 109 | 84 | 51 | 0.2 | 38.100 (1 1/2) | 37400 | 41700 |
| POS 25 | 650 | M24×2 | 24 | 60 | 22 | 31 | 29.6 | 124 | 94 | 57 | 0.6 | 42.862 (1 11/16) | 46200 | 72700 |
| POS 28 | 875 | M27×2 | 27 | 66 | 25 | 35 | 32.3 | 136 | 103 | 62 | 0.6 | 47.625 (1 7/8) | 58400 | 87000 |
| POS 30 | 1070 | M30×2 | 30 | 70 | 25 | 37 | 34.8 | 145 | 110 | 66 | 0.6 | 50.800 (2) | 62300 | 92200 |
