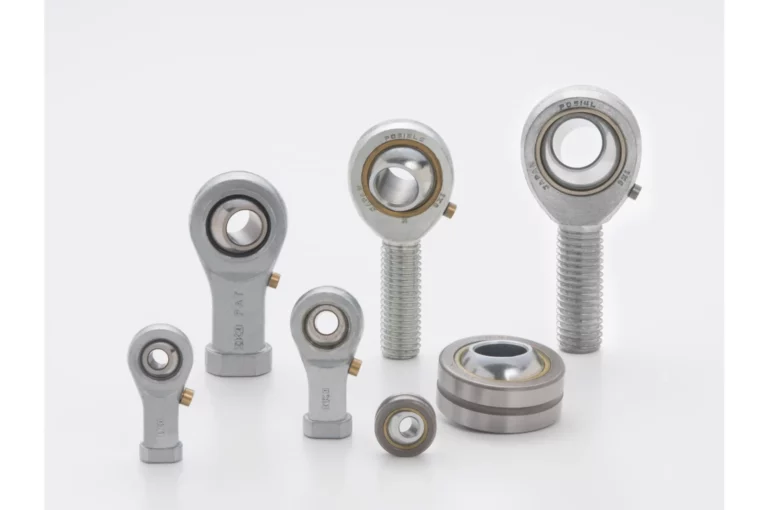

The IKO PILLOBALL PHS…EC Rod End is a compact, self-aligning spherical bushing designed to accommodate large radial and bi-directional axial loads, enabling smooth rotational and oscillatory motion. This particular series is Maintenance-Free, making it an ideal choice for applications where re-lubrication is difficult or in environments that must avoid oil, such as food processing machinery.
Get a Quote

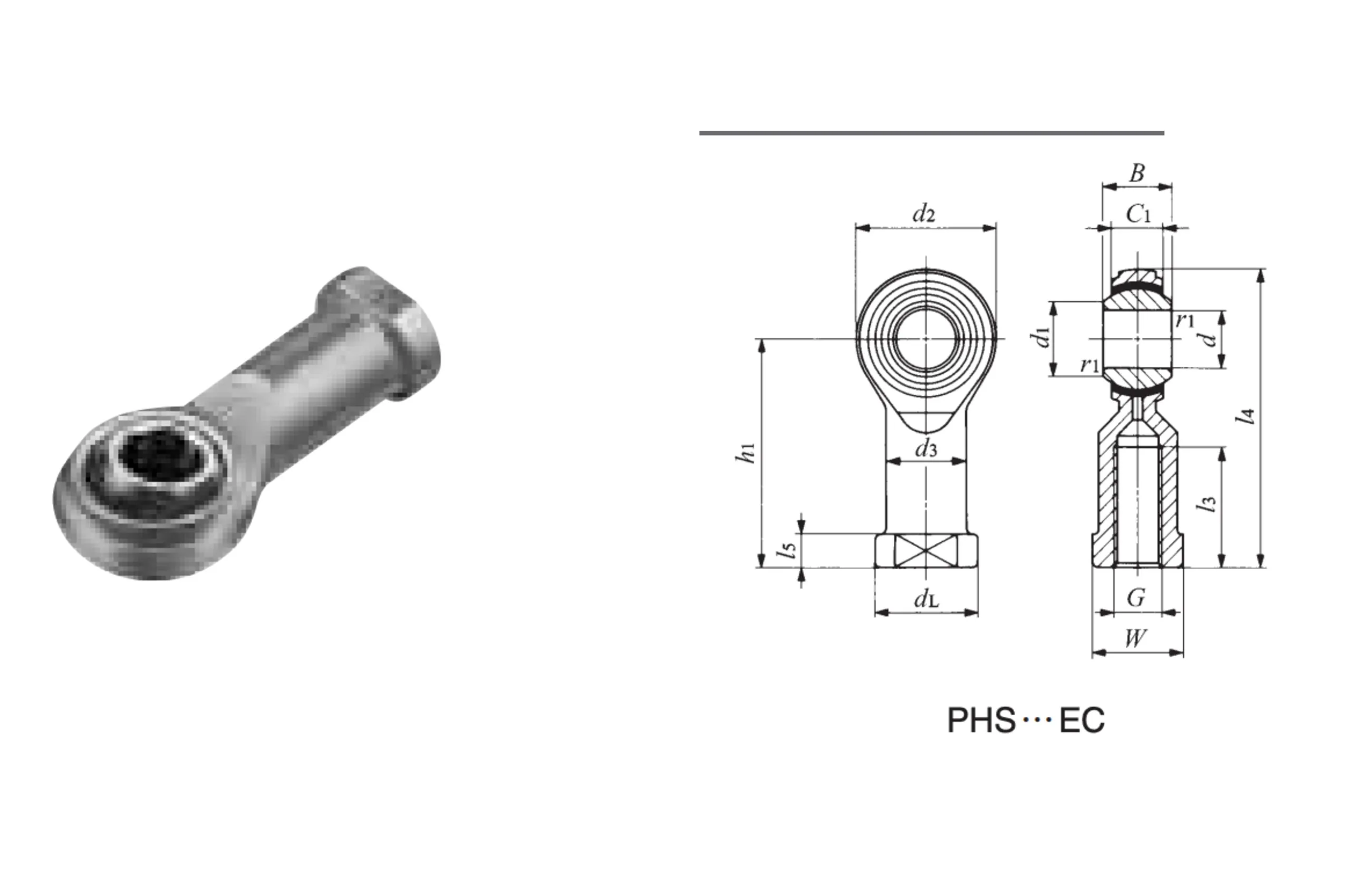

| Identification No. | Mass (g) | Thread G | d | d2 | C1 | B | d1 | l4 | h1 | l3 | l5 | W | d3 | dL | r1s min | Ball Dia. (mm) (inch) | Cd (N) | Cs (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PHS 3EC | 5.7 | M3×0.5 | 3 | 12 | 4.5 | 6 | 5.2 | 27 | 21 | 10 | 3 | 5.5 | 5 | 6.5 | 0.2 | 7.938 (5/16) | 3500 | 2480 |
| PHS 4EC | 11.9 | M4×0.7 | 4 | 14 | 5.3 | 7 | 6.5 | 31 | 24 | 12 | 4 | 8 | 8 | 9.5 | 0.2 | 9.525 (3/8) | 4950 | 3260 |
| PHS 5EC | 16.5 | M5×0.8 | 5 | 16 | 6 | 8 | 7.7 | 35 | 27 | 12.5 | 4 | 9 | 9 | 11 | 0.2 | 11.112 (7/16) | 6540 | 4010 |
| PHS 6EC | 25 | M6×1 | 6 | 18 | 6.75 | 9 | 9 | 39 | 30 | 13.5 | 5 | 10 | 10 | 13 | 0.2 | 12.700 (1/2) | 8410 | 4940 |
| PHS 8EC | 43 | M8×1.25 | 8 | 22 | 9 | 12 | 10.4 | 47 | 36 | 16 | 5 | 12.5 | 12.5 | 16 | 0.2 | 15.875 (5/8) | 14000 | 7760 |
| PHS 10EC | 72 | M10×1.5 | 10 | 26 | 10.5 | 14 | 12.9 | 56 | 43 | 19.5 | 6.5 | 17 | 15 | 19 | 0.2 | 19.050 (3/4) | 19600 | 10500 |
| PHS 12EC | 107 | M12×1.75 | 12 | 30 | 12 | 16 | 15.4 | 65 | 50 | 24 | 6.5 | 19 | 17.5 | 22 | 0.2 | 22.225 (7/8) | 26200 | 13700 |
| PHS 14EC | 160 | M14×2 | 14 | 34 | 13.5 | 19 | 16.9 | 74 | 57 | 27 | 8 | 22 | 20 | 25 | 0.2 | 25.400 (1) | 33600 | 17200 |
| PHS 16EC | 210 | M16×2 | 16 | 38 | 15 | 21 | 19.4 | 83 | 64 | 33 | 8 | 22 | 22 | 27 | 0.2 | 28.575 (1 1/8) | 42000 | 21100 |
| PHS 18EC | 295 | M18×1.5 | 18 | 42 | 16.5 | 23 | 21.9 | 92 | 71 | 36 | 10 | 27 | 25 | 31 | 0.2 | 31.750 (1 1/4) | 51400 | 25100 |
| PHS 20EC | 380 | M20×1.5 | 20 | 46 | 18 | 25 | 24.4 | 100 | 77 | 40 | 10 | 27.5 | 27.5 | 34 | 0.2 | 34.925 (1 3/8) | 61600 | 30000 |
| PHS 22EC | 490 | M22×1.5 | 22 | 50 | 20 | 28 | 25.8 | 109 | 84 | 41 | 12 | 30 | 30 | 37 | 0.2 | 38.100 (1 1/2) | 74700 | 36400 |
