Description
About Product

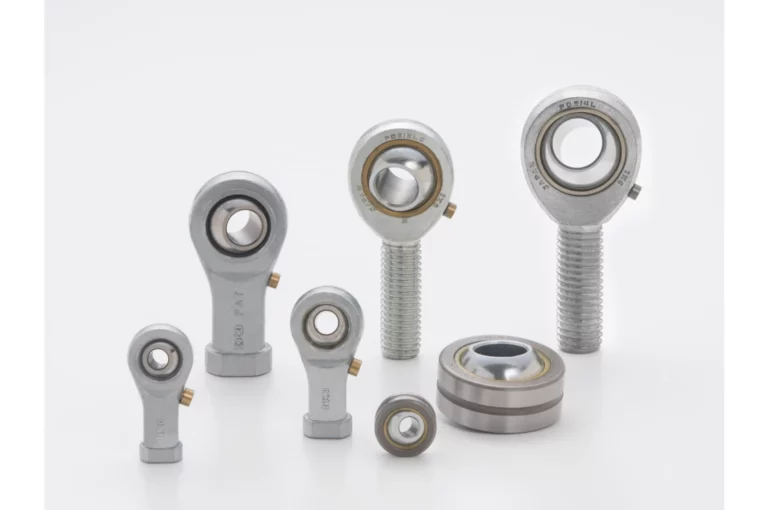

The PHSA series is one of IKO’s PILLOBALL Rod End types, specifically a Lubrication Type, Die-Cast Design with a Female Thread.
Get a Quote

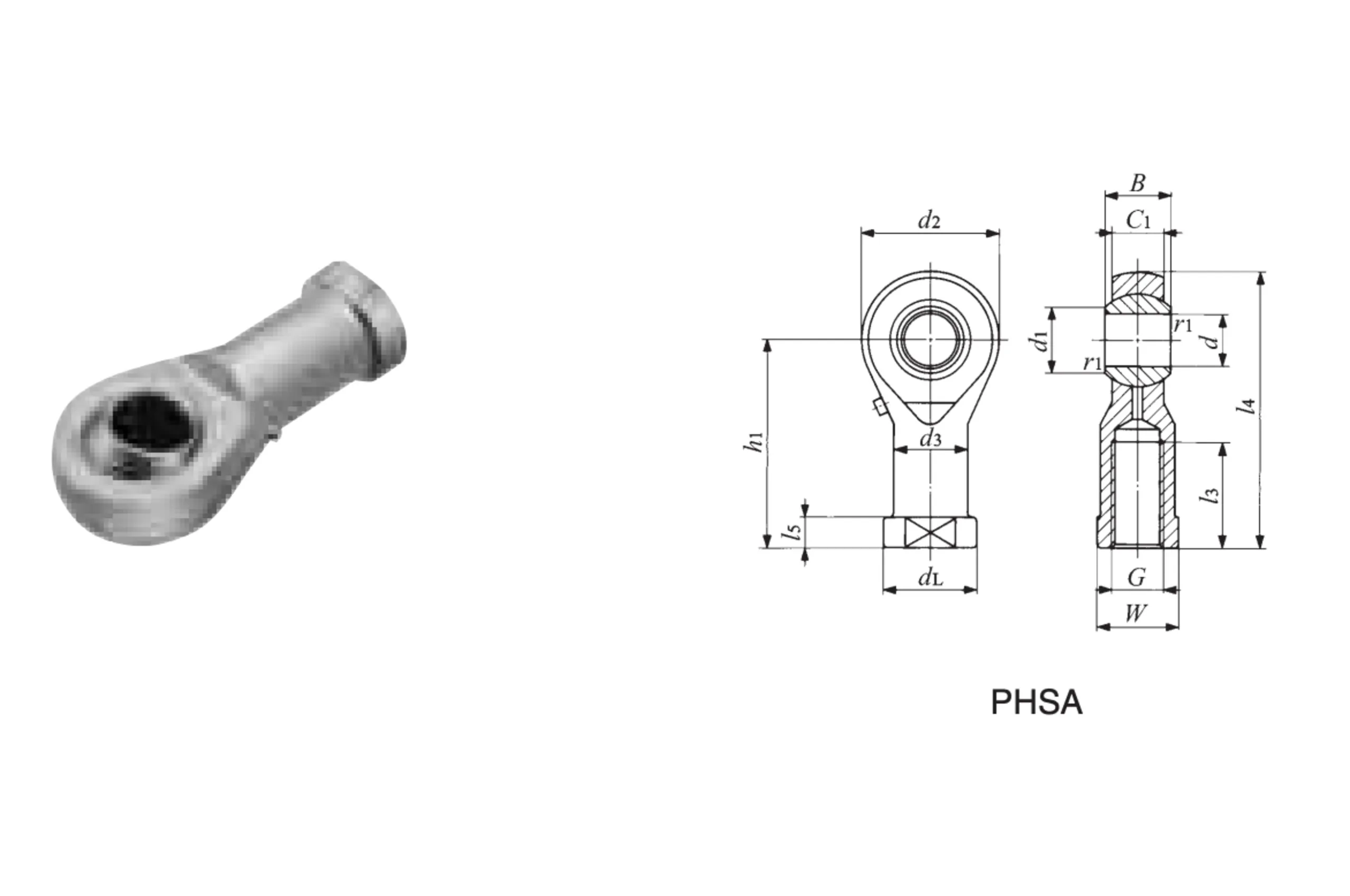

| Identification No. | Mass (g) | Thread G | d | d2 | C1 | B | d1 | l4 | h1 | l3 | l5 | W | d3 | dL | r1s min | Ball Dia. (mm) (inch) | Cs (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PHSA 5 | 17 | M5×0.8 | 5 | 17 | 6 | 8 | 7.7 | 35.5 | 27 | 16 | 4 | 9 | 9 | 11 | 0.2 | 11.112 (7/16) | 5470 |
| PHSA 6 | 25 | M6×1 | 6 | 19.5 | 6.75 | 9 | 9 | 39.7 | 30 | 16 | 5 | 11 | 10 | 13 | 0.2 | 12.700 (1/2) | 6760 |
| PHSA 8 | 45 | M8×1.25 | 8 | 24 | 9 | 12 | 10.4 | 48 | 36 | 19 | 5 | 14 | 12.5 | 12.5 | 0.2 | 15.875 (5/8) | 10200 |
| PHSA 10 | 70 | M10×1.5 | 10 | 28 | 10.5 | 14 | 12.9 | 57 | 43 | 23 | 6.5 | 17 | 15 | 15 | 0.2 | 19.050 (3/4) | 13100 |
| PHSA 12 | 105 | M12×1.75 | 12 | 32 | 12 | 16 | 15.4 | 66 | 50 | 27 | 6.5 | 19 | 17.5 | 17.5 | 0.2 | 22.225 (7/8) | 16400 |
| PHSA 14 | 155 | M14×2 | 14 | 36 | 13.5 | 19 | 16.9 | 75 | 57 | 30 | 8 | 22 | 20 | 20 | 0.3 | 25.400 (1) | 20000 |
| PHSA 16 | 190 | M16×2 | 16 | 40 | 15 | 21 | 19.4 | 84 | 64 | 36 | 8 | 22 | 22 | 22 | 0.3 | 28.575 (1 1/8) | 23900 |
| PHSA 18 | 290 | M18×1.5 | 18 | 45 | 16.5 | 23 | 21.9 | 93.5 | 71 | 40 | 10 | 27 | 25 | 25 | 0.3 | 31.750 (1 1/4) | 28800 |
| PHSA 20 | 400 | M20×1.5 | 20 | 49 | 18 | 25 | 24.4 | 101.5 | 77 | 43 | 10 | 30 | 27.5 | 27.5 | 0.3 | 34.925 (1 3/8) | 33400 |
| PHSA 22 | 500 | M22×1.5 | 22 | 54 | 20 | 28 | 25.8 | 111 | 84 | 47 | 12 | 32 | 30 | 30 | 0.3 | 38.100 (1 1/2) | 40400 |
