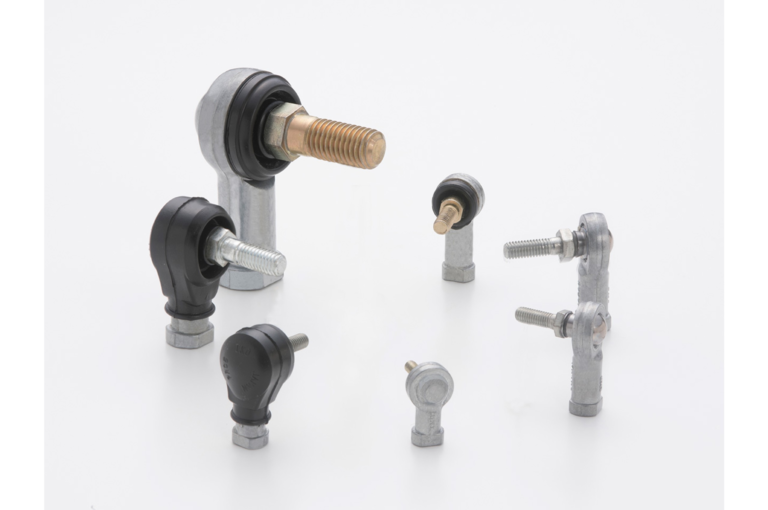

IKO L-Ball Rod Ends (LHSA Series) are highly economical, self-aligning rod ends designed for smooth power transmission and superior motion control in a wide range of automated equipment.
The LHSA series is characterized by its compact design and low-torque rotational capability. They consist of a special die-cast zinc alloy body housing a studded ball whose axis is set at a right angle to the body.
Get a Quote

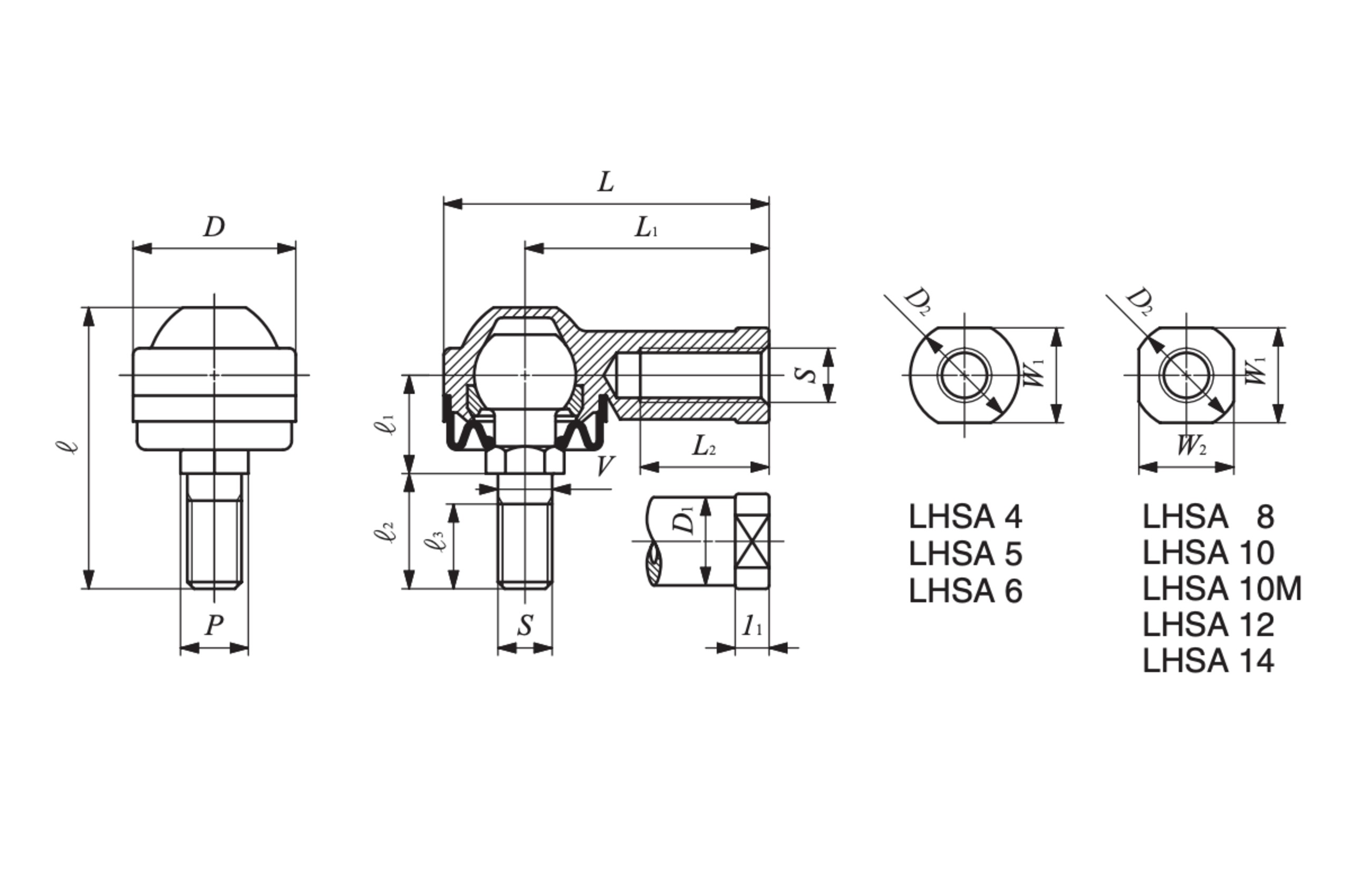

| Identification No. | Mass (g) | Thread S | V | D | L | L₁ | L₂ | l₁ | W₁ | W₂ | D₁ | D₂ | ℓ | P | ℓ₁ | ℓ₂ | ℓ₃ | Ball Dia. (mm) | Static Load Cₛ (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LHSA 4 | 11 | M4 × 0.7 | *4 | 14 | 25 | 18 | 8 | 4 | 8 | — | 8 | 10 | 19.5 | *5.5 | 7 | 7 | 5 | 8 | 880 |
| LHSA 5 | 27 | M5 × 0.8 | 5 | 17 | 38.5 | 30 | 16 | 5 | 10 | — | 10 | 12 | 32.5 | 8 | 12 | 13 | 10 | 11.112 (7/16) | 1180 |
| LHSA 6 | 27 | M6 × 1 | 6 | 19 | 39.5 | 30 | 16 | 5 | 10 | — | 10 | 12 | 32.5 | 8 | 12 | 13 | 10 | 11.112 (7/16) | 1670 |
| LHSA 8 | 64 | M8 × 1.25 | 8 | 24 | 48 | 36 | 19 | 5 | 14 | 14 | 13 | 16 | 41.5 | 10 | 14.5 | 17 | 12.5 | 15 | 4380 |
| LHSA 10 | 106 | M10 × 1.25 | 10 | 28 | 57 | 43 | 23 | 6.5 | 17 | 17 | 15 | 19 | 49 | 12 | 16 | 21 | 17 | 19.050 (3/4) | 7400 |
| LHSA 10M | 106 | M10 × 1.5 | 10 | 28 | 57 | 43 | 23 | 6.5 | 17 | 17 | 15 | 19 | 49 | 12 | 16 | 21 | 17 | 19.050 (3/4) | 7400 |
| LHSA 12 | 180 | M12 × 1.75 | 12 | 34 | 67 | 50 | 27 | 6.5 | 19 | 19 | 17.5 | 22 | 64 | 14 | 20 | 30 | 20 | 22.225 (7/8) | 9900 |
| LHSA 14 | 260 | M14 × 2 | 14 | 38 | 76 | 57 | 30 | 8 | 22 | 20 | 20 | 25 | 72 | 17 | 22.5 | 33.5 | 22 | 25.400 (1) | 14600 |
