  • POWER LOCK ADN SERIES
  • Next Product
  • POWER LOCK AS SERIES

Description

About Product

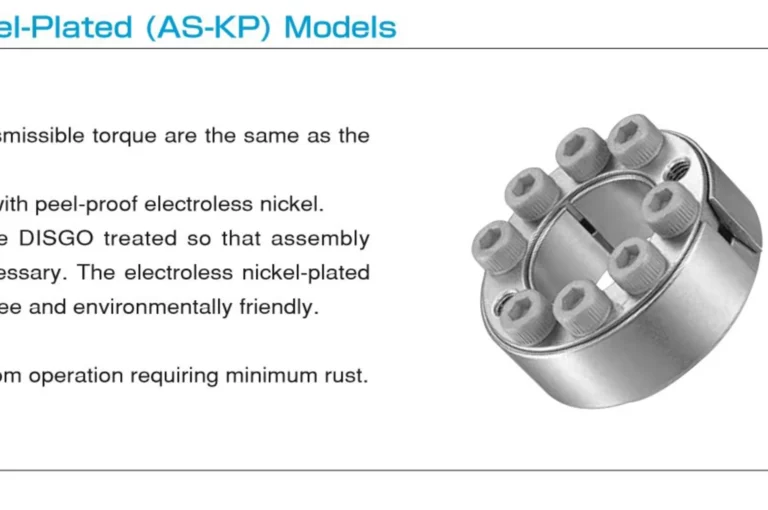

The Tsubaki POWER LOCK AS-KP SERIES is a keyless shaft-hub locking device designed for highly secure, non-backlash connections. It is the Electroless Nickel Plated variant of the standard AS Series, making it the ideal choice for applications requiring enhanced corrosion and rust resistance, such as those in humid, corrosive, or clean room environments.
Get a Quote

Model No. d x D Shaft Diameter X Outer Diameter mm Dimensions mm L Dimensions mm l Dimensions mm Lt Transmissible torque Mt N.m Transmissible torque Mt (kgf.m) Transmissible Thrust pax kN Transmissible Thrust pax (kgf) Shaft Contact Pressure P Mpa Shaft Contact Pressure P (Kgf/mm2) Hub Contact Pressure P’ Mpa Hub Contact Pressure P’ (kgf/mm2) Locking Bolts Qty. Locking Bolts Size Locking Bolts Tightening Torque Ma N-m Locking Bolts Tightening Torque Ma (kgf-m) Mass kg
PL019X047AS-KP 20 18 26 245 25 26.5 2700 210 21.4 85 8.7 6 M6X18 16.7 1.7 0.2
PL020X047AS-KP 20 18 26 265 27 26.5 2700 199 20.3 85 8.7 6 M6X18 16.7 1.7 0.2
PL022X047AS-KP 20 18 26 294 30 26.5 2700 181 18.5 85 8.7 6 M6X18 16.7 1.7 0.19
PL024X050AS-KP 20 18 26 402 41 33.3 3400 211 21.5 101 10.3 8 M6X18 16.7 1.7 0.22
PL025X050AS-KP 20 18 26 421 43 33.3 3400 203 20.7 101 10.3 8 M6X18 16.7 1.7 0.22
PL028X055AS-KP 20 18 26 470 48 33.3 3400 180 18.4 92 9.4 8 M6X18 16.7 1.7 0.25
PL030X055AS-KP 20 18 26 510 52 33.3 3400 169 17.2 92 9.4 8 M6X18 16.7 1.7 0.24
PL032X060AS-KP 20 18 26 676 69 42.1 3400 198 20.2 106 10.8 10 M6X18 16.7 1.7 0.27
PL035X060AS-KP 20 18 26 745 76 42.1 4300 181 18.5 106 10.8 10 M6X18 16.7 1.7 0.27
PL038X065AS-KP 20 18 26 892 91 47 4800 183 18.7 107 10.9 11 M6X18 16.7 1.7 0.3
PL040X065AS-KP 20 18 26 941 96 47 4800 174 17.8 107 10.9 11 M8X18 16.7 1.7 0.3
PL042X075AS-KP 24 21 32 1490 152 70.6 7200 214 21.8 121 12.3 9 M8X22 40.2 4.1 0.51
PL045X075AS-KP 24 21 32 1600 163 70.6 7200 200 20.4 121 12.3 9 M8X22 40.2 4.1 0.51
PL048X080AS-KP 24 21 32 1700 173 70.6 7200 188 19.2 113 11.5 9 M8X22 40.2 4.1 0.55
PL050X080AS-KP 24 21 32 1770 181 70.6 7200 180 18.4 113 11.5 9 M8X22 40.2 4.1 0.55
PL055X085AS-KP 24 21 32 2390 244 86.2 8800 201 20.5 130 13.3 11 M8X22 40.2 4.1 0.6
PL060X090AS-KP 24 21 32 2610 266 86.2 8800 184 18.8 123 12.5 11 M8X22 40.2 4.1 0.64
PL065X095AS-KP 24 21 32 3090 315 94.1 9600 184 18.8 126 12.9 12 M8X22 40.2 4.1 0.69
PL070X110AS-KP 28 25 38 4800 490 138 14100 210 21.4 133 13.6 11 M10X25 81.3 8.3 1.21
PL075X115AS-KP 28 25 38 5190 530 138 14100 196 20 127 13 11 M10X25 81.3 8.3 1.27
PL080X120AS-KP 28 25 38 5490 560 138 14100 184 18.8 123 12.5 11 M10X25 81.3 8.3 1.33
PL085X125AS-KP 28 25 38 6370 650 150 15300 189 19.3 128 13.1 12 M10X25 81.3 8.3 1.41
PL090X130AS-KP 28 25 38 6760 690 150 15300 178 18.2 123 12.6 12 M10X25 81.3 8.3 1.47
PL095X135AS-KP 28 25 38 7740 790 163 16600 183 18.7 129 13.2 13 M10X25 81.3 8.3 1.54
PL100X145AS-KP 33 29 45 10000 1020 201 20500 184 18.8 127 13 11 M12X30 142 14.5 2.09
PL110X155AS-KP 33 29 45 11100 1130 201 20500 168 17.1 120 12.2 11 M12X30 142 14.5 2.25
PL120X165AS-KP 33 29 45 13100 1340 220 22400 168 17.1 123 12.5 12 M12X30 142 14.5 2.42
PL130X180AS-KP 38 34 50 17800 1820 274 28000 166 16.9 120 12.2 15 M12X35 142 14.5 3.38
PL140X190AS-KP 38 34 50 20500 2090 292 29800 164 16.7 121 12.3 16 M12X35 142 14.5 3.59
PL150X200AS-KP 38 34 50 24700 2520 329 33600 172 17.5 129 13.2 18 M12X35 142 14.5 3.82
PL160X210AS-KP 38 34 50 27700 2830 347 35400 170 17.3 129 13.2 19 M12X35 142 14.5 4.03
PL170X225AS-KP 44 40 58 34100 3480 402 41000 157 16 119 12.1 16 M14X40 225 23 5.49
PL180X235AS-KP 44 40 58 38400 3920 426 43500 158 16.1 121 12.3 17 M14X40 225 23 5.78
PL190X250AS-KP 52 48 66 47600 4860 502 51200 147 15 112 11.4 20 M14X45 225 23 7.89
PL200X260AS-KP 52 48 66 52700 5380 527 53800 146 14.9 113 11.5 21 M14X45 225 23 8.26
PL220X285AS-KP 56 51 72 69100 7050 628 64100 149 15.2 115 11.7 18 M16X50 348 35.5 10.6
PL240X305AS-KP 56 51 72 83800 8550 698 71200 152 15.5 120 12.2 20 M16X50 348 35.5 11.5
PL260X325AS-KP 56 51 72 104000 10600 803 81900 161 16.4 129 13.2 23 M16X50 348 35.5 12.4
PL280X355AS-KP 66 61 84 129000 13200 923 94200 144 14.7 114 11.6 22 M18X60 475 48.5 18.7
PL300X375AS-KP 66 61 84 151000 15400 1000 102000 147 15 118 12 24 M18X60 475 48.5 19.9
