  • POWER LOCK EL SERIES

Description

About Product

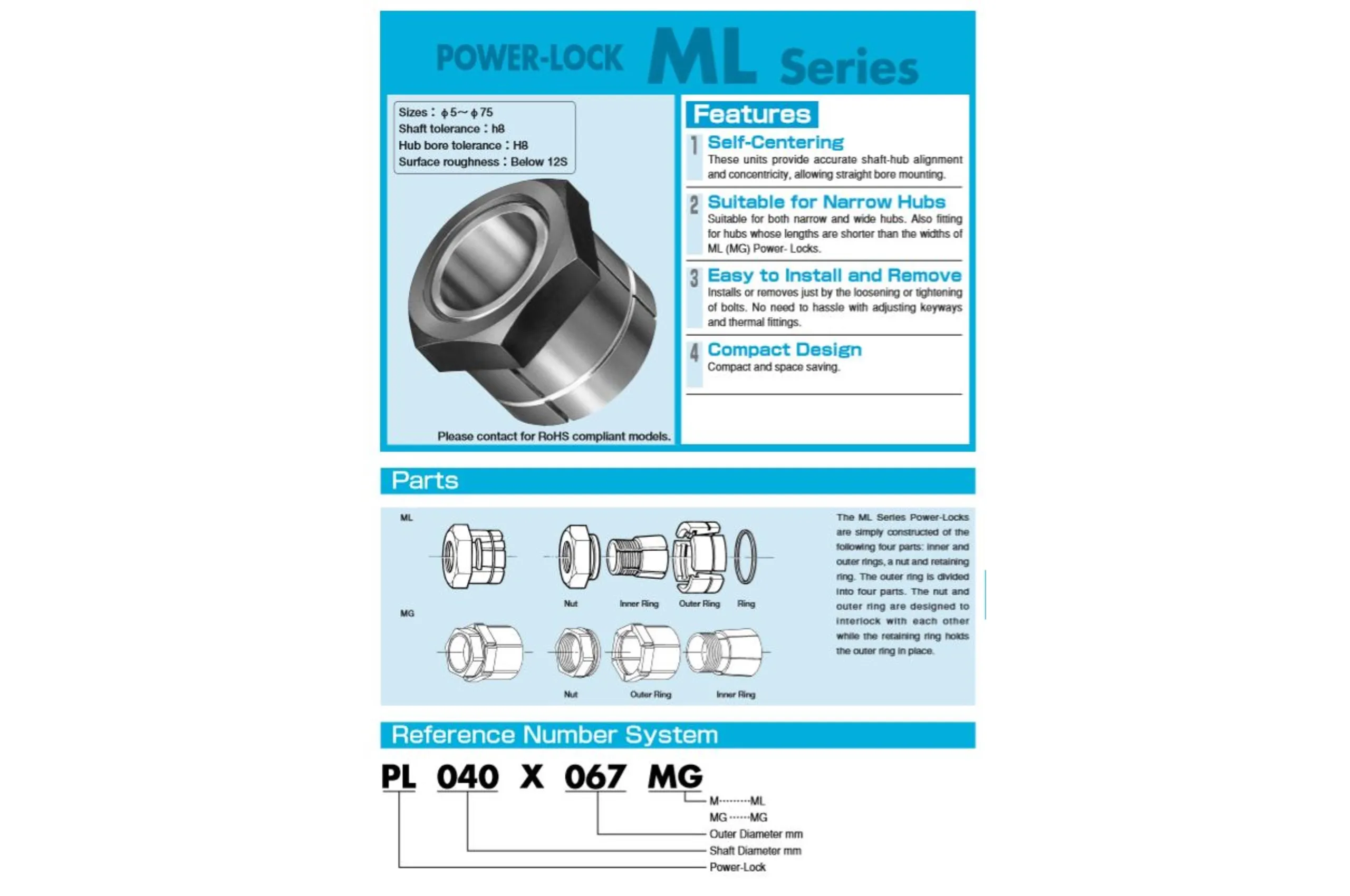

The Tsubaki POWER LOCK ML Series (ML/MG Types) are single-taper shaft-hub locking devices characterized by their unique, single-nut fastening structure, allowing for exceptionally quick and simple installation. These devices provide a highly secure, backlash-free connection between a shaft and a hub without the need for keys or splines.
Get a Quote

Model No.
d x D
Shaft Diameter x Outer Diameter(mm)		 Dimensions
Lt(mm)		 Dimensions
L(mm)		 Dimensions
L2(mm)		 Dimensions
L(mm)		 Dimensions
W(mm)		 Dimensions
C(mm)		 Transmissible Torque
Mt(N.m)		 Transmissible Torque
Mt(kgf.m)		 Transmissible Thrust
Pax(kN)		 Transmissible Torque
Mt(kgf.m)		 Contact Pressure Shaft
P(MPa)		 Contact Pressure Shaft
P(kgf/mm²)		 Contact Pressure Hub
P'(MPa)		 Contact Pressure Hub
P'(kgf/mm²)		 Tightening Torque
MA(N.m)		 Tightening Torque
MA(kgf.m)		 Mass
(kg)
PL005X016M 15 10 5 14 17 19.6 6.76 0.69 2.65 270 181 18.5 45 4.6 5.39 0.55 0.02
PL006X016M 15 10 5 14 17 19.6 8.13 0.83 2.65 270 161 16.4 45 4.6 5.39 0.02 0.02
PL007X021M 21 14 7 20 22 25.4 22.5 2.3 6.57 670 179 18.3 60 6.1 16.7 1.7 0.05
PL008X021M 21 14 7 20 22 25.4 26.5 2.7 6.57 670 163 16.6 60 6.1 16.7 1.7 0.05
PL009X021M 21 14 7 20 22 25.4 29.4 3 6.57 670 150 15.3 60 6.1 16.7 1.7 0.05
PL010X024M 22 14 8 21 24 27.7 42.1 4.3 8.43 860 180 18.4 68 6.9 24.5 2.5 0.06
PL011X024M 22 14 8 21 24 27.7 46.1 4.7 8.43 860 172 17.5 68 6.9 24.5 2.5 0.06
PL012X024M 22 14 8 21 24 27.7 50 5.1 8.43 860 164 16.7 68 6.9 24.5 2.5 0.06
PL014X031M 27 17 10 26 32 37 108 11 16.1 1640 186 19 81 8.3 60.8 6.2 0.13
PL015X031M 27 17 10 26 32 37 118 12 16.1 1640 179 18.3 81 8.3 60.8 6.2 0.13
PL016X031M 27 17 10 26 32 37 127 13 16.1 1640 173 17.7 81 8.3 60.8 6.2 0.12
PL017X036M 33 21 12 32 36 41.6 196 20 22.8 2330 181 18.5 80 8.2 104 10.6 0.2
PL018X036M 33 21 12 32 36 41.6 206 21 22.8 2330 175 17.9 80 8.2 104 10.6 0.19
PL019X036M 33 21 12 32 36 41.6 216 22 22.8 2330 171 17.4 80 8.2 104 10.6 0.19
PL020X041M 35 23 12 34 41 47.3 245 25 24.9 2540 156 15.9 71 7.2 129 13.2 0.27
PL022X041M 35 23 12 34 41 47.3 274 28 24.9 2540 149 15.2 71 7.2 129 13.2 0.25
PL024X041M 35 23 12 34 41 47.3 294 30 24.9 2540 144 14.7 71 7.2 129 13.2 0.23
PL025X046M 37 25 12 36 46 53.1 374 38 30.1 3070 138 14.1 70 7.1 178 18.2 0.33
PL028X046M 37 25 12 36 46 53.1 421 43 30.1 3070 131 13.4 70 7.1 178 18.2 0.3
PL030X050M 41 28 13 40 50 57.7 451 46 30.1 3070 111 11.3 66 6.7 274 28 0.41
PL032X050M 41 28 12 40 50 57.7 480 49 30.1 3070 104 10.6 66 6.7 274 28 0.37
PL034X060MG D=60.5 70 38 13 – 50 60.3 570 58 33.7 3430 65 6.6 39 4 260 26.6 0.77
PL035X060MG D=60.5 70 38 13 – 50 60.3 590 60 33.7 3430 63 6.4 39 4 260 26.6 0.77
PL036X060MG D=60.5 70 38 13 – 50 60.3 600 61 33.7 3430 61 6.2 39 4 260 26.6 0.77
PL038X060MG D=60.5 70 38 13 – 50 60.3 640 65 33.7 3430 58 5.9 39 4 260 26.6 0.77
PL040X067MG 79.5 43 17.5 – 60 66.7 720 73 36.2 3690 53 5.4 34 3.5 316 32.3 1.05
PL042X067MG 79.5 43 17.5 – 60 66.7 760 77 36.2 3690 51 5.2 34 3.5 316 32.3 1.05
PL045X067MG 79.5 43 17.5 – 60 66.7 810 82 36.2 3690 47 4.8 34 3.5 316 32.3 1.05
PL048X073MG 90.5 51 19 – 65 73 1350 137 57.5 5860 60 6.1 42 4.3 554 56.6 1.36
PL050X073MG 90.5 51 19 – 65 73 1430 145 57.5 5860 57 5.8 42 4.3 554 56.6 1.36
PL055X080MG 95.3 54 20.5 – 70 79.4 1560 159 56.8 5790 49 5 38 3.9 600 61.3 2.13
PL060X086MG 98.4 57.2 19 – 75 85.7 1650 168 55.1 5620 41 4.2 30 3.1 635 64.8 2.27
PL065X092MG 103.2 60.3 20.5 – 82 92.1 1770 180 54.5 5560 36 3.7 27 2.8 680 69.4 2.68
PL070X092MG 103.2 60.3 20.5 – 85 92.1 1900 193 54.5 5560 33 3.4 27 2.8 680 69.4 2.68
PL075X100MG 108 63.5 20.5 – 90 98.4 200 204 56 5710 30 3.1 24 2.4 750 76.6 2.72
