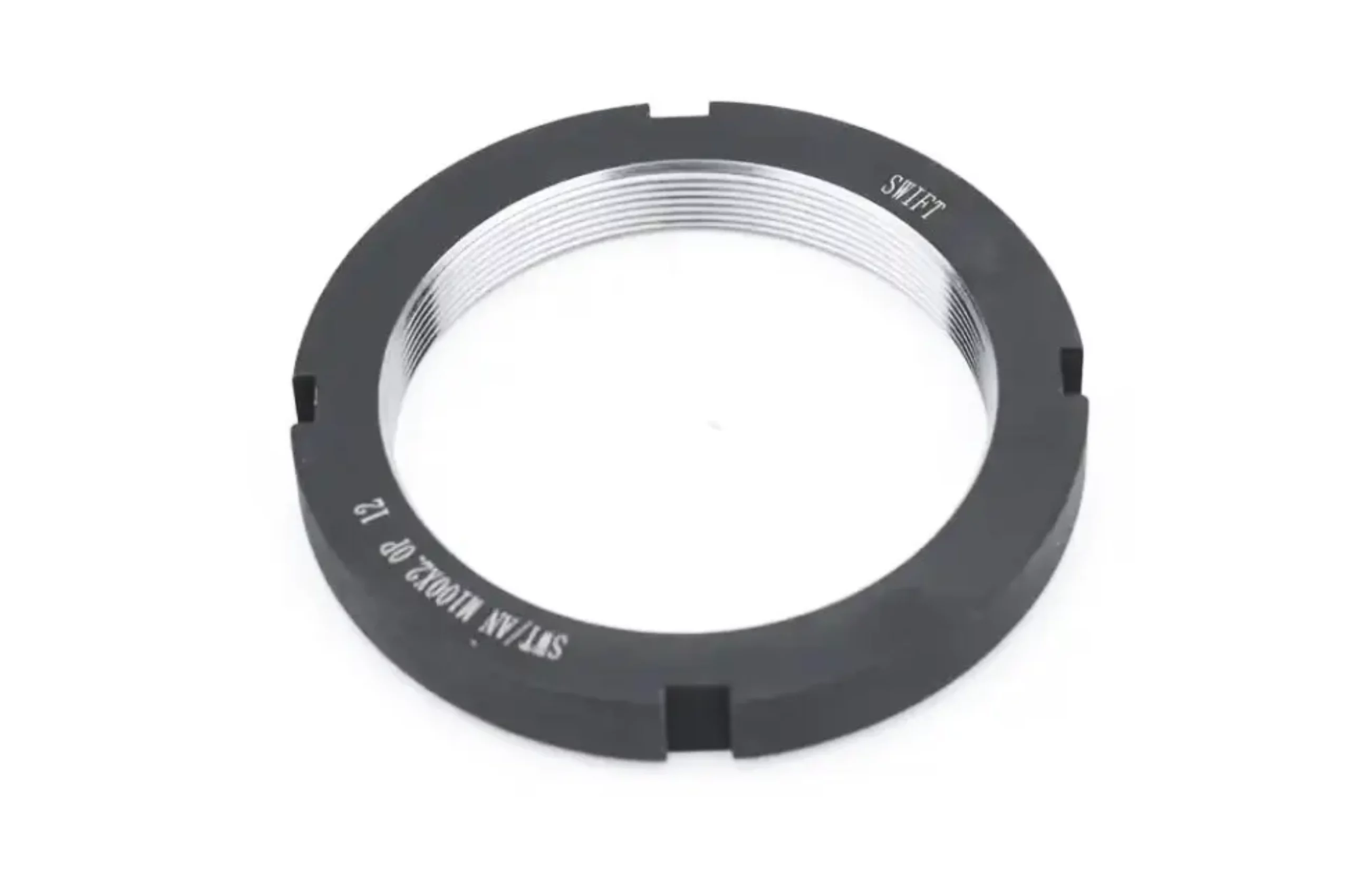

SWT/AN series The structure is simple. Inner thread and end surface are manufactured at the same time so that the Run out can be ensured. Material: Material: 42CrMo,45#, 40Cr Hardness: HRC28°—32° Thread Precision: ISO4H Run Out: 0.005mm
Description of the dimensions 1
Get a Quote
| Thread | D | h | g | t | d |
|---|---|---|---|---|---|
| AN0M10X0.75P | 18 | 4 | 3 | 2 | 13.5 |
| AN 1 M12X1.0P | 22 | 4 | 3 | 2 | 17 |
| AN 2 M15x1 .OP | 25 | 5 | 4 | 2 | 21 |
| AN 3 M17x1 .OP | 28 | 5 | 4 | 2 | 22 |
| AN 4 M20x1 .OP | 32 | 6 | 4 | 2 | 26 |
| AN5M25X1.5P | 38 | 7 | 5 | 2 | 32 |
| AN6M30x1.5P | 45 | 7 | 5 | 2 | 38 |
| AN7M35X1.5P | 52 | 8 | 5 | 2 | 44 |
| AN8M40X1.5P | 58 | 9 | 6 | 2.5 | 50 |
| AN9M45X1.5P | 65 | 10 | 6 | 2.5 | 56 |
| AN 10M50X1.5P | 70 | 11 | 6 | 2.5 | 61 |
| AN 11 M55X2.0P | 75 | 11 | 7 | 3 | 67 |
| AN 12M60x2.0P | 80 | 11 | 7 | 3 | 73 |
| AN 13M65X2.0P | 85 | 12 | 7 | 3 | 79 |
| AN 14M70x2.0P | 92 | 12 | 8 | 3.5 | 84 |
| AN 15M75x2.0P | 98 | 13 | 8 | 3.5 | 90 |
| AN 16M80x2.0P | 105 | 15 | 8 | 3.5 | 95 |
| AN 17M85x2.0P | 110 | 16 | 8 | 3.5 | 102 |
| AN 18M90X2.0P | 120 | 16 | 10 | 4 | 108 |
| AN 19M95x2.0P | 125 | 17 | 10 | 4 | 113 |
| AN 20M100X2.0P | 130 | 18 | 10 | 4 | 120 |
| AN 21 M105x2.OP | 140 | 18 | 12 | 5 | 126 |
| AN 22 M110X2.0P | 145 | 19 | 12 | 5 | 133 |
| AN 23M115x2.0P | 150 | 19 | 12 | 5 | 137 |
| AN 24M120X2.0P | 155 | 20 | 12 | 5 | 138 |
| AN 25M125X2.0P | 160 | 21 | 12 | 5 | 148 |
| AN 26M130x2.0P | 165 | 21 | 12 | 5 | 149 |
| AN 27M135X2.0P | 175 | 22 | 14 | 6 | 160 |
| AN 28M140x2.0P | 180 | 22 | 14 | 6 | 160 |
| AN 29M145X2.0P | 190 | 24 | 14 | 6 | 172 |
| AN 30M150x2.0P | 195 | 24 | 14 | 6 | 171 |
| AN 31 M155X2.0P | 200 | 25 | 16 | 7 | 182 |
| AN 32M160X3.0P | 210 | 25 | 16 | 7 | 182 |
| AN 33M165X3.0P | 210 | 26 | 16 | 7 | 193 |
| AN 34 M170x3.0P | 220 | 26 | 16 | 7 | 193 |
| AN 36M180x3.0P | 230 | 27 | 18 | 8 | 203 |
| AN 38M190x3.0P | 240 | 28 | 18 | 8 | 214 |
| AN 40 M200X3.0P | 250 | 29 | 18 | 8 | 226 |
