SWT/K series 4 to 6 high-strength bolts are applied by a SWT/K series lock nut. It is locked by the axial deformation of its thread. It is suitable for severe working environment where nuts may easily been loosen and high torque is required. Run out can be adjusted by adjusting the tightening force of the axial screw. Material: 42CrMo,45#, 40Cr Hardness: HRC28°—32° Thread Precision: ISO4H Run Out: 0.007mm

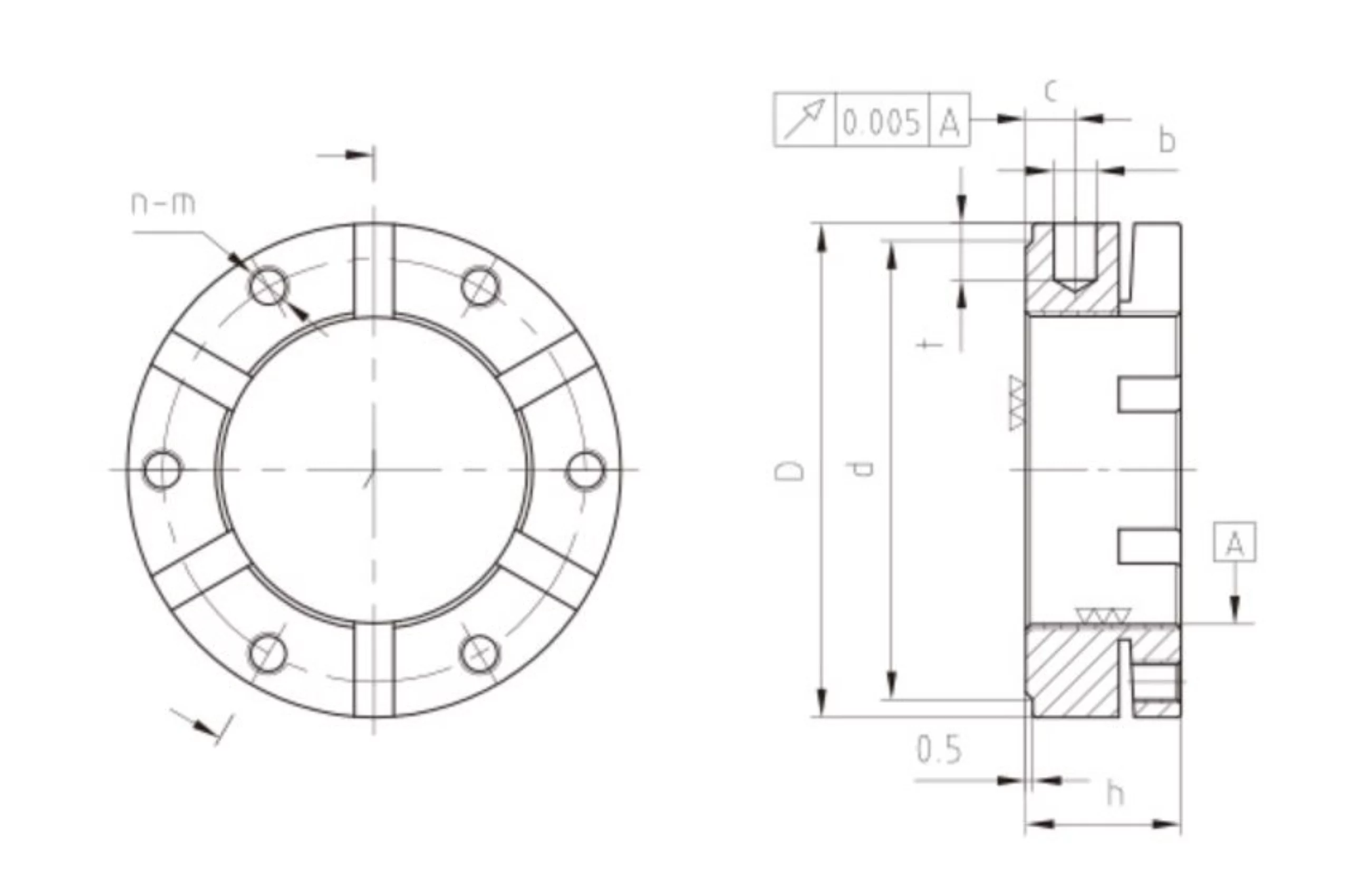

Description of the dimensions 1
Get a Quote
| Thread | D | h | d | n-m | t | C | b | MAX.Nm |
|---|---|---|---|---|---|---|---|---|
| SWT/N M16x1.5 | 30 | 18 | 26 | 4-M5 | 5 | 5.5 | 4 | 4.5 |
| SWT/N M17x1.0 | 32 | 18 | 28 | 4-M5 | 5 | 5.5 | 4 | 4.5 |
| SWT/N M17X1.5 | 32 | 18 | 28 | 4-M5 | 5 | 5.5 | 4 | 4.5 |
| SWT/N M18X1.5 | 36 | 18 | 32 | 4-M5 | 6 | 5.5 | 4 | 4.8 |
| SWT/N M20X1.5 | 38 | 18 | 34 | 4-M6 | 6 | 5.5 | 4 | 8 |
| SWT/N M22X1.5 | 40 | 18 | 36 | 4-M6 | 6 | 5.5 | 4 | 8 |
| SWT/N M24X1.5 | 45 | 18 | 41 | 4-M6 | 7 | 5.5 | 5 | 8 |
| SWT/N M25X1.5 | 45 | 20 | 41 | 4-M6 | 7 | 6 | 5 | 8 |
| SWT/N M27X1.5 | 46 | 20 | 42 | 4-M6 | 7 | 6 | 5 | 8 |
| SWT/N M28X1.5 | 46 | 20 | 42 | 4-M6 | 7 | 6 | 5 | 8 |
| SWT/N M30X1.5 | 52 | 20 | 48 | 4-M6 | 7 | 6 | 5 | 8 |
| SWT/N M32x1.5 | 54 | 22 | 49 | 4-M6 | 7 | 7 | 6 | 8 |
| SWT/N M33X1.5 | 54 | 22 | 49 | 4-M6 | 7 | 7 | 6 | 8 |
| SWT/N M35X1.5 | 58 | 22 | 53 | 4-M6 | 7 | 7 | 6 | 8 |
| SWT/N M36X1.5 | 58 | 22 | 53 | 4-M6 | 7 | 7 | 6 | 8 |
| SWT/N M38X1.5 | 60 | 22 | 55 | 4-M6 | 8 | 7 | 6 | 8 |
| SWT/N M39X1.5 | 60 | 22 | 55 | 4-M6 | 8 | 7 | 6 | 8 |
| SWT/N M40X1.5 | 65 | 22 | 60 | 4-M6 | 8 | 7 | 6 | 8 |
| SWT/N M42X1.5 | 65 | 22 | 60 | 4-M6 | 8 | 7 | 6 | 8 |
| SWT/N M45X1.5 | 70 | 22 | 65 | 6-M6 | 8 | 7 | 6 | 8 |
| SWT/N M48X1.5 | 75 | 25 | 70 | 6-M6 | 8 | 8 | 6 | 8 |
| SWT/N M50X1.5 | 75 | 25 | 70 | 6-M6 | 8 | 8 | 6 | 8 |
| SWT/N M52X1.5 | 80 | 25 | 74 | 6-M8 | 8 | 8 | 6 | 8 |
| SWT/N M55X1.5 | 85 | 25 | 79 | 6-M8 | 8 | 8 | 6 | 18 |
| SWT/N M55X2.0 | 85 | 25 | 79 | 6-M8 | 8 | 8 | 6 | 18 |
| SWT/N M56x2.0 | 85 | 26 | 79 | 6-M8 | 8 | 8 | 6 | 18 |
| SWT/N M60X2.0 | 90 | 26 | 84 | 6-M8 | 10 | 8 | 6 | 18 |
| SWT/N M64X2.0 | 95 | 28 | 89 | 6-M8 | 10 | 8.5 | 8 | 18 |
| SWT/N M65X2.0 | 95 | 28 | 89 | 6-M8 | 10 | 8.5 | 8 | 18 |
| SWT/N M68x2.0 | 98 | 28 | 91 | 6-M8 | 10 | 8.5 | 8 | 18 |
| SWT/N M70X2.0 | 100 | 28 | 93 | 6-M8 | 10 | 9 | 8 | 18 |
| SWT/N M75X2.0 | 106 | 28 | 99 | 6-M10 | 10 | 9 | 8 | 35 |
| SWT/N M80x2.0 | 110 | 30 | 103 | 6-M10 | 10 | 9.5 | 8 | 35 |
| SWT/N M85x2.0 | 115 | 32 | 108 | 6-M10 | 10 | 10 | 8 | 35 |
| SWT/N M90X2.0 | 120 | 32 | 112 | 6-M10 | 10 | 10 | 8 | 35 |
| SWT/N M95x2.0 | 125 | 32 | 117 | 6-M10 | 10 | 10 | 8 | 35 |
| SWT/N M100x2.0 | 130 | 32 | 122 | 8-M10 | 10 | 10 | 8 | 35 |
| SWT/N M 105×2.0 | 135 | 32 | 125 | 8-M10 | 10 | 10 | 8 | 35 |
| SWT/N M110x2.0 | 140 | 32 | 130 | 8-M10 | 10 | 10.5 | 8 | 35 |
| SWT/N M115x2.0 | 145 | 34 | 135 | 8-M10 | 10 | 10.5 | 8 | 35 |
| SWT/N M 120×2.0 | 150 | 36 | 140 | 8-M10 | 10 | 11 | 10 | 35 |
| SWT/N M 125×2.0 | 160 | 36 | 150 | 8-M10 | 10 | 11 | 10 | 35 |
| SWT/N M 130×2.0 | 165 | 36 | 155 | 8-M10 | 10 | 11 | 10 | 35 |
| SWT/N M 135×2.0 | 175 | 38 | 163 | 8-M12 | 10 | 12 | 10 | 60 |
| SWT/N M 140×2.0 | 180 | 38 | 168 | 8-M12 | 10 | 12 | 10 | 60 |
| SWT/N M 145×2.0 | 190 | 38 | 178 | 8-M12 | 10 | 11.5 | 10 | 60 |
| SWT/N M 150×2.0 | 195 | 38 | 183 | 8-M12 | 10 | 12 | 10 | 60 |
| SWT/N M 155×2.0 | 200 | 38 | 186 | 8-M12 | 12 | 11 | 10 | 60 |
| SWT/N M 160×3.0 | 210 | 40 | 196 | 8-M12 | 12 | 12.5 | 12 | 60 |
| SWT/N M 170×3.0 | 220 | 40 | 206 | 8-M12 | 12 | 12.5 | 12 | 60 |
| SWT/N M 180×3.0 | 230 | 40 | 214 | 8-M12 | 12 | 12.5 | 12 | 60 |
| SWT/N M 190×3.0 | 240 | 40 | 224 | 8-M12 | 12 | 12.5 | 12 | 60 |
| SWT/N M200X3.0 | 250 | 40 | 234 | 8-M12 | 12 | 12.5 | 12 | 60 |
