About Product

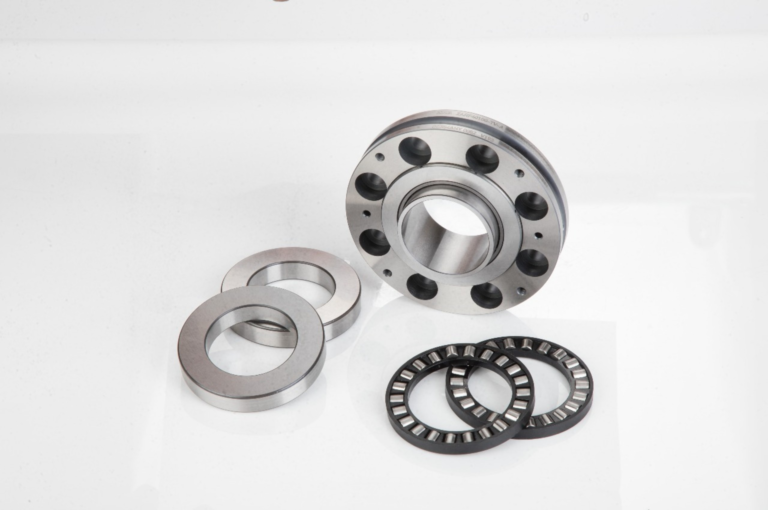

ZARF bearings are double direction, combined axial/radial roller bearings from INA-Schaeffler. They are high-precision components primarily used for supporting and guiding screw drives and other precision mechanical systems that require extremely rigid and precise bearing arrangements.
Get a Quote
| Product | d (mm) | D (mm) | B (mm) | Cr (N) | C0r (N) | Ca (N) | C0a (N) |
|---|---|---|---|---|---|---|---|
| ZARF1560-TV | 15 | 60 | 40 | 13000 | 17500 | 24900 | 53000 |
| ZARF1762-TV | 17 | 62 | 43 | 14000 | 19900 | 26000 | 57000 |
| ZARF2068-TV | 20 | 68 | 46 | 14900 | 22400 | 33500 | 76000 |
| ZARF2080-TV | 20 | 80 | 60 | 22600 | 36000 | 64000 | 141000 |
| ZARF2575-TV | 25 | 75 | 50 | 22600 | 36000 | 35500 | 86000 |
| ZARF2590-TV | 25 | 90 | 60 | 24300 | 41500 | 80000 | 199000 |
| ZARF30105-TV | 30 | 105 | 66 | 26000 | 47000 | 107000 | 265000 |
| ZARF3080-TV | 30 | 80 | 50 | 24300 | 41500 | 39000 | 101000 |
| ZARF35110-TV | 35 | 110 | 66 | 27500 | 53000 | 105000 | 265000 |
| ZARF3590-TV | 35 | 90 | 54 | 26000 | 47000 | 56000 | 148000 |
| ZARF40100-TV | 40 | 100 | 54 | 27500 | 53000 | 59000 | 163000 |
| ZARF40115-TV | 40 | 115 | 75 | 38000 | 74000 | 117000 | 315000 |
| ZARF45105-TV | 45 | 105 | 60 | 38000 | 74000 | 61000 | 177000 |
| ZARF45130-TV | 45 | 130 | 82 | 40000 | 82000 | 154000 | 405000 |
| ZARF50115-TV | 50 | 115 | 60 | 40000 | 82000 | 90000 | 300000 |
| ZARF50140-TV | 50 | 140 | 82 | 46500 | 103000 | 172000 | 480000 |
| ZARF55145-TV | 55 | 145 | 82 | 44000 | 98000 | 177000 | 500000 |
| ZARF60150-TV | 60 | 150 | 82 | 44500 | 92000 | 187000 | 550000 |
| ZARF65155-TV | 65 | 155 | 82 | 54000 | 104000 | 172000 | 500000 |
| ZARF70160-TV | 70 | 160 | 82 | 56000 | 119000 | 201000 | 630000 |
| ZARF75185-TV | 75 | 185 | 100 | 81000 | 132000 | 290000 | 890000 |
| ZARF90210-TV | 90 | 210 | 110 | 98000 | 210000 | 325000 | 1030000 |
| ZARF1560-L-TV | 15 | 60 | 53 | 13000 | 17500 | 24900 | 53000 |
| ZARF1762-L-TV | 17 | 62 | 57 | 14000 | 19900 | 26000 | 57000 |
| ZARF2068-L-TV | 20 | 68 | 60 | 14900 | 22400 | 33500 | 76000 |
| ZARF2080-L-TV | 20 | 80 | 75 | 22600 | 36000 | 64000 | 141000 |
| ZARF2575-L-TV | 25 | 75 | 65 | 22600 | 36000 | 35500 | 86000 |
| ZARF2590-L-TV | 25 | 90 | 75 | 24300 | 41500 | 80000 | 199000 |
| ZARF30105-L-TV | 30 | 105 | 82 | 26000 | 47000 | 107000 | 265000 |
| ZARF3080-L-TV | 30 | 80 | 65 | 24300 | 41500 | 39000 | 101000 |
| ZARF35110-L-TV | 35 | 110 | 82 | 27500 | 53000 | 105000 | 265000 |
| ZARF3590-L-TV | 35 | 90 | 70 | 26000 | 47000 | 56000 | 148000 |
| ZARF40100-L-TV | 40 | 100 | 70 | 27500 | 53000 | 59000 | 163000 |
| ZARF40115-L-TV | 40 | 115 | 93 | 38000 | 74000 | 117000 | 315000 |
| ZARF45105-L-TV | 45 | 105 | 75 | 38000 | 74000 | 61000 | 177000 |
| ZARF45130-L-TV | 45 | 130 | 103 | 40000 | 82000 | 154000 | 405000 |
| ZARF50115-L-TV | 50 | 115 | 78 | 40000 | 82000 | 90000 | 300000 |
| ZARF50140-L-TV | 50 | 140 | 103 | 46500 | 103000 | 172000 | 480000 |
| ZARF55145-L-TV | 55 | 145 | 103 | 44000 | 98000 | 177000 | 500000 |
| ZARF60150-L-TV | 60 | 150 | 103 | 44500 | 92000 | 187000 | 550000 |
| ZARF65155-L-TV | 65 | 155 | 103 | 54000 | 104000 | 172000 | 500000 |
| ZARF70160-L-TV | 70 | 160 | 103 | 56000 | 119000 | 201000 | 630000 |
| ZARF75185-L-TV | 75 | 185 | 125 | 81000 | 132000 | 290000 | 890000 |
| ZARF90210-L-TV | 90 | 210 | 135 | 98000 | 210000 | 325000 | 1030000 |
| DRS1560 | 35 | 60 | 14 | – | – | – | – |
| DRS1762 | 38 | 62 | 15.5 | – | – | – | – |
| DRS2068 | 42 | 68 | 17 | – | – | – | – |
| DRS2575 | 47 | 75 | 17 | – | – | – | – |
| DRS2080 | 52 | 80 | 22 | – | – | – | – |
| DRS3080 | 52 | 80 | 17 | – | – | – | – |
| DRS3590 | 60 | 90 | 19 | – | – | – | – |
| DRS2590 | 62 | 90 | 22 | – | – | – | – |
| DRS40100 | 65 | 100 | 19 | – | – | – | – |
| DRS30105 | 68 | 105 | 25 | – | – | – | – |
| DRS45105 | 70 | 105 | 20 | – | – | – | – |
| DRS35110 | 73 | 110 | 25 | – | – | – | – |
| DRS40115 | 78 | 115 | 27.5 | – | – | – | – |
| DRS50115 | 78 | 115 | 20 | – | – | – | – |
| DRS45130 | 90 | 130 | 31 | – | – | – | – |
| DRS50140 | 95 | 140 | 30 | – | – | – | – |
| DRS55145 | 100 | 145 | 30 | – | – | – | – |
| DRS60150 | 105 | 150 | 30 | – | – | – | – |
| DRS65155 | 110 | 155 | 30 | – | – | – | – |
| DRS70160 | 115 | 160 | 30 | – | – | – | – |
| DRS75185 | 135 | 185 | 36 | – | – | – | – |
| DRS90210 | 160 | 210 | 38 | – | – | – | – |
