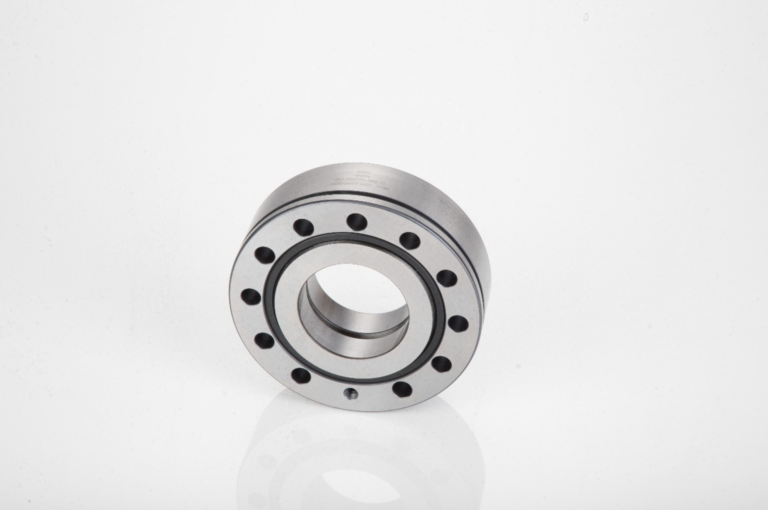

The INA ZKLF series comprises precision, double-row Axial Angular Contact Ball Bearings engineered specifically for high-accuracy screw drive bearing arrangements. These units are designed to meet the demands of applications requiring extremely high rigidity, superior running accuracy, and excellent load-carrying capacity in a compact design.
Get a Quote
| Product | d (mm) | D (mm) | B (mm) | Cr (N) | C0r (N) |
|---|---|---|---|---|---|
| ZKLF100200-2Z-XL | 100 | 200 | 55 | 154000 | 435000 |
| ZKLF100230-2Z | 100 | 230 | 85 | 295000 | 790000 |
| ZKLF1255-2RS-PE | 12 | 55 | 25 | 17100 | 25000 |
| ZKLF1255-2RS-XL | 12 | 55 | 25 | 18800 | 25000 |
| ZKLF1255-2Z-XL | 12 | 55 | 25 | 18800 | 25000 |
| ZKLF1560-2RS-PE | 15 | 60 | 25 | 18000 | 28500 |
| ZKLF1560-2RS-XL | 15 | 60 | 25 | 19800 | 28500 |
| ZKLF1560-2Z-XL | 15 | 60 | 25 | 19800 | 28500 |
| ZKLF1762-2RS-2AP-XL | 17 | 62 | 50 | 34000 | 63000 |
| ZKLF1762-2RS-PE | 17 | 62 | 25 | 18900 | 31500 |
| ZKLF1762-2RS-XL | 17 | 62 | 25 | 20800 | 31500 |
| ZKLF1762-2Z-XL | 17 | 62 | 25 | 20800 | 31500 |
| ZKLF2068-2RS-2AP-XL | 20 | 68 | 56 | 46000 | 94000 |
| ZKLF2068-2RS-PE | 20 | 68 | 28 | 26000 | 47000 |
| ZKLF2068-2RS-XL | 20 | 68 | 28 | 28500 | 47000 |
| ZKLF2068-2Z-XL | 20 | 68 | 28 | 28500 | 47000 |
| ZKLF2575-2RS-2AP-XL | 25 | 75 | 56 | 49000 | 111000 |
| ZKLF2575-2RS-PE | 25 | 75 | 28 | 27500 | 55000 |
| ZKLF2575-2RS-XL | 25 | 75 | 28 | 30500 | 55000 |
| ZKLF2575-2Z-XL | 25 | 75 | 28 | 30500 | 55000 |
