Description

About Product

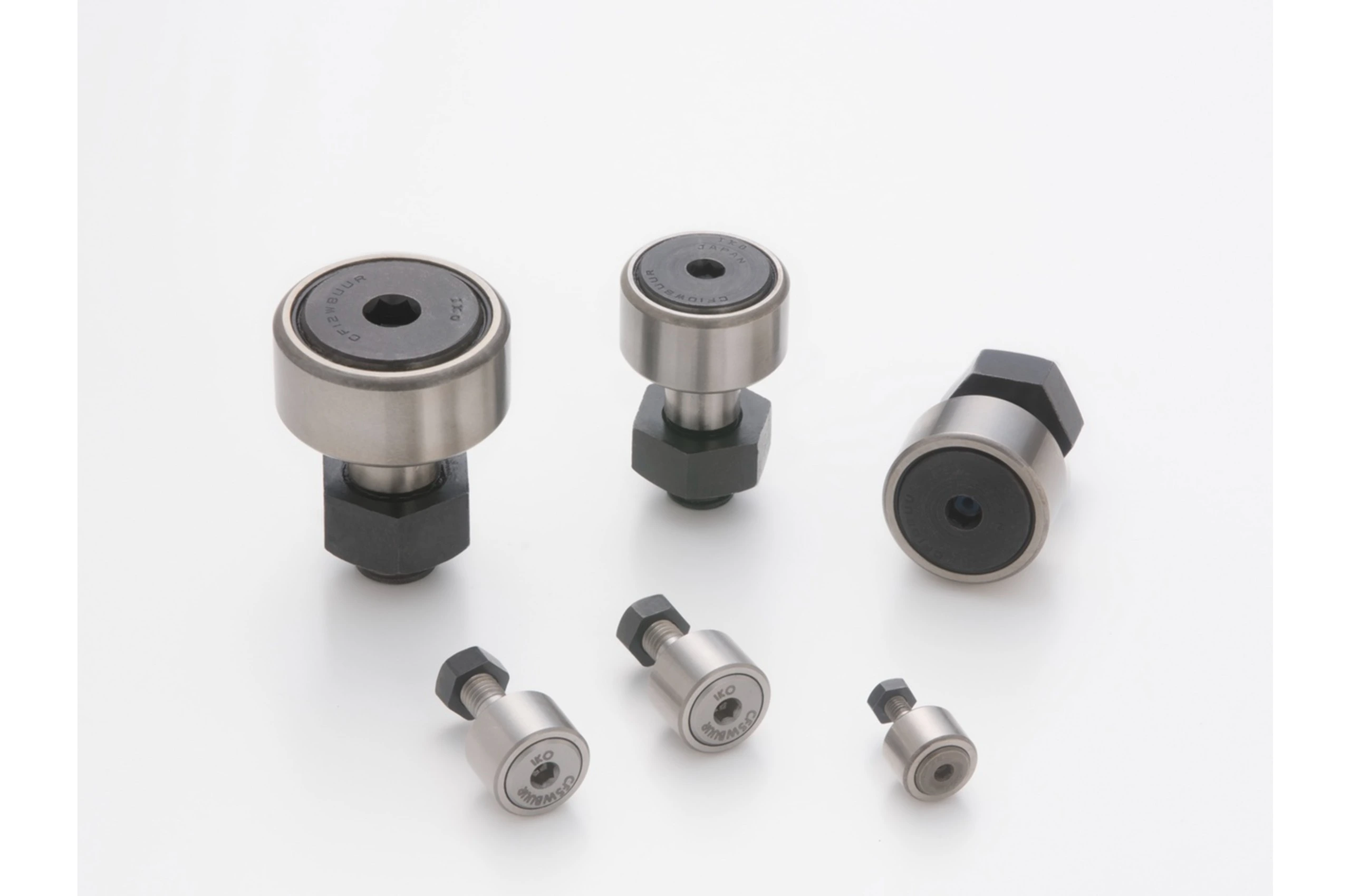

IKO Cam Followers are high-rigidity and high-accuracy bearings designed specifically for cam mechanisms and linear motion applications. The Eccentric Type Cam Followers, designated as the CFE series, incorporate an eccentric stud or eccentric collar, making them especially valuable for precise alignment.
Get a Quote

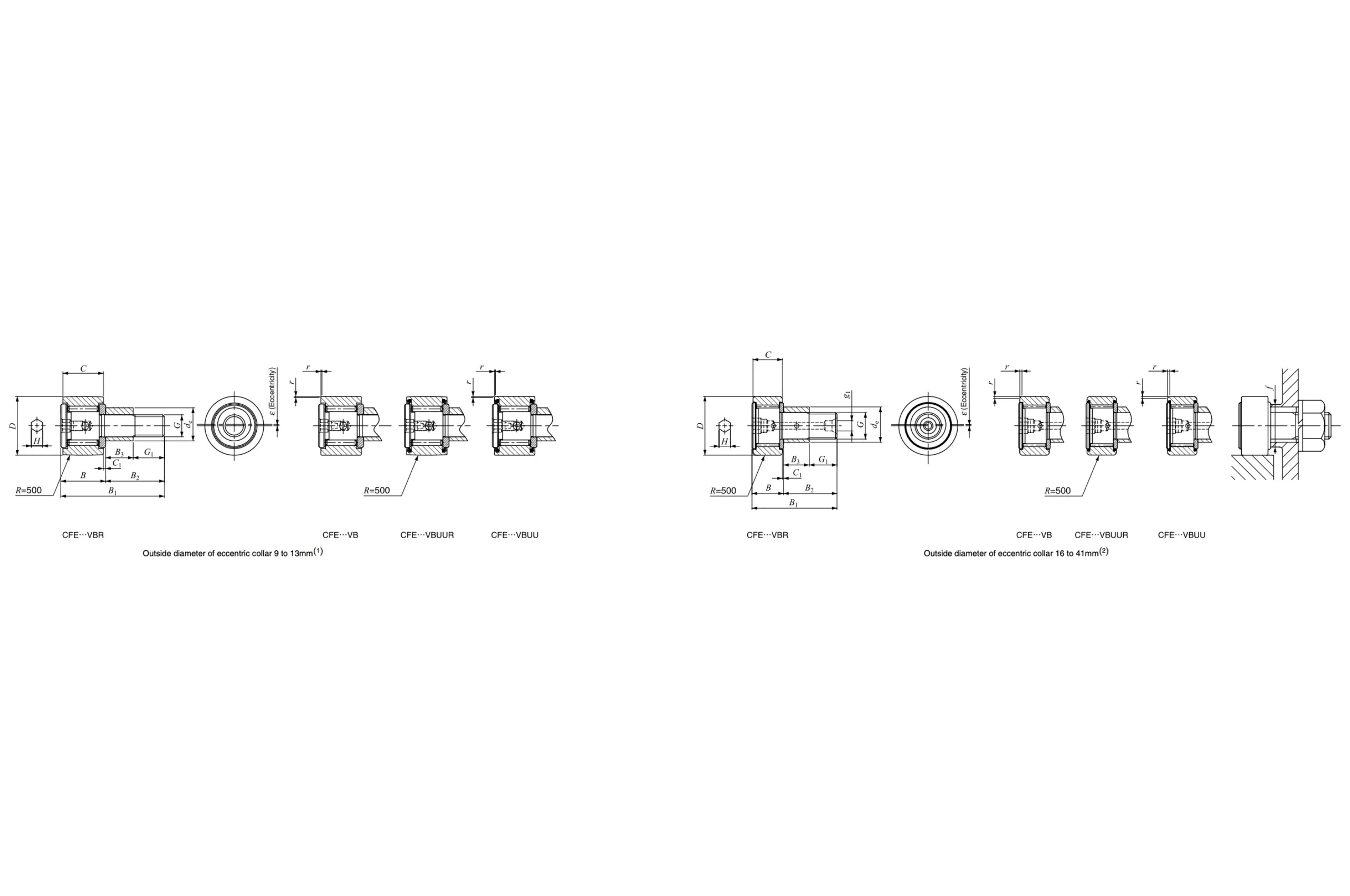

Outside Dia. (mm) Identification No. Mass (g) D (mm) C (mm) de (mm) G B₃ (mm) B max (mm) B₁ max (mm) B₂ (mm) C₁ (mm) g₁ (mm) G₁ (mm) H (mm) rs min (mm) ECENTRICITY ε Mounting dim f min (mm) Torque (N·m) C (N) Co (N) Max Static Load (N)
9 CFE 6 BR 20.5 16 11 9 M6×1 7.5 12.2 28.2 16 0.6 — 8.5 3 0.3 0.4 11 2.7 3660 3650 1950
11 CFE 8 BR 32 19 11 11 M8×1.25 9.5 12.2 32.2 20 0.6 — 10.5 4 0.3 0.4 13 6.5 4250 4740 4620
13 CFE 10 BR 49.5 22 12 13 M10×1.25 10.5 13.2 36.2 23 0.6 — 12.5 4 0.3 0.4 16 13.8 5430 6890 6890
13 CFE 10-1 BR 65 26 12 13 M10×1.25 10.5 13.2 36.2 23 0.6 — 12.5 4 0.3 0.4 16 13.8 5430 6890 6890
16 CFE 12 BR 105 30 14 16 M12×1.5 11.5 15.2 40.2 25 0.6 4 13.5 6 0.6 0.8 21 21.9 7910 9790 9790
16 CFE 12-1 BR 115 32 14 16 M12×1.5 11.5 15.2 40.2 25 0.6 4 13.5 6 0.6 0.8 21 21.9 7910 9790 9790
22 CFE 16 BR 190 35 18 22 M16×1.5 15.5 19.6 52.1 32.5 0.8 4 17 6 0.6 0.8 26 58.5 12000 18300 18300
24 CFE 18 BR 280 40 20 24 M18×1.5 17.5 21.6 58.1 36.5 0.8 6 19 8 1 0.8 29 86.2 14800 25200 25200
27 CFE 20 BR 500 52 24 27 M20×1.5 19.5 25.6 66.1 40.5 0.8 6 21 8 1 0.8 34 119 27000 34600 34600
27 CFE 20-1 BR 425 47 24 27 M20×1.5 19.5 25.6 66.1 40.5 0.8 6 21 8 1 0.8 34 119 20700 34600 34600
33 CFE 24 BR 895 62 29 33 M24×1.5 25.5 30.6 80.1 49.5 0.8 6 24 12 1 0.8 40 215 30500 52600 52000
33 CFE 24-1 BR 1220 72 29 33 M24×1.5 25.5 30.6 80.1 49.5 0.8 6 24 12 1 0.8 40 215 30500 52600 52000
41 CFE 30 BR 2030 80 35 41 M30×1.5 32.5 37 100 63 1 6 30.5 17 1.5 0.9 49 438 45400 85100 85100
41 CFE 30-1 BR 2190 85 35 41 M30×1.5 32.5 37 100 63 1 6 30.5 17 1.5 0.9 49 438 45400 85100 85100
41 CFE 30-2 BR 2380 90 35 41 M30×1.5 32.5 37 100 63 1 6 30.5 17 1.5 0.9 49 438 45400 85100 85100
9 CFE 6 VBR 21 16 11 9 M6×1 7.5 12.2 28.2 16 0.6 — 8.5 3 0.3 0.4 11 2.7 6980 8500 1950
11 CFE 8 VBR 32.5 19 11 11 M8×1.25 9.5 12.2 32.2 20 0.6 — 10.5 4 0.3 0.4 13 6.5 8170 11200 4620
13 CFE 10 VBR 50.5 22 12 13 M10×1.25 10.5 13.2 36.2 23 0.6 — 12.5 4 0.3 0.4 16 13.8 9570 14500 8650
13 CFE 10-1 VBR 66 26 12 13 M10×1.25 10.5 13.2 36.2 23 0.6 — 12.5 4 0.3 0.4 16 13.8 9570 14500 8650
16 CFE 12 VBR 107 30 14 16 M12×1.5 11.5 15.2 40.2 25 0.6 4 13.5 6 0.6 0.8 21 21.9 13500 19700 13200
16 CFE 12-1 VBR 117 32 14 16 M12×1.5 11.5 15.2 40.2 25 0.6 4 13.5 6 0.6 0.8 21 21.9 13500 19700 13200
22 CFE 16 VBR 193 35 18 22 M16×1.5 15.5 19.6 52.1 32.5 0.8 4 17 6 0.6 0.8 26 58.5 20700 37600 23200
24 CFE 18 VBR 285 40 20 24 M18×1.5 17.5 21.6 58.1 36.5 0.8 6 19 8 1 0.8 29 86.2 25300 51300 31100
27 CFE 20 VBR 505 52 24 27 M20×1.5 19.5 25.6 66.1 40.5 0.8 6 21 8 1 0.8 34 119 33200 64500 37500
27 CFE 20-1 VBR 430 47 24 27 M20×1.5 19.5 25.6 66.1 40.5 0.8 6 21 8 1 0.8 34 119 33200 64500 37500
33 CFE 24 VBR 900 62 29 33 M24×1.5 25.5 30.6 80.1 49.5 0.8 6 24 12 1 0.8 40 215 46600 92000 52000
33 CFE 24-1 VBR 1220 72 29 33 M24×1.5 25.5 30.6 80.1 49.5 0.8 6 24 12 1 0.8 40 215 46600 92000 52000
41 CFE 30 VBR 2030 80 35 41 M30×1.5 32.5 37 100 63 1 6 30.5 17 1.5 0.9 49 438 67700 144000 85900
41 CFE 30-1 VBR 2190 85 35 41 M30×1.5 32.5 37 100 63 1 6 30.5 17 1.5 0.9 49 438 67700 144000 85900
41 CFE 30-2 VBR 2380 90 35 41 M30×1.5 32.5 37 100 63 1 6 30.5 17 1.5 0.9 49 438 67700 144000 85900
