Description
About Product
The LS Series Thrust Washer Bearings from INA / Schaeffler are high-precision, hardened thrust washers designed to accompany axial needle roller assemblies. They are used to support axial loads in applications where compactness and accuracy are essential.

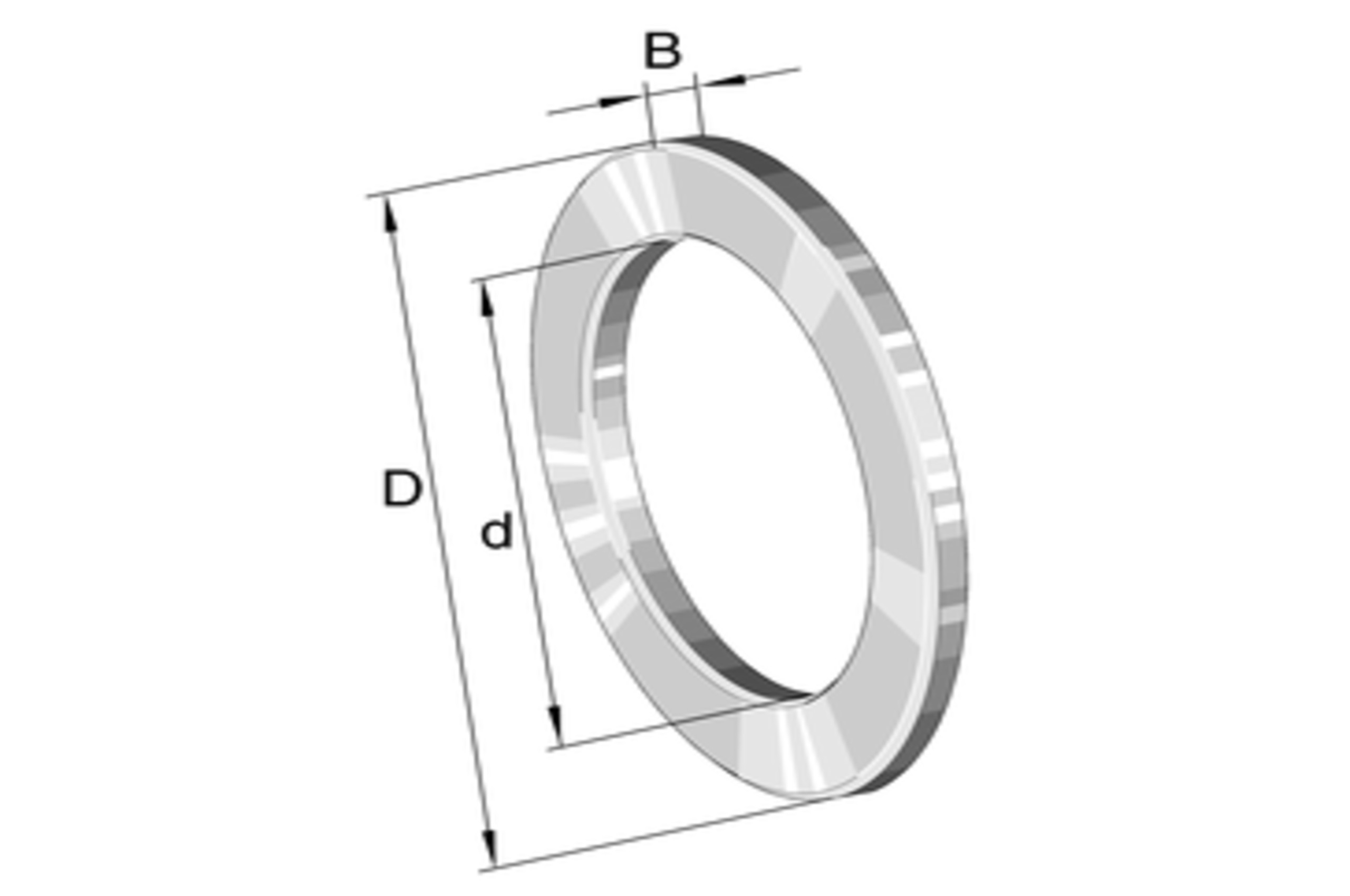

| Product | d mm (Bore Diameter) | D mm (Outside Diameter) | B mm (Width) | Ca (N) (Basic dynamic load rating, axial) | C0a (N) (Basic static load rating, axial) |
|---|---|---|---|---|---|
| LS120155 | 120 | 155 | 7 | – | – |
| LS140180 | 140 | 180 | 9.5 | – | – |
| LS150190 | 150 | 190 | 9.5 | – | – |
| LS1730 | 17 | 30 | 2.75 | – | – |
| LS3552 | 35 | 52 | 3.5 | – | – |
| LS4060 | 40 | 60 | 3.5 | – | – |
| LS4565 | 45 | 65 | 4 | – | – |
| LS5070 | 50 | 70 | 4 | – | – |
| LS6085 | 60 | 85 | 4.75 | – | – |
| LS6590 | 65 | 90 | 5.25 | – | – |
| LS7095 | 70 | 95 | 5.25 | – | – |
| LS80105 | 80 | 105 | 5.75 | – | – |
| LS90120 | 90 | 120 | 6.5 | – | – |
