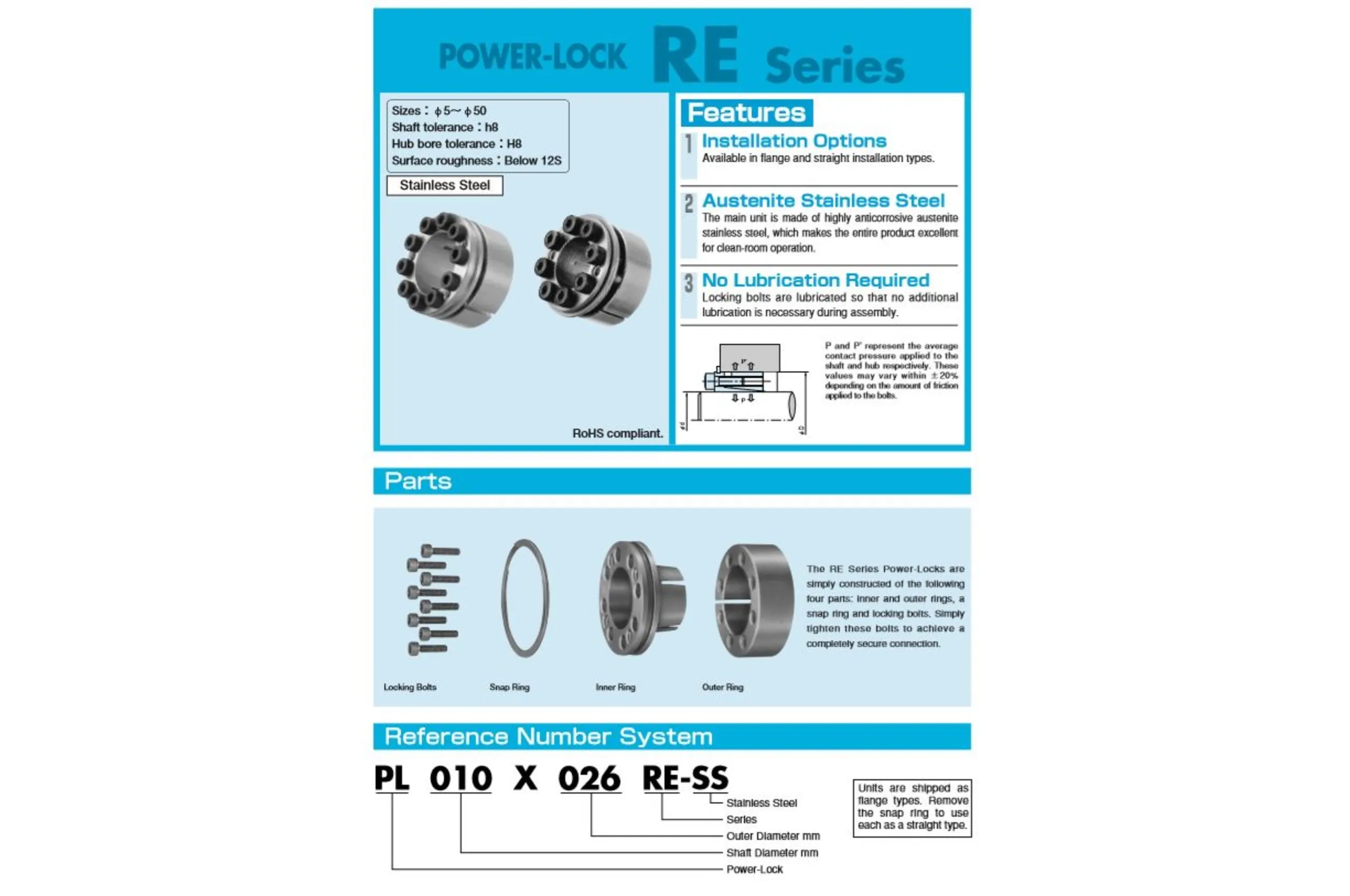

The Tsubaki POWER LOCK RE-SS SERIES is a premium line of shaft-hub locking devices engineered for superior performance in demanding environments. This series is distinguished by its construction from highly anticorrosive austenitic stainless steel, making it the ideal solution for operations in corrosive atmospheres, high-humidity, or clean room applications.
Get a Quote

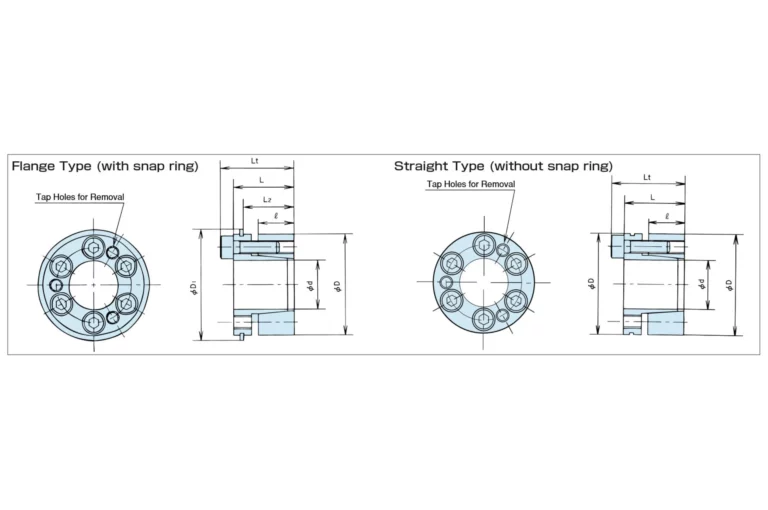

Model No. d x D Shaft Diameter X Outer Diameter mm Dimensions mm L Dimensions mm L2 Dimensions mm L Dimensions mm Lt Dimensions mm D1 Transmissible torque Mt N.m Transmissible torque Mt (kgf.m) Transmissible Thrust pax kN Transmissible Thrust pax (kgf) Shaft Contact Pressure P Mpa Shaft Contact Pressure P (Kgf/mm2) Hub Contact Pressure P’ Mpa Hub Contact Pressure P’ (kgf/mm2) Locking Bolts Quantily Locking Bolts Size Locking Bolts Tightening Torque Ma N-m Locking Bolts Tightening Torque Ma (kgf-m) Mass kg
PL005X018RE-SS 8 11 13.5 16.5 20 5.01 0.51 1.89 193 111 11.3 31 3.1 3 M3X10 0.9 0.092 0.02
PL006X019RE-SS 8 11 13.5 16.5 21.5 6.02 0.61 1.89 193 92 9.4 29 3 3 M3X10 0.9 0.092 0.02
PL008X021RE-SS 8 11 13.5 16.5 23.5 10.7 1.1 2.52 258 92 9.4 35 3.6 4 M3X10 0.9 0.092 0.03
PL010X026RE-SS 10 14 16.5 20.5 28.7 23.8 2.4 4.49 458 105 10.7 40 4.1 4 M4X14 2.2 0.22 0.06
PL011X027RE-SS 10 14.5 17 21 29.7 29.7 2.7 4.49 458 96 9.7 39 4 4 M4X14 2.2 0.22 0.06
PL012X028RE-SS 10 15 17.5 21.5 30.7 35.6 3.6 5.61 573 109 11.2 47 4.8 5 M4X14 2.2 0.22 0.06
PL014X030RE-SS 11 15.5 18.5 22.5 33.1 49.9 5.1 6.73 687 102 10.4 48 4.9 6 M4X14 2.2 0.22 0.08
PL015X031RE-SS 11 15.5 18.5 22.5 34.1 53.5 5.5 6.73 687 96 9.7 46 4.7 6 M4X14 2.2 0.22 0.08
PL016X032RE-SS 11 15.5 18.5 22.5 35.1 57 5.8 6.73 687 90 9.1 45 4.6 6 M4X14 2.2 0.22 0.09
PL017X033RE-SS 12 16.5 19.5 23.5 36.6 60.6 6.2 6.73 687 77 7.9 40 4.1 6 M4X14 2.2 0.22 0.09
PL018X034RE-SS 12 16.4 19.5 23.5 37.6 64.2 6.5 6.73 687 73 7.4 39 3.9 6 M4X14 2.2 0.22 0.1
PL019X035RE-SS 12 16.5 20 24 38.5 90.3 9.2 8.98 916 92 9.4 50 5.1 8 M4X14 2.2 0.22 0.11
PL020X039RE-SS 13.5 19.5 23.5 28.5 43.2 141 14.4 13.3 1360 116 11.8 59 6.1 6 M5X20 5.3 0.54 0.15
PL022X041RE-SS 13.5 19.5 23.5 28.5 45 156 15.9 13.3 1360 105 10.7 56 5.8 6 M5X20 5.3 0.54 0.16
PL024X043RE-SS 15 22 26 31 47.5 226 23.1 17.8 1820 116 11.8 65 6.6 8 M5X20 5.3 0.54 0.19
PL025X044RE-SS 15 22 26 31 48.5 236 24.1 17.8 1820 111 11.3 63 6.4 8 M5X20 5.3 0.54 0.2
PL025X049RE-SS 16.5 23.5 28.5 33.5 53.8 330 33.7 22.2 2270 113 11.5 64 6.6 10 M5X20 5.3 0.54 0.27
PL030X050RE-SS 16.5 23.5 28.5 33.5 54.8 354 36.1 22.2 2270 105 10.7 63 6.4 10 M5X20 5.3 0.54 0.26
PL032X052RE-SS 17 24 29 34 56.7 377 33.7 22.2 2270 96 9.8 59 6 10 M5X20 5.3 0.54 0.28
PL035X058RE-SS 17 25.5 30.5 35.5 63 495 24.1 26.8 2730 105 10.7 63 6.5 12 M5X20 5.3 0.54 0.38
PL038X060RE-SS 18 26.5 31.5 37.5 65 635 64.8 31.6 3220 108 11 68 7 10 M6X25 9 0.92 0.39
PL040X063RE-SS 18 26.5 31.5 37.5 68.5 668 68.2 31.6 3220 103 10.5 65 6.6 10 M6X25 9 0.92 0.43
PL042X066RE-SS 19 28.5 34 40 71.3 842 85.9 37.8 3860 111 11.3 71 7.2 12 M6X25 9 0.92 0.5
PL045X068RE-SS 19 28.5 34 40 73.7 902 92.1 37.8 3860 104 10.6 69 7 12 M6X25 9 0.92 0.5
PL048X072RE-SS 19 28.5 34 40 78.3 962 98.2 37.8 3860 97 9.9 65 6.6 12 M6X25 9 0.92 0.57
PL050X075RE-SS 19 30 35.5 41.5 81.2 1170 119 44.2 4510 109 11.1 73 7.4 14 M6X25 9 0.92 0.62
