About Product

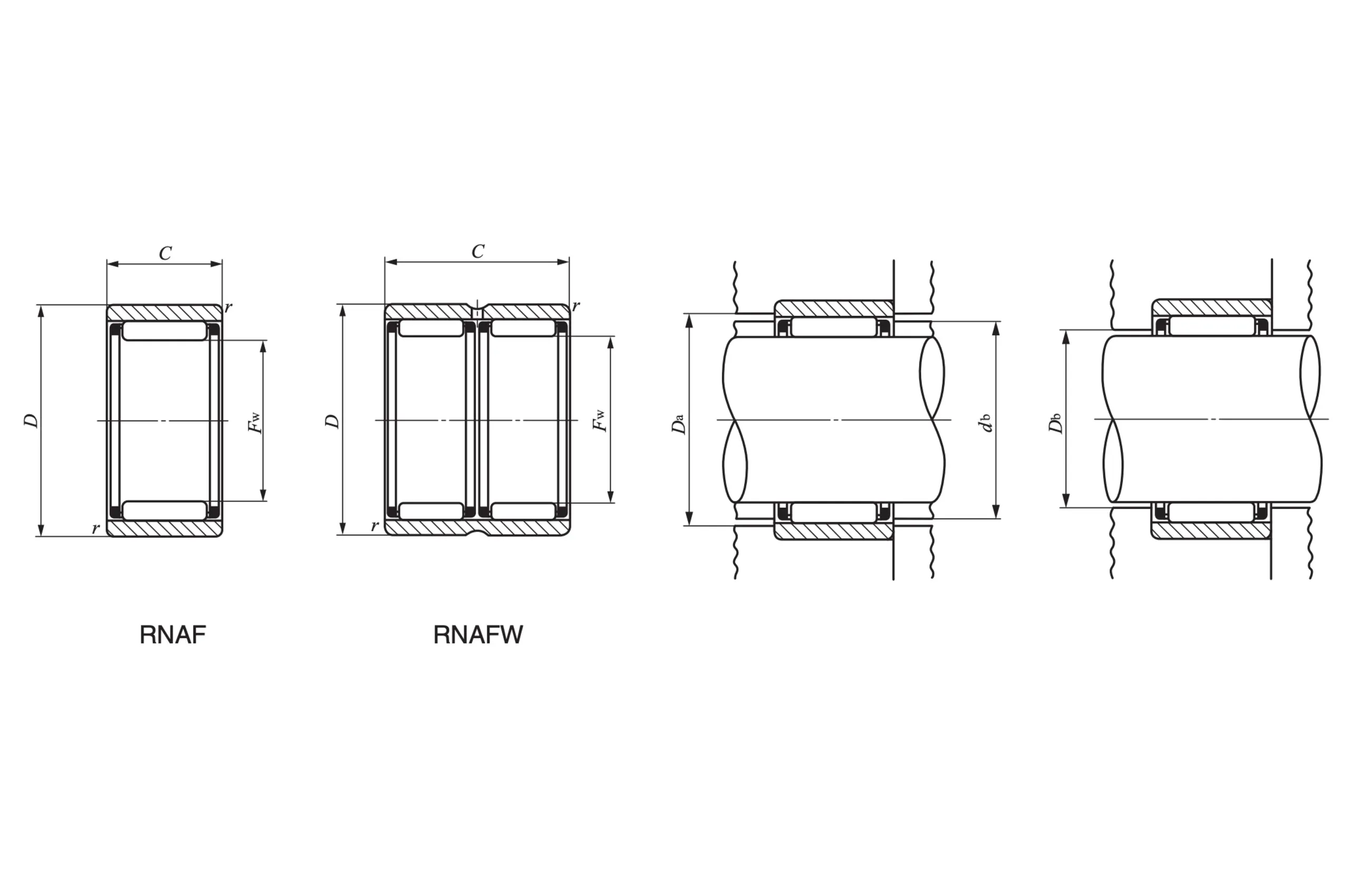

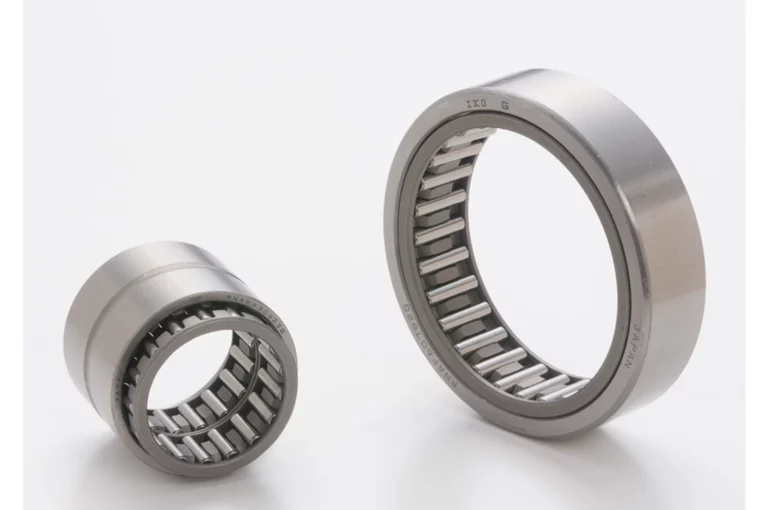

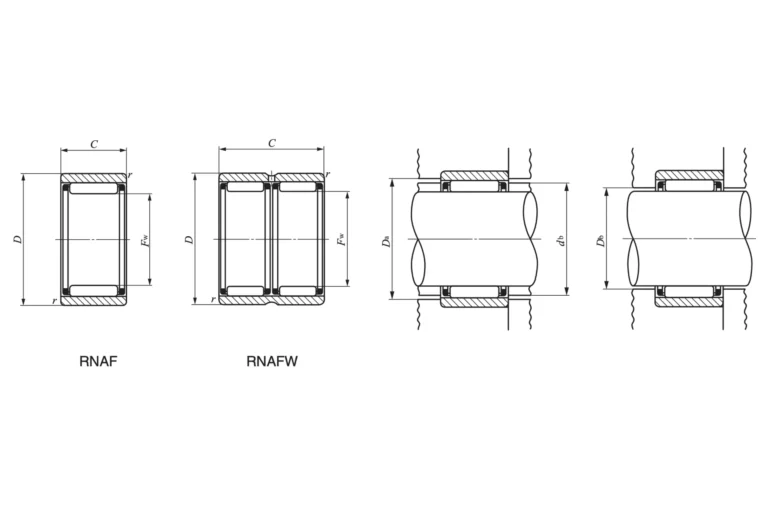

The RNAF Series is the single-row type, and the RNAFW Series is the double-row type, both maintaining the same low sectional height. These bearings are designed to be used without an inner ring, utilizing the hardened and ground shaft as the raceway for a compact footprint. The radial internal clearance can be freely chosen by combining the outer ring assembly with a properly finished shaft.
Get a Quote

Shaft dia. (mm) Identification number Mass (g) Fw (mm) D (mm) C (mm) rs min (mm) db (mm) Da Max. (mm) Db (mm) C (N) Co (N) Allowable rotational speed (min⁻¹)
5 RNAF 5108N 2.8 5 10 8 0.2 6.7 8.4 5.4 2420 1950 85000
6 RNAF 6138N 5.5 6 13 8 0.3 8.4 11 6.4 2700 2320 75000
7 RNAF 7148N 6.1 7 14 8 0.3 9.4 12 7.4 2960 2690 65000
8 RNAF 81510 8.2 8 15 10 0.3 10.4 13 8.4 3630 3600 60000
8 RNAFW 81620 20.5 8 16 20 0.3 10.8 14 8.4 6220 7200 60000
10 RNAF 101710 9.6 10 17 10 0.3 12.4 15 10.4 4160 4550 50000
10 RNAF 102012 18.7 10 20 12 0.3 13.5 18 10.4 5940 6000 50000
12 RNAF 122212 19.5 12 22 12 0.3 15.5 20 12.4 9030 8460 40000
14 RNAF 142213 18.7 14 22 13 0.3 17.6 20 14.6 7860 9410 35000
14 RNAFW 142220 28.5 14 22 20 0.3 17.6 20 14.6 10800 14200 35000
14 RNAF 142612 29 14 26 12 0.3 19.4 24 14.6 9790 9680 35000
15 RNAF 152313 19.7 15 23 13 0.3 18.6 21 15.6 8250 10200 35000
15 RNAFW 152320 30.5 15 23 20 0.3 18.6 21 15.6 11400 15400 35000
16 RNAF 162413 21 16 24 13 0.3 19.6 22 16.6 8620 11000 30000
16 RNAFW 162420 32 16 24 20 0.3 19.6 22 16.6 11900 16700 30000
16 RNAF 162812 31.5 16 28 12 0.3 21.4 26 16.6 10500 10900 30000
17 RNAF 172513 22 17 25 13 0.3 20.6 23 17.6 8980 11800 30000
17 RNAFW 172520 33.5 17 25 20 0.3 20.6 23 17.6 12400 17900 30000
18 RNAF 182613 23 18 26 13 0.3 21.6 24 18.6 9330 12700 30000
18 RNAFW 182620 35 18 26 20 0.3 21.6 24 18.6 12200 19100 30000
18 RNAF 183012 34.5 18 30 12 0.3 23.4 28 18.6 11800 13100 30000
18 RNAFW 183024 69.5 18 30 24 0.3 23.4 28 18.6 20200 26200 30000
20 RNAF 202813 25 20 28 13 0.3 23.6 26 20.6 9590 13500 25000
20 RNAFW 202826 49.5 20 28 26 0.3 23.6 26 20.6 16400 27000 25000
20 RNAF 203212 37.5 20 32 12 0.3 25.4 30 20.6 12400 14300 25000
20 RNAFW 203224 75 20 32 24 0.3 25.4 30 20.6 21200 28600 25000
22 RNAF 223013 27 22 30 13 0.3 25.6 28 22.6 10200 15200 25000
22 RNAFW 223026 53.5 22 30 26 0.3 25.6 28 22.6 17500 30300 25000
22 RNAF 223516 58.5 22 35 16 0.3 27.8 32 22.6 17600 20900 25000
22 RNAFW 223532 117 22 35 32 0.3 27.8 33 22.6 30200 41800 25000
25 RNAF 253517 51 25 35 17 0.3 29.5 33 25.6 17300 26600 20000
25 RNAFW 253526 78 25 35 26 0.3 29.5 33 25.6 22400 37000 20000
25 RNAF 253716 57 25 37 16 0.3 30.4 35 25.6 19400 24500 20000
25 RNAFW 253732 114 25 37 32 0.3 30.4 35 25.6 33000 49000 20000
28 RNAF 284016 62.5 28 40 16 0.3 33.4 38 28.6 20100 26500 18000
28 RNAFW 284032 125 28 40 32 0.3 33.4 38 28.6 34400 53000 18000
30 RNAF 304017 59 30 40 17 0.3 34.5 38 30.6 18700 31100 17000
30 RNAFW 304026 90.5 30 40 26 0.3 34.5 38 30.6 24000 43000 17000
30 RNAF 304216 66 30 42 16 0.3 35.4 40 30.6 20800 28400 17000
30 RNAFW 304232 132 30 42 32 0.3 35.4 40 30.6 35700 56800 17000
35 RNAF 354517 67.5 35 45 17 0.3 39.5 43 35.6 20500 36900 14000
35 RNAFW 354526 103 35 45 26 0.3 39.5 43 35.6 26600 51500 14000
35 RNAF 354716 75.5 35 47 16 0.3 40.4 45 35.6 23000 33900 14000
35 RNAFW 354732 151 35 47 32 0.3 40.4 45 35.6 39500 67800 14000
40 RNAF 405017 76 40 50 17 0.3 43.5 48 40.8 22200 42700 12000
40 RNAFW 405034 152 40 50 34 0.3 43.5 48 40.8 38000 85400 12000
40 RNAF 405520 140 40 55 20 0.3 45.2 53 40.8 31400 48000 12000
40 RNAFW 405540 280 40 55 40 0.3 45.2 53 40.8 53900 96000 12000
45 RNAF 455017 85.5 45 50 17 0.3 48.5 53 45.6 25400 48700 10000
45 RNAFW 455034 171 45 50 34 0.3 48.5 53 45.6 44400 96400 10000
45 RNAF 455520 157 45 55 20 0.3 50.2 58 45.6 35800 54700 10000
45 RNAFW 455540 314 45 55 40 0.3 50.2 58 45.6 61100 110000 10000
50 RNAF 505017 95 50 50 17 0.3 53.5 58 50.6 27600 54700 9000
50 RNAFW 505034 190 50 50 34 0.3 53.5 58 50.6 48000 106000 9000
50 RNAF 505520 173 50 55 20 0.3 55.2 63 50.6 39600 61100 9000
50 RNAFW 505540 346 50 55 40 0.3 55.2 63 50.6 68200 124000 9000
55 RNAF 555520 187 55 55 20 0.3 60.2 63 55.6 42000 67800 8500
55 RNAFW 555540 374 55 55 40 0.3 60.2 63 55.6 72400 136000 8500
60 RNAF 605520 202 60 55 20 0.3 65.2 63 60.6 44100 73500 8000
60 RNAFW 605540 404 60 55 40 0.3 65.2 63 60.6 76500 147000 8000
65 RNAF 655520 219 65 55 20 0.3 70.2 63 65.6 46800 79900 7500
65 RNAFW 655540 438 65 55 40 0.3 70.2 63 65.6 81200 158000 7500
70 RNAF 705520 236 70 55 20 0.3 75.2 63 70.6 49600 86300 7000
70 RNAFW 705540 471 70 55 40 0.3 75.2 63 70.6 85800 168000 7000
75 RNAF 755520 252 75 55 20 0.3 80.2 63 75.6 52300 92700 6700
75 RNAFW 755540 503 75 55 40 0.3 80.2 63 75.6 90500 178000 6700
80 RNAF 805520 269 80 55 20 0.3 85.2 63 80.6 55000 99000 6500
80 RNAFW 805540 537 80 55 40 0.3 85.2 63 80.6 95100 188000 6500
85 RNAF 855520 285 85 55 20 0.3 90.2 63 85.6 57700 105000 6300
85 RNAFW 855540 571 85 55 40 0.3 90.2 63 85.6 99700 198000 6300
90 RNAF 905520 302 90 55 20 0.3 95.2 63 90.6 60500 111000 6000
90 RNAFW 905540 605 90 55 40 0.3 95.2 63 90.6 104000 209000 6000
95 RNAF 955520 319 95 55 20 0.3 100.2 63 95.6 63200 117000 5800
95 RNAFW 955540 639 95 55 40 0.3 100.2 63 95.6 108000 219000 5800
100 RNAF 1005520 336 100 55 20 0.3 105.2 63 100.6 65900 123000 5600
100 RNAFW 1005540 673 100 55 40 0.3 105.2 63 100.6 112000 229000 5600
