Description

About Product

The IKO TAFI-Needle Roller Bearings are Machined Type Needle Roller Bearings with an Inner Ring (TAFI), engineered for optimal performance in machinery requiring high load ratings in compact arrangements.
Get a Quote

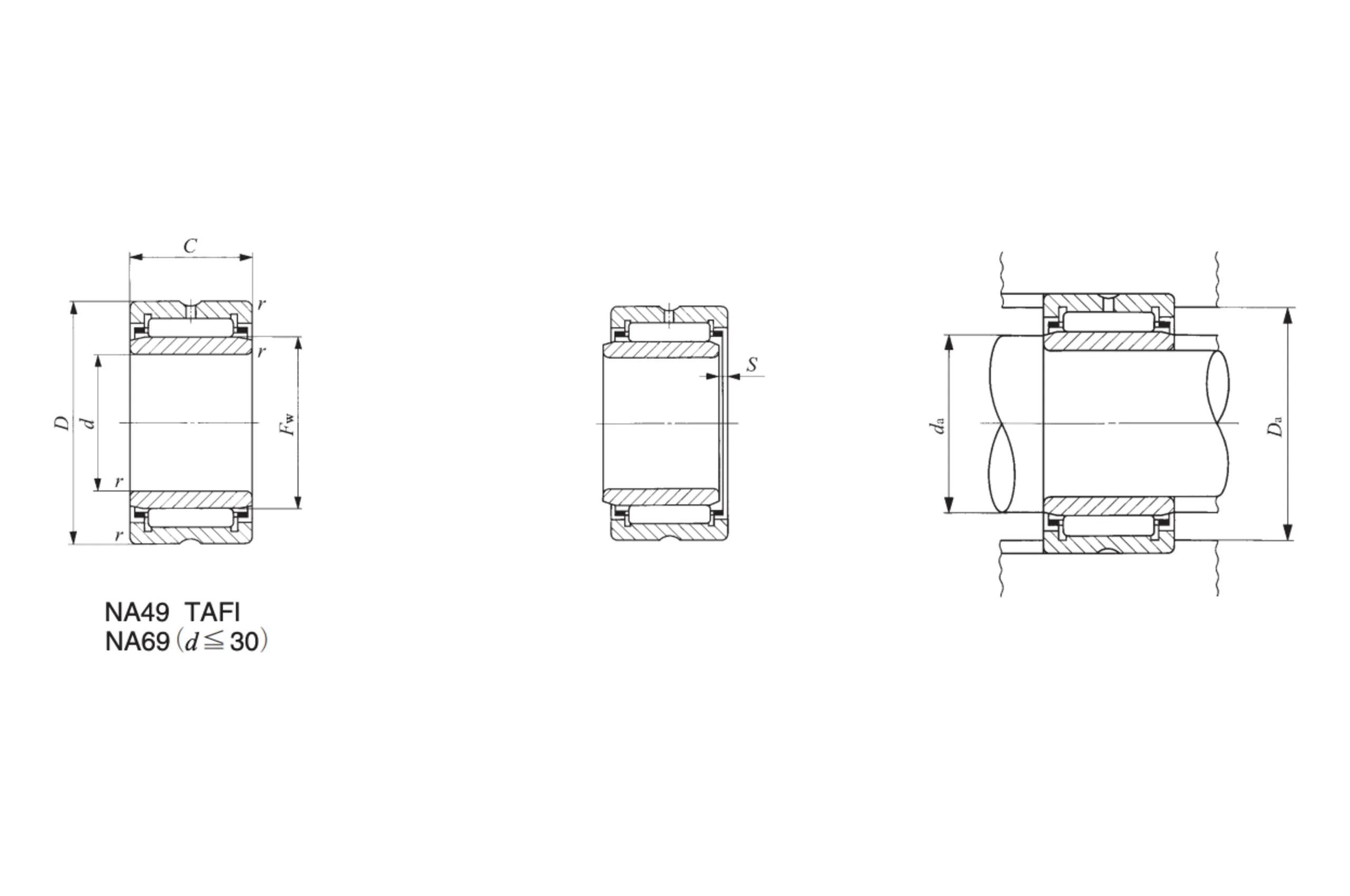

Shaft dia. (mm) TAFI Identification No. Mass (g) D C rs min (mm) Fw (mm) S (mm) da min (mm) da max (mm) Da max (mm) Basic Dynamic Load C (N) Basic Static Load C₀ (N) Allowable Speed (min⁻¹) Assembled Inner Ring
5 TAFI 51512 11.9 15 12 0.2 8 0.5 6.6 7.7 13.4 5 060 4 690 50 000 LRT 5812
5 TAFI 51516 16.7 15 16 0.2 8 0.5 6.6 7.7 13.4 7 080 7 220 50 000 LRT 5816
6 TAFI 61612 13 16 12 0.2 9 0.5 7.6 8.7 14.4 5 490 5 330 45 000 LRT 6912
6 TAFI 61616 17.5 16 16 0.2 9 0.5 7.6 8.7 14.4 7 680 8 210 45 000 LRT 6916
7 TAFI 71712 14.3 17 12 0.2 10 0.5 8.6 9.7 15.4 5 880 5 970 40 000 LRT 71012
7 TAFI 71716 19.2 17 16 0.2 10 0.5 8.6 9.7 15.4 8 230 9 190 40 000 LRT 71016
9 TAFI 91912 16.7 19 12 0.3 12 0.5 11 11.5 17 6 610 7 260 35 000 LRT 91212
9 TAFI 91916 22.5 19 16 0.3 12 0.5 11 11.5 17 9 250 11 200 35 000 LRT 91216
10 TAFI 102216 30 22 16 0.3 14 0.5 12 13 20 11 700 13 700 30 000 LRT 101416
10 TAFI 102220 38 22 20 0.3 14 0.5 12 13 20 14 800 18 600 30 000 LRT 101420
12 TAFI 122416 33.5 24 16 0.3 16 0.5 14 15 22 12 300 15 000 25 000 LRT 121616
12 TAFI 122420 42.5 24 20 0.3 16 0.5 14 15 22 15 500 20 000 25 000 LRT 121620
15 TAFI 152716 39.5 27 16 0.3 19 0.5 17 18 25 14 000 18 700 20 000 LRT 151916
15 TAFI 152720 50 27 20 0.3 19 0.5 17 18 25 17 700 25 300 20 000 LRT 151920
17 TAFI 172916 43.5 29 16 0.3 21 0.5 19 20 27 14 400 20 000 19 000 LRT 172116
17 TAFI 172920 54 29 20 0.3 21 0.5 19 20 27 18 200 27 100 19 000 LRT 172120
20 TAFI 203216 48.5 32 16 0.3 24 0.5 22 23 30 15 300 22 500 17 000 LRT 202416
20 TAFI 203220 61 32 20 0.3 24 0.5 22 23 30 19 400 30 500 17 000 LRT 202420
22 TAFI 223416 52 34 16 0.3 26 0.5 24 25 32 16 300 24 900 15 000 LRT 222616
22 TAFI 223420 67.5 34 20 0.3 26 0.5 24 25 32 20 600 33 300 15 000 LRT 222620
25 TAFI 253820 82 38 20 0.3 29 0.5 27 28 36 21 600 37 200 14 000 LRT 252920
25 TAFI 253830 123 38 30 0.3 29 0.5 27 28 36 30 900 59 100 14 000 LRT 252930
28 TAFI 284220 96.5 42 20 0.3 32 0.5 30 31 40 25 700 42 200 12 000 LRT 283220
28 TAFI 284230 145 42 30 0.3 32 1 30 31 40 36 800 67 200 12 000 LRT 283230
30 TAFI 304520 112 45 20 0.3 35 0.3 32 34 43 26 900 46 200 11 000 LRT 303520
30 TAFI 304530 171 45 30 0.3 35 0.5 32 34 43 38 600 73 600 11 000 LRT 303530
32 TAFI 324720 121 47 20 0.3 37 0.3 34 36 45 28 200 50 100 11 000 LRT 323720
32 TAFI 324730 180 47 30 0.3 37 0.5 34 36 45 40 500 79 800 11 000 LRT 323730
35 TAFI 355020 129 50 20 — 0.3 35 0.4 37 39 29 400 54 100 10 000 LRT 354020
35 TAFI 355030 192 50 30 — 0.3 35 0.5 37 39 42 300 86 200 10 000 LRT 354030
38 TAFI 385320 136 53 20 — 0.3 43 0.3 40 42 30 500 58 200 9 500 LRT 384320
38 TAFI 385330 205 53 30 — 0.3 43 0.5 40 42 43 800 92 600 9 500 LRT 384330
40 TAFI 405520 143 55 20 — 0.3 45 0.3 42 44 31 000 60 000 9 000 LRT 404520
40 TAFI 405530 215 55 30 — 0.3 45 0.5 42 44 46 000 95 800 9 000 LRT 404530
42 TAFI 425720 149 57 20 — 0.3 47 0.3 44 46 31 500 62 000 8 500 LRT 424720
42 TAFI 425730 225 57 30 — 0.3 47 0.5 44 46 35 200 99 100 8 500 LRT 424730
45 TAFI 456225 230 62 25 — 0.3 50 0.5 47 49 43 000 85 300 8 000 LRT 455025
45 TAFI 456235 320 62 35 — 0.3 50 1 47 49 60 000 135 000 8 000 LRT 455035
50 TAFI 506825 270 50 68 25 0.3 55 0.5 52 54 66 45 400 94 000 7 500 LRT 505525
50 TAFI 506835 365 50 68 35 0.3 55 1 52 54 66 61 200 138 000 7 500 LRT 505535
55 TAFI 557225 275 55 72 25 0.3 60 0.5 57 59 70 47 500 103 000 6 500 LRT 556025
55 TAFI 557235 380 55 72 35 0.3 60 1 57 59 70 64 100 151 000 6 500 LRT 556035
60 TAFI 608225 395 60 82 25 0.6 68 0.3 64 66 78 54 800 117 000 6 000 LRT 606825
60 TAFI 608235 560 60 82 35 0.6 68 1 64 66 78 72 300 157 000 6 000 LRT 606835
65 TAFI 659035 710 65 90 45 1 72 0.5 70 70.5 85 101 000 227 000 5 500 LRT 657345
70 TAFI 709525 540 70 95 25 1 80 0.3 75 78 90 59 400 147 000 5 000 LRT 708025
70 TAFI 709535 755 70 95 35 1 80 0.3 75 78 90 78 400 195 000 5 000 LRT 708035
