Description

About Product

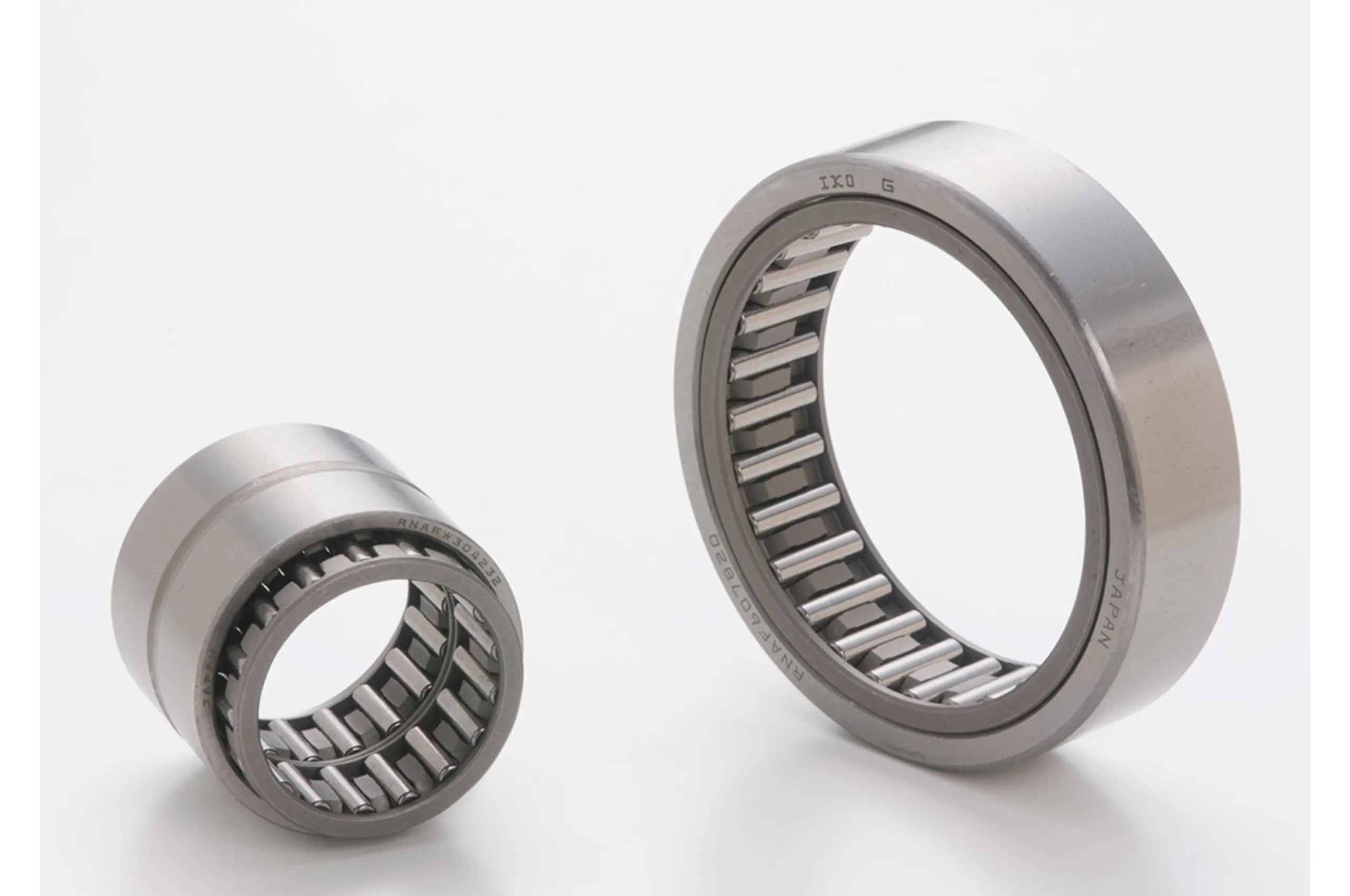

The IKO TAF series (Machined Type Needle Roller Bearings) is engineered for applications requiring high load capacity within a compact, space-saving design. These bearings feature a meticulously machined and heat-treated outer ring, which provides stable high rigidity, making them suitable even for light alloy housings.
Get a Quote

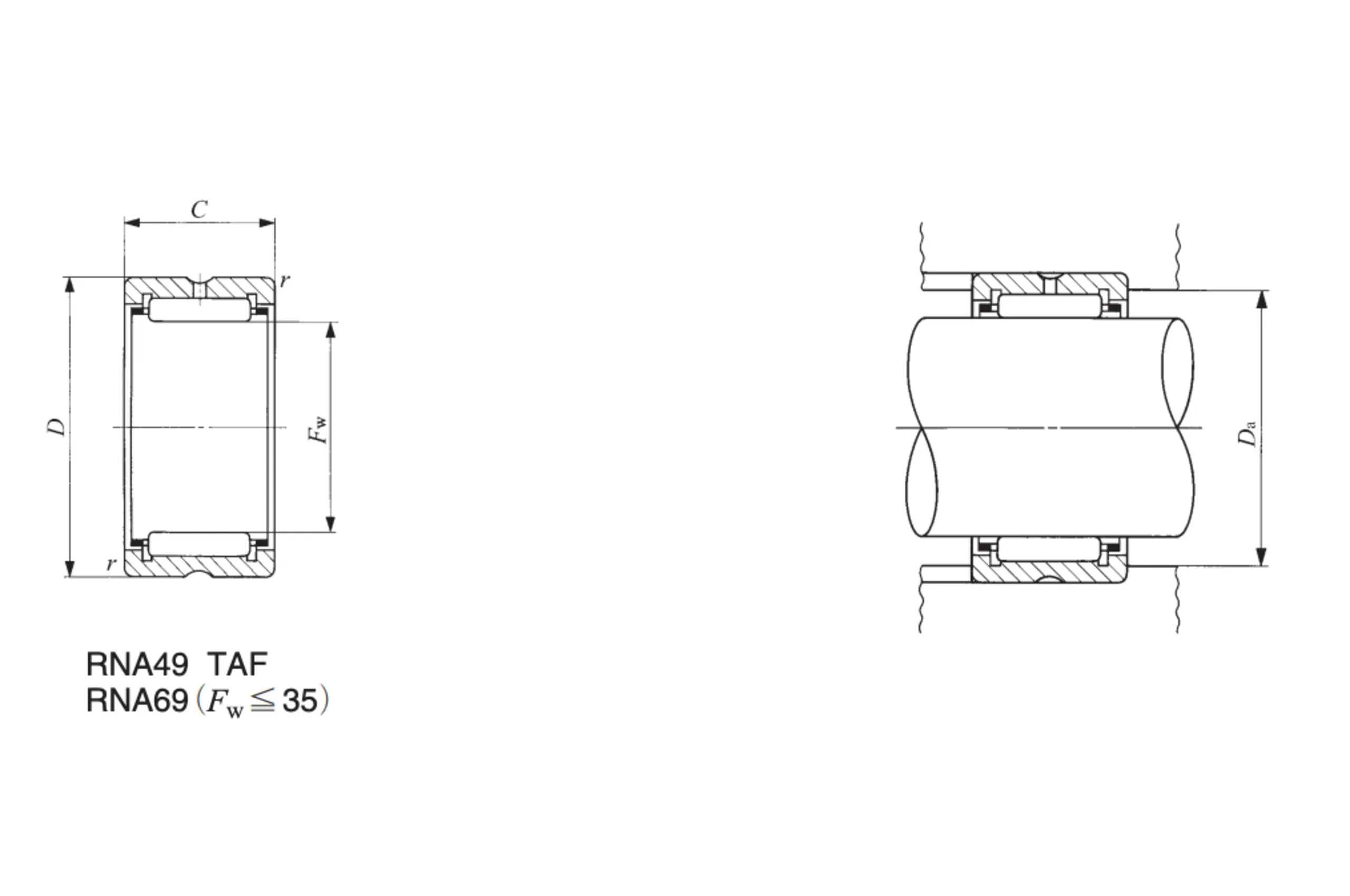

Shaft dia. (mm) TAF Number Mass (g) Fw (mm) D (mm) C (mm) rs min (mm) Da Max (mm) Dynamic Load C (N) Static Load C₀ (N) Allowable Speed (min⁻¹)
5 TAF 51010 3.4 5 10 10 0.2 8.4 2420 1950 80000
5 TAF 51012 4.2 5 10 12 0.2 8.4 3080 2660 80000
6 TAF 61212 6.4 6 12 12 0.2 10.4 3440 3170 70000
7 TAF 71410 6.9 7 14 10 0.2 12.4 4610 4050 60000
7 TAF 71412 8.3 7 14 12 0.2 12.4 4610 4050 60000
8 TAF 81512 9.1 8 15 12 0.2 13.4 5080 4690 50000
8 TAF 81516 12.9 8 15 16 0.2 13.4 7080 7220 50000
9 TAF 91612 9.8 9 16 12 0.2 14.4 5490 5330 45000
9 TAF 91616 13.2 9 16 16 0.2 14.4 7680 8210 45000
10 TAF 101712 10.7 10 17 12 0.2 15.4 5880 5970 40000
10 TAF 101716 14.3 10 17 16 0.2 15.4 8230 9190 40000
12 TAF 121912 12.2 12 19 12 0.3 17 6610 7260 35000
12 TAF 121916 16.3 12 19 16 0.3 17 9250 10190 35000
14 TAF 142216 21 14 22 16 0.3 20 11700 13700 30000
14 TAF 142220 26.5 14 22 20 0.3 20 14800 18600 30000
15 TAF 152316 22.5 15 23 16 0.3 21 13200 14900 30000
15 TAF 152320 28 15 23 20 0.3 21 15600 20200 30000
16 TAF 162416 23 16 24 16 0.3 22 12300 15100 25000
16 TAF 162420 29 16 24 20 0.3 22 15500 20400 25000
17 TAF 172516 24.5 17 25 16 0.3 23 12900 16300 25000
17 TAF 172520 30.5 17 25 20 0.3 23 16300 22000 25000
18 TAF 182616 25.5 18 26 16 0.3 24 13400 17500 20000
18 TAF 182620 32 18 26 20 0.3 24 17000 23600 20000
19 TAF 192716 27 19 27 16 0.3 25 14000 18700 20000
19 TAF 192720 34 19 27 20 0.3 25 17700 25300 20000
20 TAF 202816 27.5 20 28 16 0.3 26 13900 18800 20000
20 TAF 202820 35.5 20 28 20 0.3 26 17600 25400 20000
21 TAF 212916 29 21 29 16 0.3 27 14400 20000 19000
21 TAF 212920 36 21 29 20 0.3 27 18200 27100 19000
22 TAF 223016 30 22 30 16 0.3 28 14900 21200 18000
22 TAF 223020 37.5 22 30 20 0.3 28 18900 28700 18000
24 TAF 243216 32 24 32 16 0.3 30 15300 22500 17000
24 TAF 243220 40.5 24 32 20 0.3 30 19400 30500 17000
25 TAF 253316 33.5 25 33 16 0.3 31 15800 23700 16000
25 TAF 253320 42 25 33 20 0.3 31 21000 25000 16000
26 TAF 263416 34.5 26 34 16 0.3 32 16300 24900 15000
26 TAF 263420 43.5 26 34 20 0.3 32 20600 33800 15000
28 TAF 283720 51.5 28 37 20 0.3 35 21700 37100 14000
28 TAF 283730 83.5 28 37 30 0.3 35 31500 58500 14000
29 TAF 293820 57 29 38 20 0.3 36 21600 37200 14000
29 TAF 293830 85 29 38 30 0.3 36 32100 59100 14000
30 TAF 304020 64.5 30 40 20 0.3 38 25100 42100 13000
30 TAF 304030 97.5 30 40 30 0.3 38 36000 63900 13000
32 TAF 324220 68 32 42 20 0.3 40 25 700 42 200 12 000
32 TAF 324230 102 32 42 30 0.3 40 36 800 67 200 12 000
35 TAF 354520 73.5 35 45 20 0.3 43 26 900 46 200 11 000
35 TAF 354530 112 35 45 30 0.3 43 38 600 73 600 11 000
37 TAF 374720 77.5 37 47 20 0.3 45 28 200 50 100 11 000
37 TAF 374730 117 37 47 30 0.3 45 40 500 79 800 11 000
38 TAF 384820 79 38 48 20 0.3 45 28 100 50 200 11 000
38 TAF 384830 119 38 48 30 0.3 45 40 800 80 000 11 000
40 TAF 405020 83 40 50 20 0.3 48 29 400 54 100 10 000
40 TAF 405030 125 40 50 30 0.3 48 42 300 86 200 10 000
42 TAF 425220 86.5 42 52 20 0.3 50 29 900 56 200 9 500
42 TAF 425230 130 42 52 30 0.3 50 43 000 89 400 9 500
43 TAF 435320 88.5 43 53 20 0.3 51 30 500 58 200 9 500
43 TAF 435330 133 43 53 30 0.3 51 43 800 92 600 9 500
45 TAF 455520 92 45 55 20 0.3 53 31 000 60 200 9 000
45 TAF 455530 138 45 55 30 0.3 53 44 600 95 800 9 000
47 TAF 475720 95 47 57 20 0.3 55 31 500 62 200 8 500
47 TAF 475730 144 47 57 30 0.3 55 45 200 99 100 8 500
50 TAF 506225 159 50 62 25 0.3 60 43 000 85 300 8 000
50 TAF 506235 225 50 62 35 0.3 60 58 000 125 000 8 000
55 TAF 556825 193 55 68 25 0.3 66 45 400 94 000 7 500
55 TAF 556835 255 55 68 35 0.3 66 61 200 138 000 7 500
60 TAF 607225 187 60 72 25 0.3 70 47 500 103 000 6 500
60 TAF 607235 260 60 72 35 0.3 70 64 100 151 000 6 500
65 TAF 657825 225 65 78 25 0.6 74 49 600 113 000 6 000
65 TAF 657835 315 65 78 35 0.6 74 67 000 164 000 6 000
68 TAF 688225 250 68 82 25 0.6 78 54 800 117 000 6 000
68 TAF 688235 350 68 82 35 0.6 78 72 000 166 000 6 000
70 TAF 708525 280 70 85 25 0.6 81 55500 120000 5500
70 TAF 708535 395 70 85 35 0.6 81 73000 171000 5500
73 TAF 739025 335 73 90 25 1 85 61100 127000 5500
73 TAF 739035 475 73 90 35 1 85 80400 181000 5500
75 TAF 759225 345 75 92 25 1 87 62100 131000 5500
75 TAF 759235 485 75 92 35 1 87 81700 186000 5500
80 TAF 809525 315 80 95 25 1 90 59400 137000 5000
80 TAF 809535 445 80 95 35 1 90 78100 195000 5000
85 TAF 8510525 435 85 105 25 1 100 76300 145000 4500
85 TAF 8510535 525 85 105 35 1 100 86200 169000 4500
90 TAF 9011025 455 110 90 25 1 105 77300 150000 4500
90 TAF 9011035 640 110 90 35 1 105 103000 217000 4500
95 TAF 9511526 495 115 95 26 1 110 79700 159000 4000
95 TAF 9511536 690 115 95 36 1 110 106000 231000 4000
100 TAF 10012026 525 120 100 26 1 115 82400 168000 4000
100 TAF 10012036 725 120 100 36 1 115 110000 244000 4000
105 TAF 10512526 545 125 105 26 1 120 84700 178000 4000
105 TAF 10512536 760 125 105 36 1 120 113000 258000 4000
110 TAF 11013030 660 110 130 30 1 125 106000 240000 3500
110 TAF 11013040 880 110 130 40 1 125 134000 324000 3500
