Description

About Product

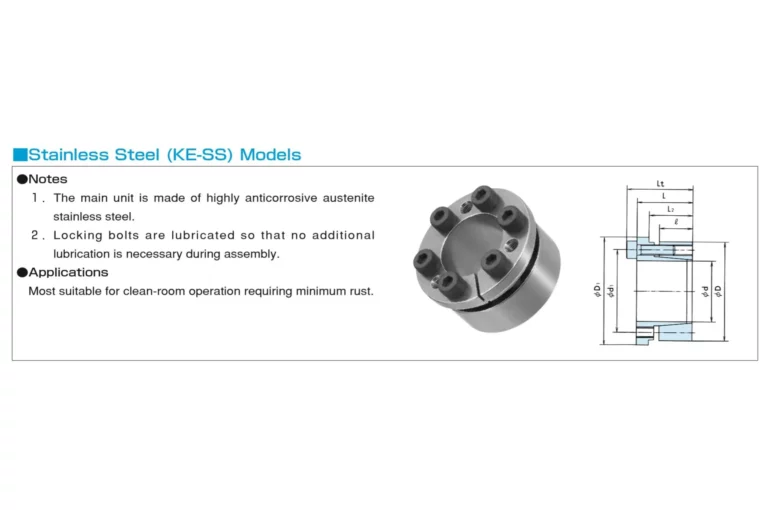

The Tsubaki POWER LOCK KE-SS SERIES is a keyless shaft-hub locking device engineered for demanding environments and small shaft applications. The units are simply constructed, consisting of only an inner ring, an outer ring, and a few locking bolts. They are part of the KE Series (low contact pressure type), but are specifically designed for superior corrosion resistance and are manufactured using austenitic stainless steel.
Get a Quote

Model No. d x D Shaft Diameter X Outer Diameter mm Dimensions mm L Dimensions mm L2 Dimensions mm L Dimensions mm Lt Dimensions mm d1 Dimensions mm D1 Transmissible torque Mt N.m Transmissible torque Mt (kgf.m) PAX KN {kgf/mm2} Contact Pressure SHAFT P’ MPa Contact Pressure shaft P’ (kgf/mm2) Contact Pressure Hub P’ MPa Contact Pressure Hub P’ (kgf/mm2) Locking Bolts Quantily Locking Bolts Size Locking Bolts Tightening Torque Ma N-m Locking Bolts Tightening Torque Ma (kgf-m) Mass kg
PL005X016KE-SS 8 12 13.5 16.5 11.5 18.5 5 0.51 1.89 193 111 11.3 35 3.5 3 M3X10 0.9 0.092 0.02
PL006X017KE-SS 8 12 13.5 16.5 12.5 19.5 6 0.61 1.89 193 92 9.4 33 3.3 3 M3X10 0.9 0.092 0.02
PL008X021KE-SS 10 14.5 16.5 20.5 15.6 23.5 14.2 1.5 3.37 344 98 10.1 38 3.8 3 M4X14 2.2 0.22 0.03
PL010X023KE-SS 10 14.5 16.5 20.5 17.6 25.5 17.7 1.8 3.37 344 79 8 34 3.5 3 M4X14 2.2 0.22 0.04
PL011X024KE-SS 10 14.5 16.5 20.5 18.6 26.5 19.6 2 3.37 344 72 7.3 33 3.4 3 M4X14 2.2 0.22 0.04
PL012X026KE-SS 10 14.5 16.5 20.5 20 28.5 28.4 2.9 4.49 458 88 8.9 40 4.1 4 M4X14 2.2 0.22 0.05
PL014X028KE-SS 12 17.5 20 24 22 30.5 41.6 4.2 5.61 573 78 8 39 4 5 M4X14 2.2 0.22 0.06
PL015X029KE-SS 12 17.5 20 24 23 31.5 44.5 4.5 5.61 573 73 7.4 38 3.9 5 M4X14 2.2 0.22 0.06
PL016X030KE-SS 12 17.5 20 24 24 32.5 47.4 4.8 5.61 573 68 7 36 3.7 5 M4X14 2.2 0.22 0.07
PL017X031KE-SS 12 17.5 20 24 25 33.5 60.6 6.2 6.73 687 77 7.9 42 4.3 6 M4X14 2.2 0.22 0.07
PL018X032KE-SS 12 17.5 20 24 26 34.5 64.1 6.5 6.73 687 73 7.4 41 4.2 6 M4X14 2.2 0.22 0.08
PL019X033KE-SS 12 17.5 20 24 27 35.5 67.7 6.9 6.73 687 69 7.1 40 4.1 6 M4X14 2.2 0.22 0.08
PL020X038KE-SS 15 20.5 25 30 30 42 141 14.4 13.4 1363 104 10.6 55 5.6 6 M5X20 5.3 0.54 0.14
PL022X040KE-SS 15 20.5 25 30 32 44 156 15.9 13.4 1363 95 9.7 52 5.3 6 M5X20 5.3 0.54 0.15
PL024X042KE-SS 15 20.5 25 30 34 46 170 17.3 13.4 1363 87 8.9 50 5.1 6 M5X20 5.3 0.54 0.16
PL025X043KE-SS 15 20.5 25 30 35 47 177 18 13.4 1363 83 8.5 48 4.9 6 M5X20 5.3 0.54 0.17
PL028X046KE-SS 17 22.5 28 33 38.5 50 264 26.9 17.8 1818 88 8.9 53 5.4 8 M5X20 5.3 0.54 0.21
PL030X048KE-SS 17 22.5 28 33 40.5 52 283 28.9 17.8 1818 82 8.3 51 5.2 8 M5X20 5.3 0.54 0.22
PL032X050KE-SS 17 22.5 28 33 42.5 54 302 30.8 17.8 1818 77 7.8 49 5 8 M5X20 5.3 0.54 0.23
PL035X057KE-SS 19 25 32 38 47.5 62 351 35.8 18.9 1932 67 6.8 41 4.2 6 M6X25 9 0.92 0.36
PL038X060KE-SS 19 25 32 38 50.5 65 508 51.8 25.2 2577 82 8.4 52 5.3 8 M6X25 9 0.92 0.39
PL040X062KE-SS 19 25 32 38 52.5 67 535 54.6 25.2 2577 78 7.9 50 5.1 8 M6X25 9 0.92 0.4
PL042X064KE-SS 19 25 32 38 54.5 69 561 57.3 25.2 2577 74 7.6 49 5 8 M6X25 9 0.92 0.42
PL045X067KE-SS 19 25 32 38 57.5 72 602 61.4 25.2 2577 69 7.1 46 4.7 8 M6X25 9 0.92 0.44
PL048X070KE-SS 19 25 32 38 60.5 75 722 73.7 28.4 2899 73 7.4 50 5.1 9 M6X25 9 0.92 0.46
PL050X072KE-SS 19 26 34.5 40.5 63.5 77 836 85.3 31.6 3221 78 7.9 54 5.5 10 M6X25 9 0.92 0.5
