Description

About Product

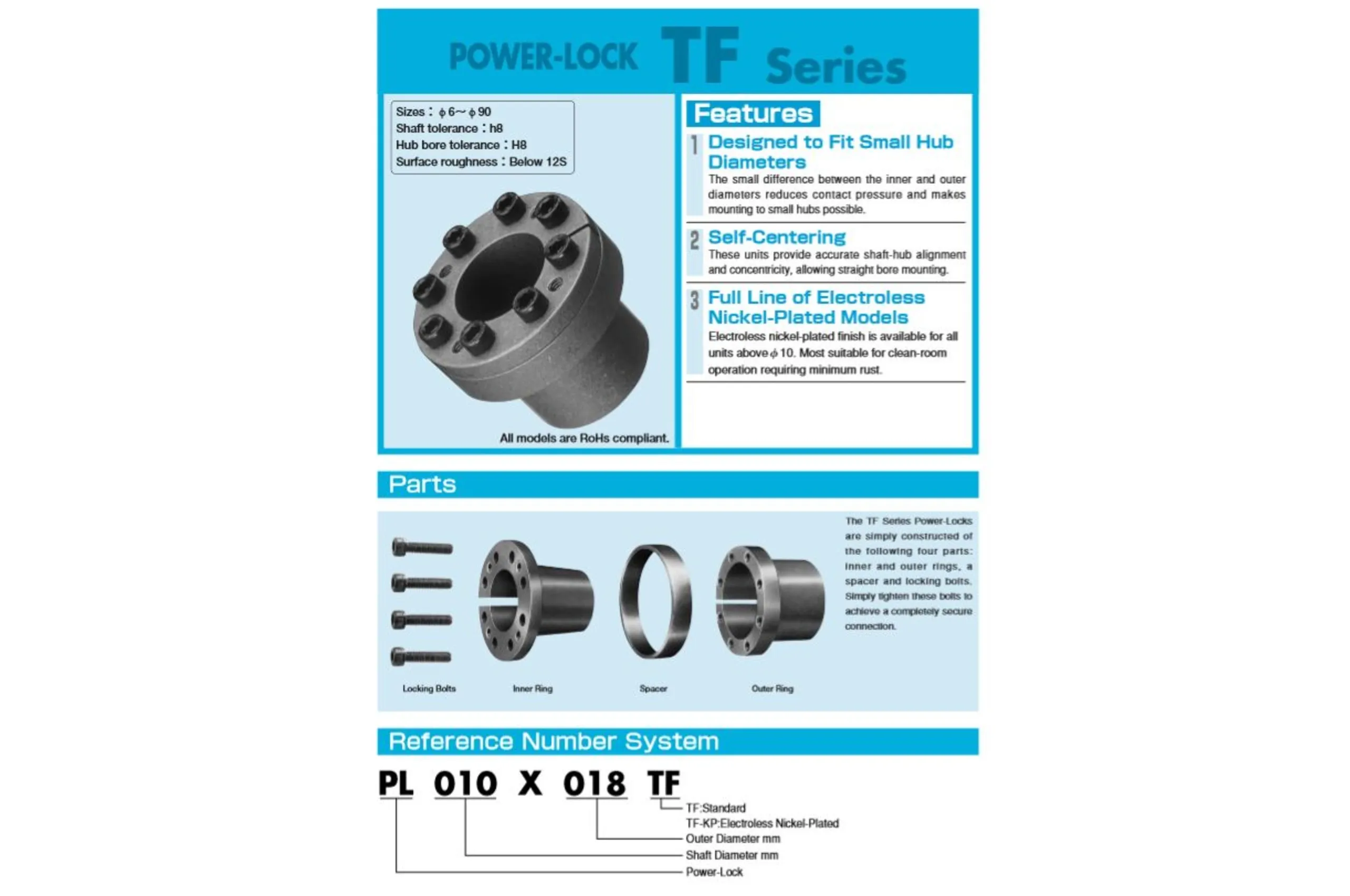

The Tsubaki POWER LOCK TF Series is a self-centering, single-taper shaft-hub locking device engineered for high performance in power transmission applications. It provides a simple, highly secure connection that eliminates the need for traditional keys, keyways, splines, or press/shrink fits.
Get a Quote

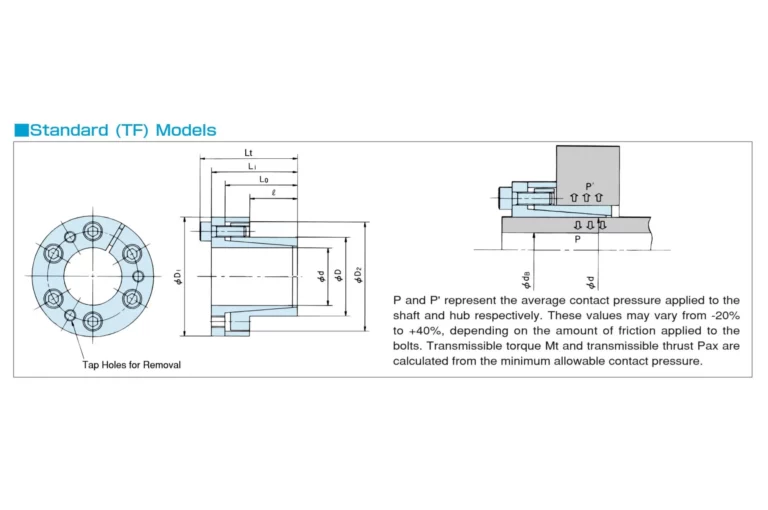

Model No. d x D Shaft Diameter X Outer Diameter mm Dimensions mm L Dimensions mm Lo Dimensions mm L1 Dimensions mm Lt Dimensions mm D1 Dimensions mm D2 Transmissible torque Mt N.m Transmissible torque Mt (kgf.m) PAX KN {kgf/mm2} Contact Pressure SHAFT P’ MPa Contact Pressure shaft P’ (kgf/mm2) Contact Pressure Hub P’ MPa Contact Pressure Hub P’ (kgf/mm2) Locking Bolts Quantily Locking Bolts Size Locking Bolts Tightening Torque Ma N-m Locking Bolts Tightening Torque Ma (kgf-m) Mass kg
PL006X012TF 10 19 21 24 25 23 11 1.2 3.78 386 186 19 93 9.5 3 M3X10 2.25 0.23 0.05
PL007X012TF 10 19 21 24 25 22.5 13 1.4 3.78 386 160 16.3 93 9.5 3 M3X10 2.25 0.23 0.05
PL008X015TF 12 22 25 29 27 24 26 2.7 6.53 666 200 20.4 107 10.9 3 M4X10 4.8 0.49 0.07
PL010X018TF 14 23 26 30 32 28 44 4.4 8.7 888 183 18.7 102 10.4 4 M4X10 4.8 0.49 0.09
PL011X018TF 14 23 26 30 32 28 48 4.9 8.7 888 167 17 102 10.4 4 M4X10 4.8 0.49 0.08
PL012X020TF 14 23 26 30 34 30 52 5.3 8.7 888 153 15.6 92 9.3 4 M4X10 4.8 0.49 0.1
PL014X022TF 14 23 26 30 38 33 61 6.2 8.7 888 131 13.4 83 8.5 4 M4X10 4.8 0.49 0.12
PL015X023TF 14 24 30 35 39 35.5 107 10.9 14.2 1450 199 20.4 130 13.3 4 M5X14 9.8 1 0.12
PL016X024TF 14 24 30 35 40 36.5 114 11.6 14.2 1450 187 19.1 125 12.7 4 M5X14 9.8 1 0.16
PL018X026TF 18 31 38 44 47 42 196 20 21.6 2200 217 22.1 126 12.9 4 M6X18 16.7 1.7 0.27
PL019X027TF 18 31 38 44 49 43 206 21 21.6 2200 205 20.9 122 12.4 4 M6X18 16.7 1.7 0.29
PL020X028TF 18 31 38 44 50 44 216 22 21.6 2200 195 19.9 118 12 4 M6X18 16.7 1.7 0.3
PL022X032TF 25 38 45 51 54 48 245 25 21.6 2200 121 12.3 74 7.5 4 M6X18 16.7 1.7 0.38
PL024X034TF 25 38 45 51 56 50 265 27 21.6 2200 111 11.3 70 7.1 4 M6X18 16.7 1.7 0.41
PL025X034TF 25 38 45 51 56 50 274 28 21.6 2200 107 10.9 70 7.1 4 M6X18 16.7 1.7 0.39
PL028X039TF 25 38 45 51 61 55 461 47 32.3 3300 142 14.5 91 9.3 6 M6X18 16.7 1.7 0.47
PL030X041TF 25 38 45 51 62 57 500 51 32.3 3300 133 13.6 86 8.8 6 M6X18 16.7 1.7 0.48
PL032X043TF 25 38 45 51 65 59 529 54 32.3 3300 124 12.7 82 8.4 6 M6X18 16.7 1.7 0.52
PL035X047TF 32 45 52 58 69 62 774 79 44.1 4500 116 11.8 78 8 8 M6X18 16.7 1.7 0.63
PL038X050TF 32 45 52 58 72 66 843 86 44.1 4500 107 10.9 74 7.5 8 M6X18 16.7 1.7 0.67
PL040X053TF 32 45 52 58 75 69 882 90 44.1 4500 101 10.3 70 7.1 8 M6X18 16.7 1.7 0.73
PL042X055TF 32 45 52 58 78 71 931 95 44.1 4500 96 9.8 68 6.9 8 M6X18 16.7 1.7 0.78
PL045X059TF 45 62 70 78 86 80 1850 189 82.3 8400 119 12.1 82 8.4 8 M8X22 40.2 4.1 1.23
PL048X062TF 45 62 70 78 87 81 1970 201 82.3 8400 111 11.3 78 8 8 M8X22 40.2 4.1 1.24
PL050X065TF 45 62 70 78 92 86 2060 210 82.3 8400 107 10.9 74 7.6 8 M8X22 40.2 4.1 1.4
